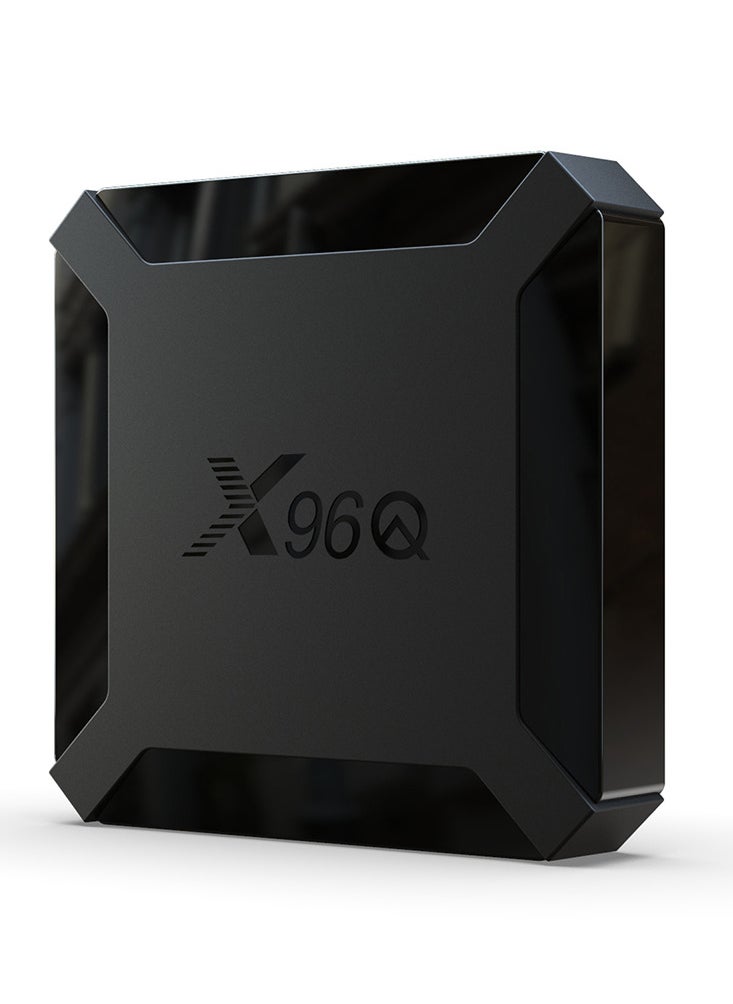

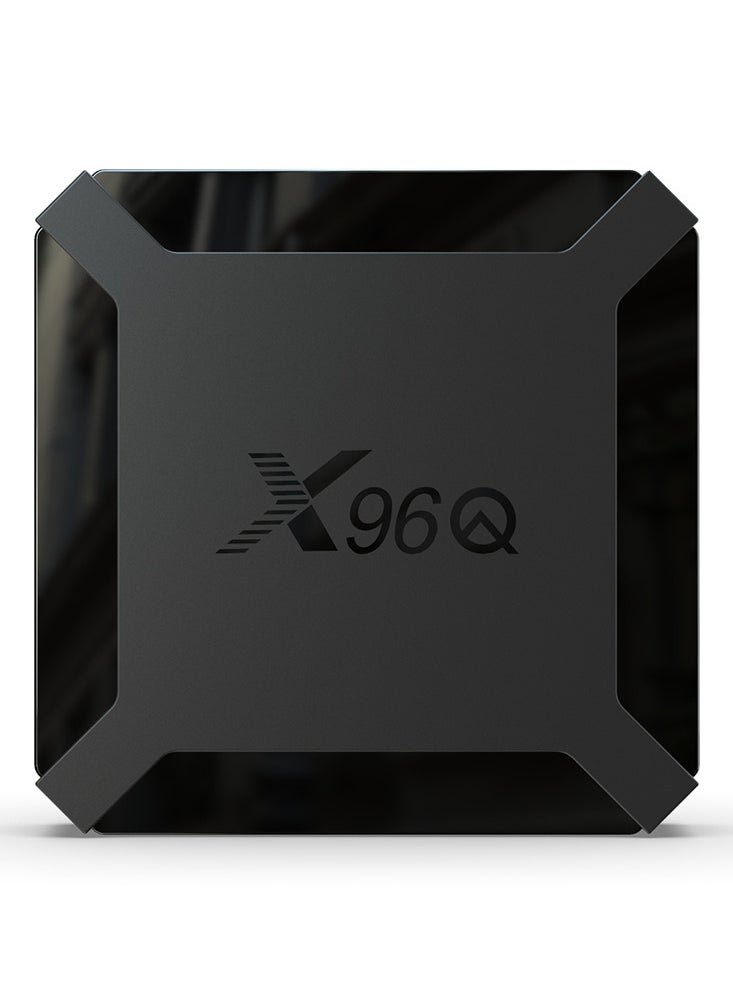

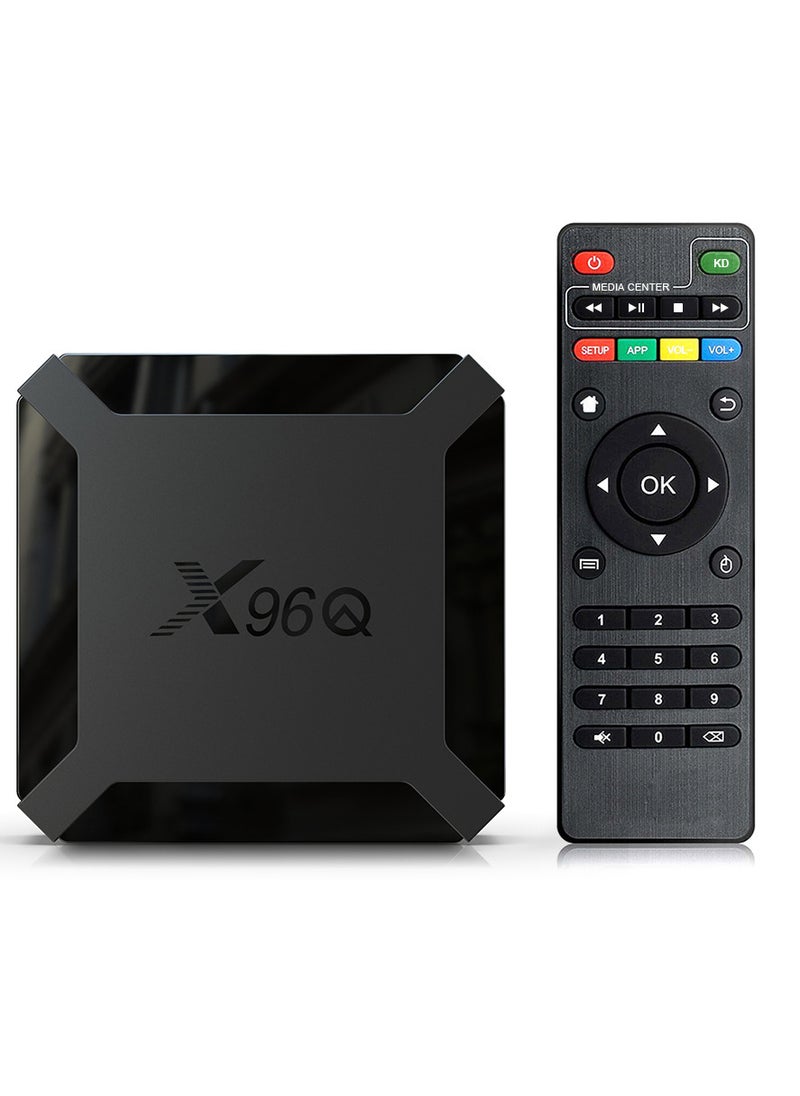

X96Q TV Box Android 10.0 Allwinner H313 Quad Core ARM Cortex A53 TV Set Top Box Support 4K 3D Media Player

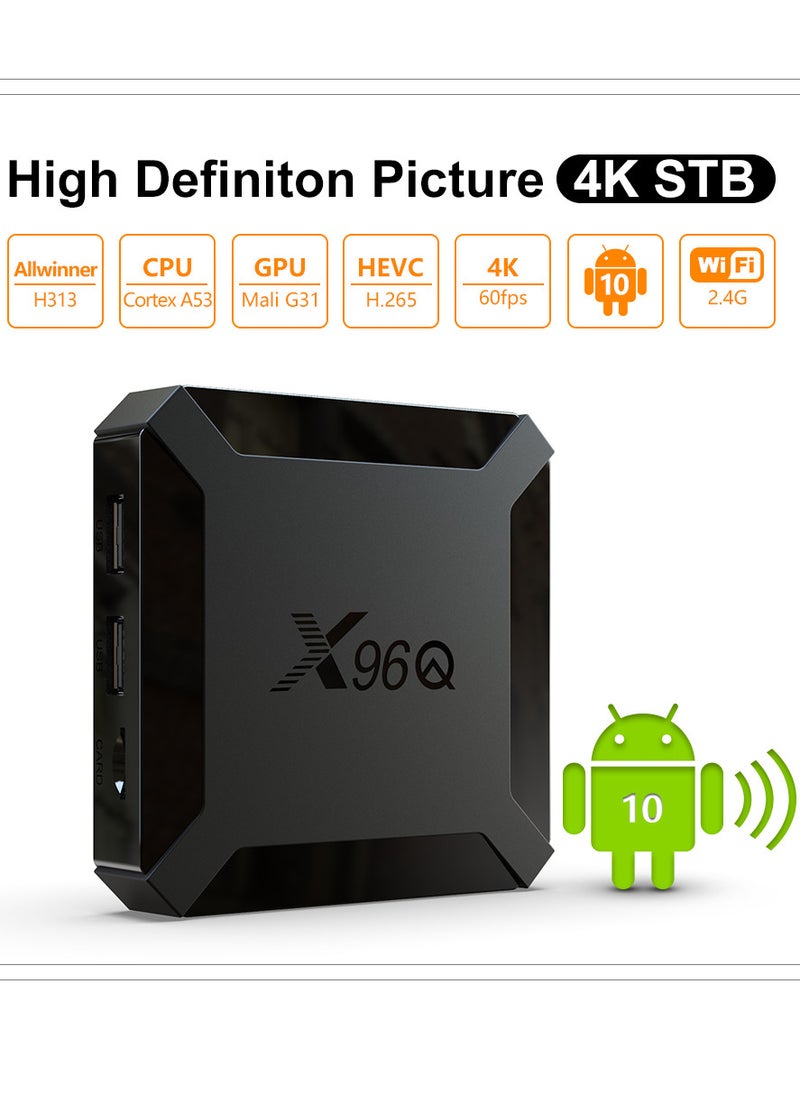

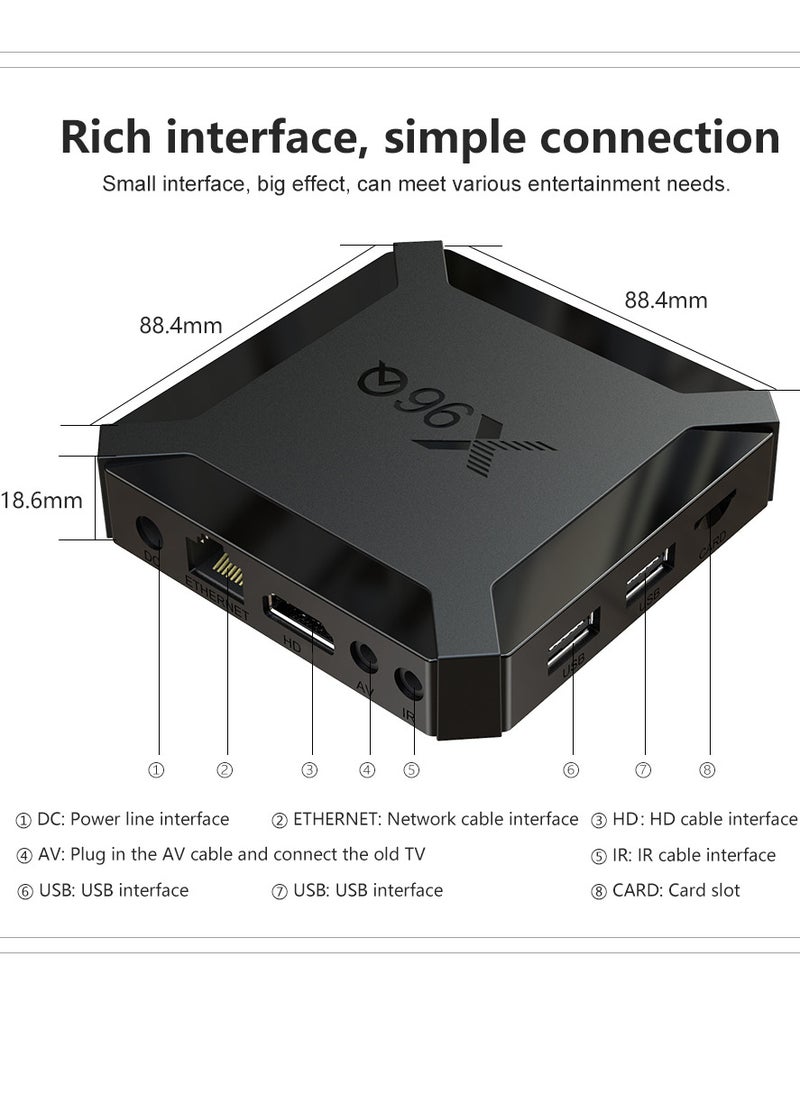

OverviewHighlights:OS: Android 10.0 CPU：Allwinner H313 Quad Core ARM Cortex A53 GPU：G31 OPenGL ES3.2 WiFi：IEEE 802.11 b/g/n Jack: 1 * HD, 1 * AV OUT, 2 * USB, 1 * IR Receiver, 1 * Ethernet Interface, 1 * TF CARD, 1 * DC Interface TF Card Memory: Support 4GB / 8GB / 16GB / 32GB / 64GB Power: DC 5V/2A VideoSupports video decoding up to 4K@60fpsSupports multi-formats:- H.265 Main10@L5.1 up to 4K@60fps- VP9 Profile 2 up to 4K@30fps- AVS2 JiZhun 10bit Profile up to 4K@30fps- H.264 BP/MP/HP@L4.2 up to 4K@30fps- H.263 BP up to 1080p@60fps- MPEG-4 SP/ASP@L5 up to 1080p@60fps- MPEG-2 MP/HL up to 1080p@60fps- MPEG-1 MP/HL up to 1080p@60fps- Xvid up to 1080p@60fps- Sorenson Spark up to 1080p@60fps- VP8 up to 1080p@60fps- AVS/AVS+ JiZhun Profile up to 1080p@60fps- WMV9/VC1 SP/MP/AP up to 1080p@60fps- JPEG HFIF file format up to 45MPPSH.264 BP/MP/HP• H.264 supports I/P frame, and only supports single reference frame• MJPEG/JPEG baseline• Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding• H.264 encoding capability: 1080p@60fps• JPEG snapshot performance of 1080p@60fps independently• Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to 100Mbit/s• Encoding of eight regions of interest(ROIs)AudioSupports MP3, AAC, WMA, RM, FLAC, OggBuilt-in serial digital audio SPDIF/IEC958 input/output and PCM input/output• Two DAC channels• Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)• One Audio HUB, supporting internal mixing function• Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode• I2S mode supports 8 channels, and 32-bit/192kbit sample rate• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate• One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs• Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphonesSpecifications:Model: X96QColor: BlackSupport DLNA functionSupport 2.4G wireless mouse / keyboardMemory:2GB+16GB Remote control battery information: 2 * AAA (not included)Package List:1 * TV Box1 * Power Adapter1 * IR Remote Control1 * HD Cable1 * User Manual (English)
