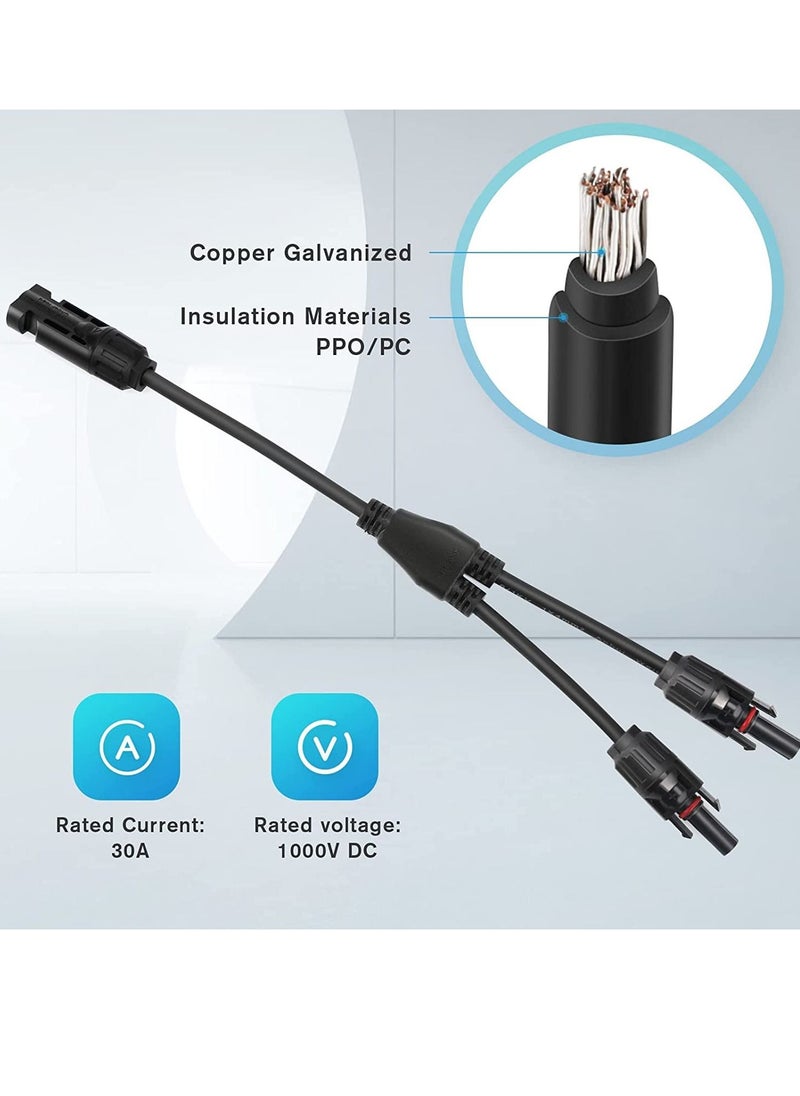

Highlights- 【High Quality Material】The conductor pins of Y branch parallel connector are tinned copper and are made of PPO+PC material. It has good anti-aging and anti-ultraviolet radiation ability, suitable for harsh environment.

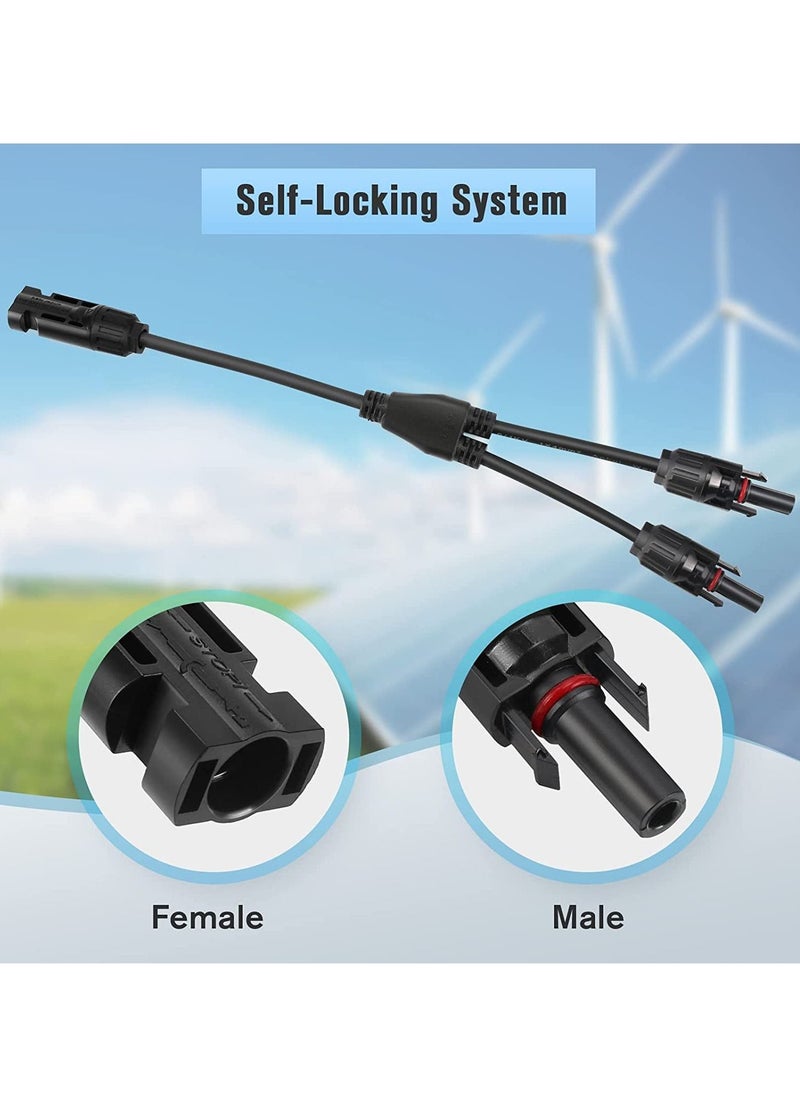

- 【Easy to Install】Y branch cable connector, easy to use. The plug and socket have a stable self-locking system, which is easy to plug and unplug, and can be easily assembled and disassembled.

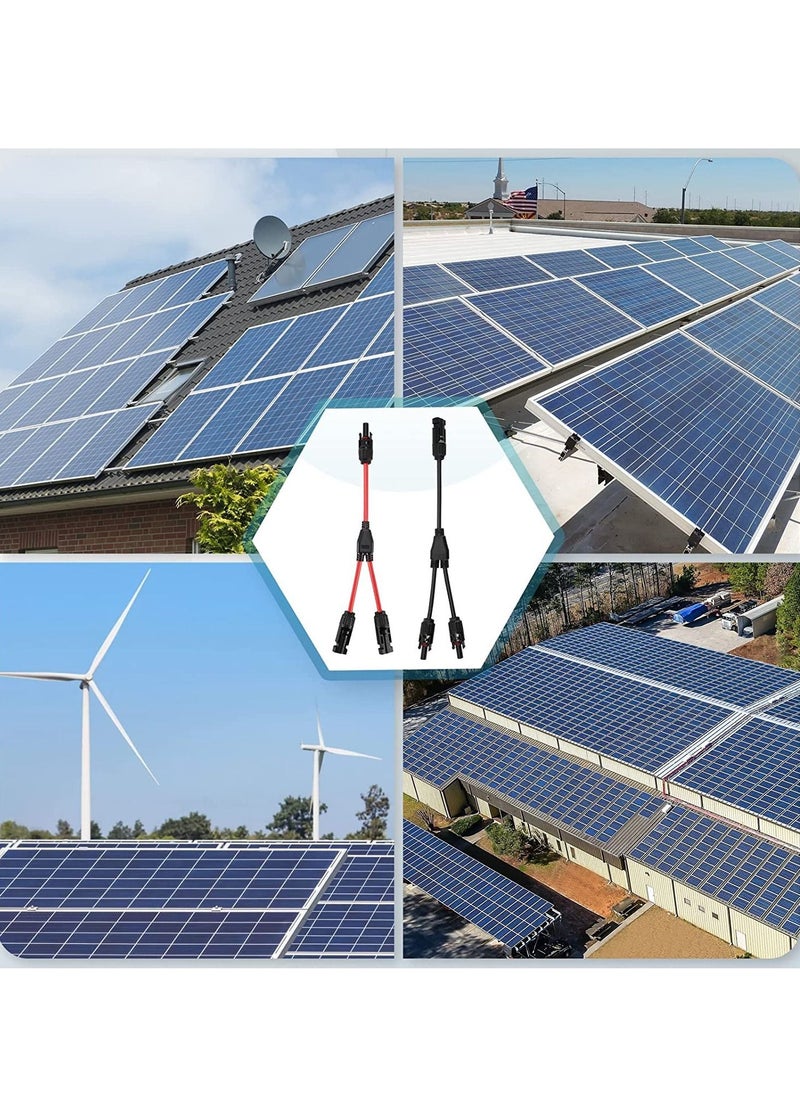

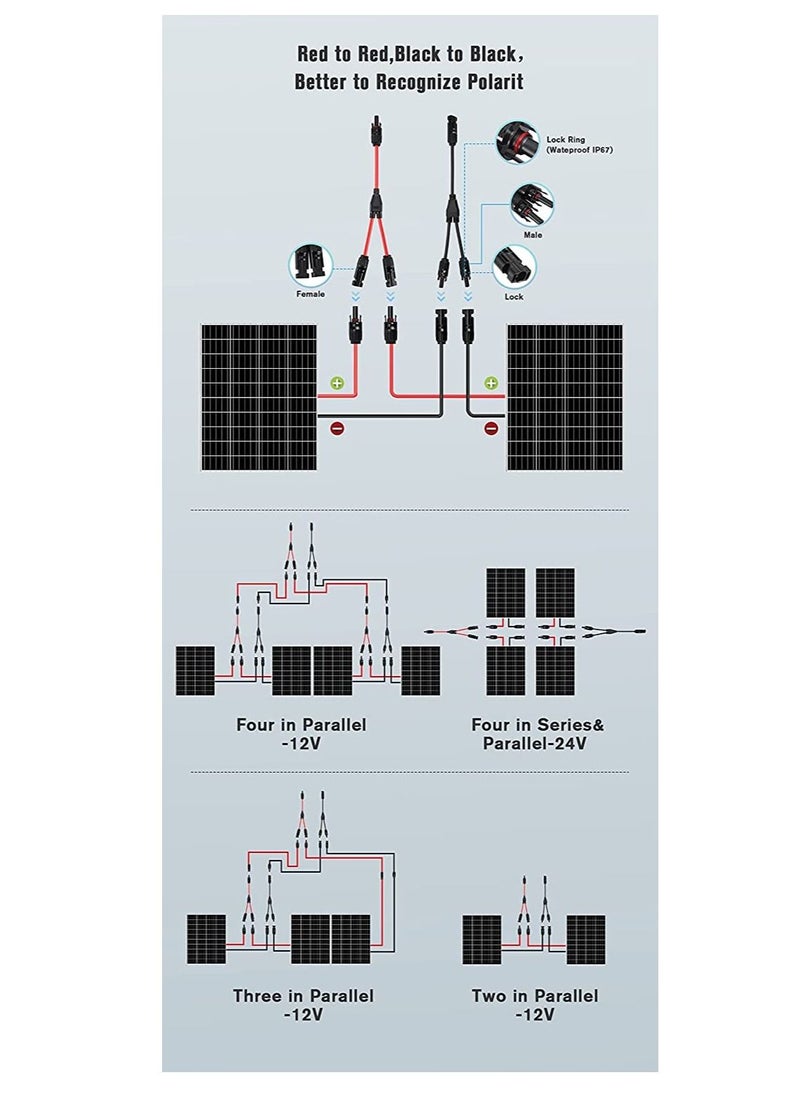

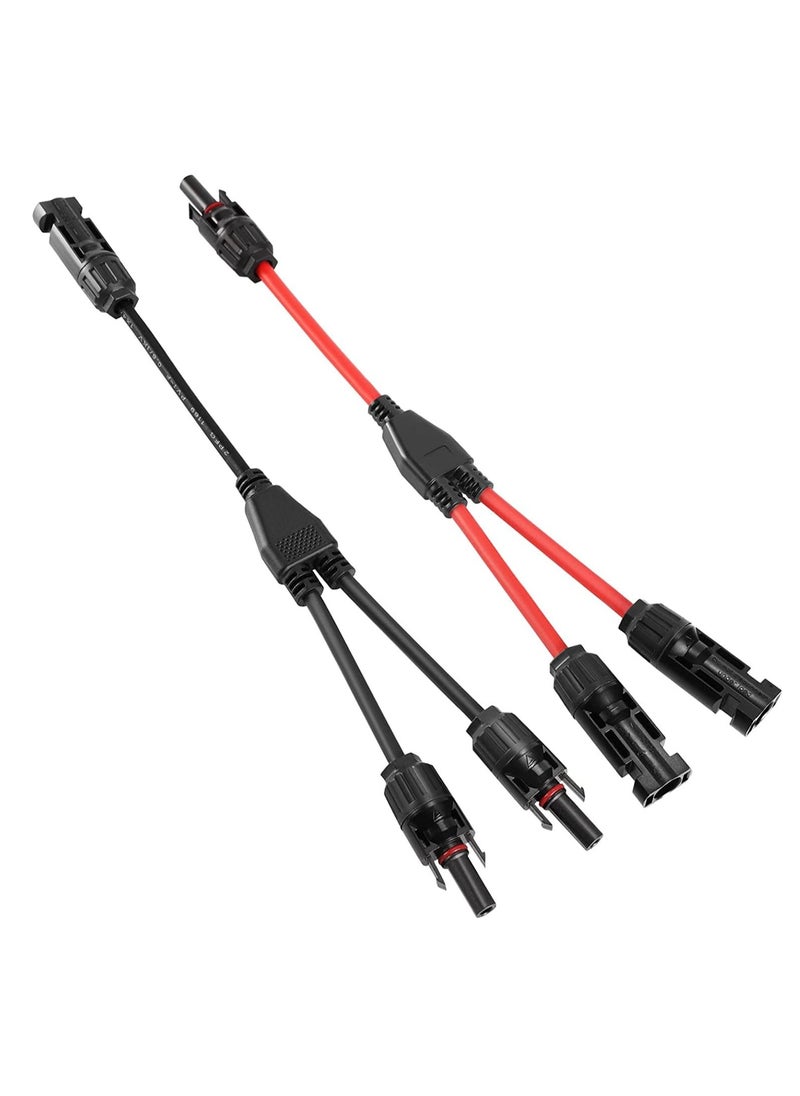

- 【Contacts Included】Thlevel Y cables (F/M/M) and (M/F/F) are used to complete solar panel (PV) arrays, usually for parallel applications. Red to red, black to black.
- 【Rated Current】 30A; Rated voltage: DC 1000V. Operating temperature range: ﹣40℃~+90℃. Fireproof, low contact resistance. Waterproof and prevent dust accumulation.
- 【Package Contents】1 Pair Y Photovoltaic Connector. Good load capacity, large current and high voltage. Good abrasion resistance and high flexibility.
OverviewSpecification:
Insulation material: PPO/PC
Rated current: 30A (4mm²).
Rated voltage: 1000V DC.
Contact resistance: ≤5mΩ
Insulation resistance: >500mΩ.
Conductor material: copper + tin plating.

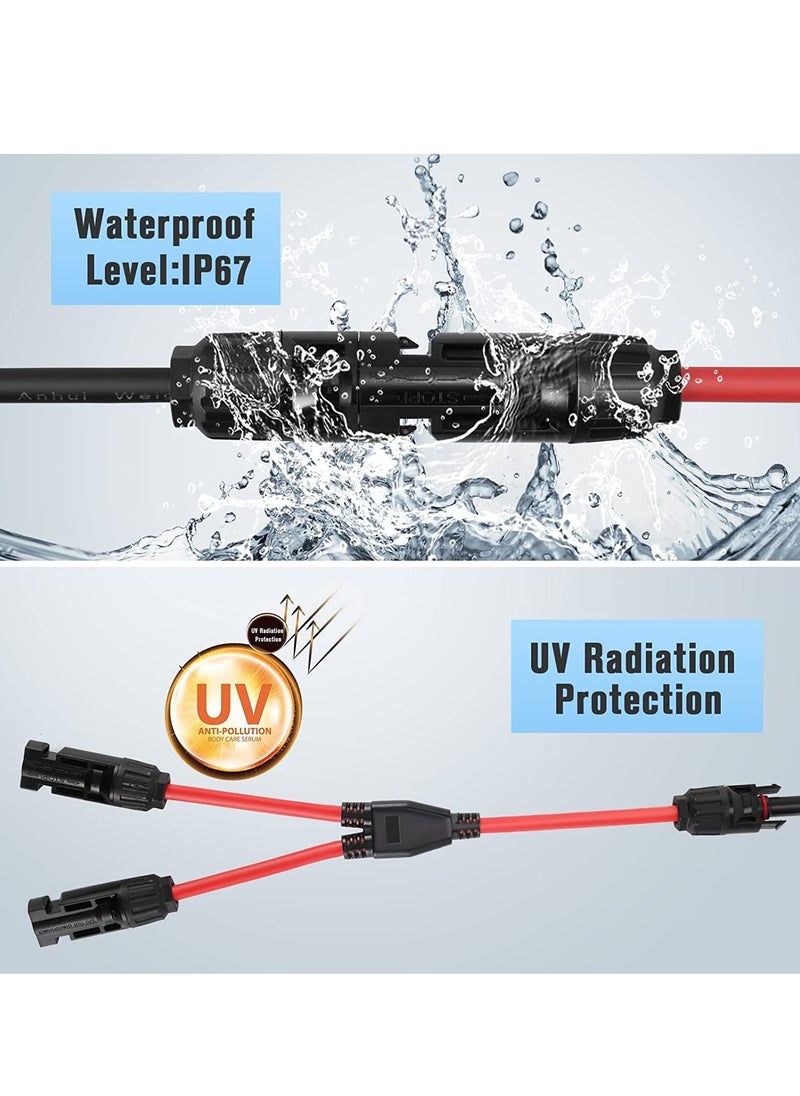

Protection class: IP67.
Flammability class: UL-94-V0.

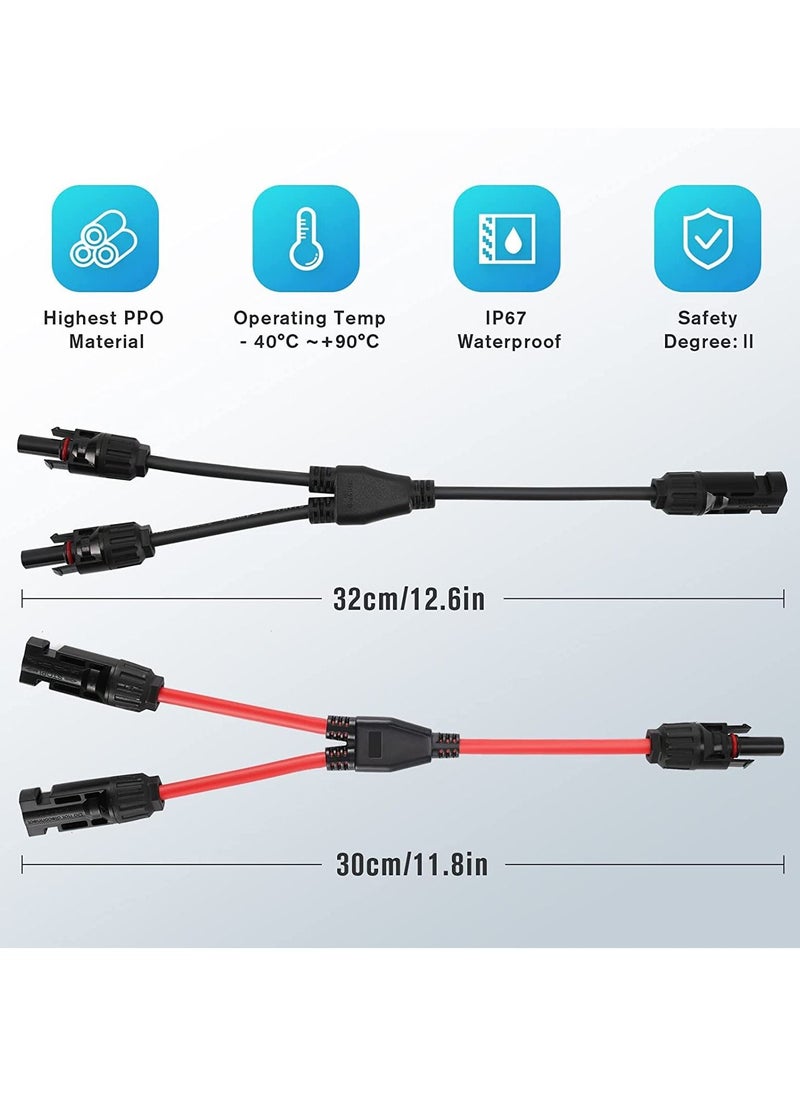

Operating temperature range: -40°C to +90°C.
Wire size: 2.5mm² ~ 6.0mm² /14AWG ~ 10AWG.
