Features:
【DC 12V-24V】 Please check whether your power supply is a DC power supply before purchasing (this product is only suitable for DC power supply, not for AC power supply).
【Upgraded Led Dimmer】: 0%-100% stepless dimming, easy adjustment of brightness through touch remote control to meet different preferences and needs.
【Memory Function】The LED dimmer switch has a memory function so that it retains the last dimming level after switching on via the wall switch.
【Wireless RF Remote Control】The LED string lights dimmer comes with a RF remote control, which supports up to 65FT long range control with strong and stable signal transmission.
Specifications:
● Working temperature：-20℃~+60℃
● Supply Voltage：DC5V, 12V, 24V available（Please specify the voltage when place order）
● Output：3 single color channels N-MOS Drain open output in parallel

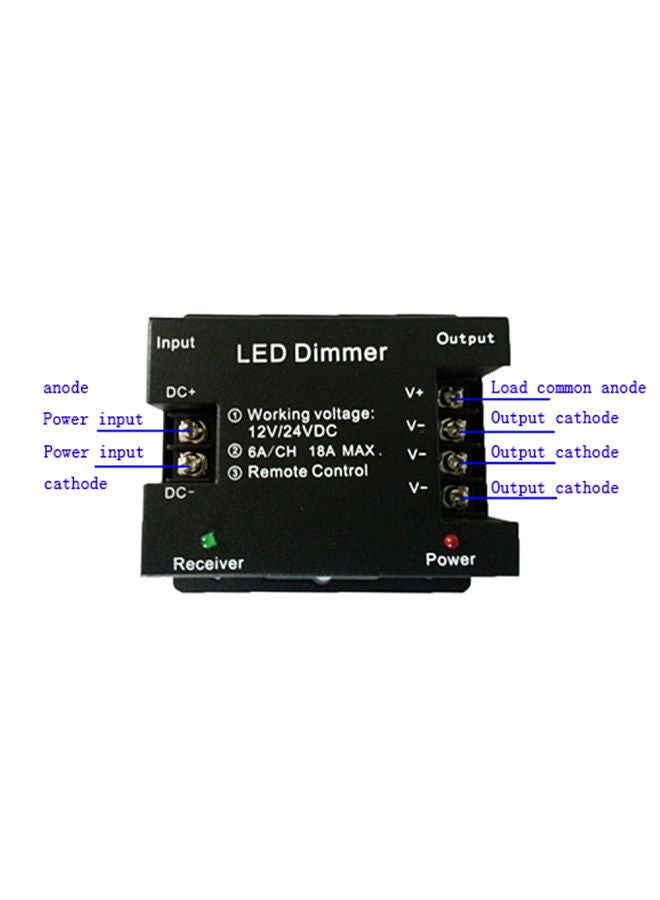

● Connection mode：common anode

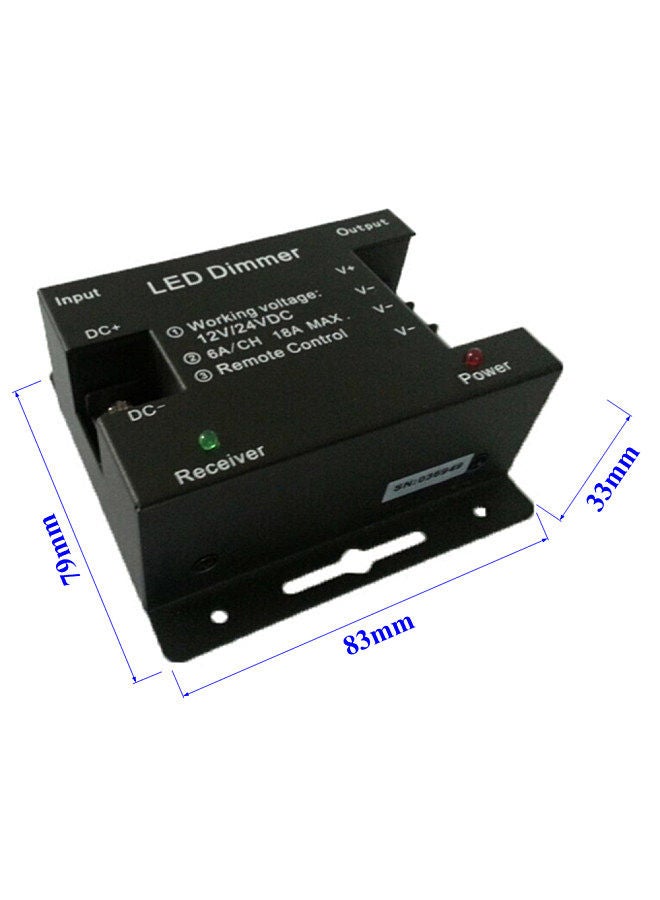

● controller dimension：L83×W79×H33 mm
● Package size：L205×W134×H47mm
● Net Weight：227g
● Gross Weight：379g
● Static power consumption：<1W
● Output current：<18A(each channel)
● Output power：5V:<90W, 12V:<216W, 24V:<432W

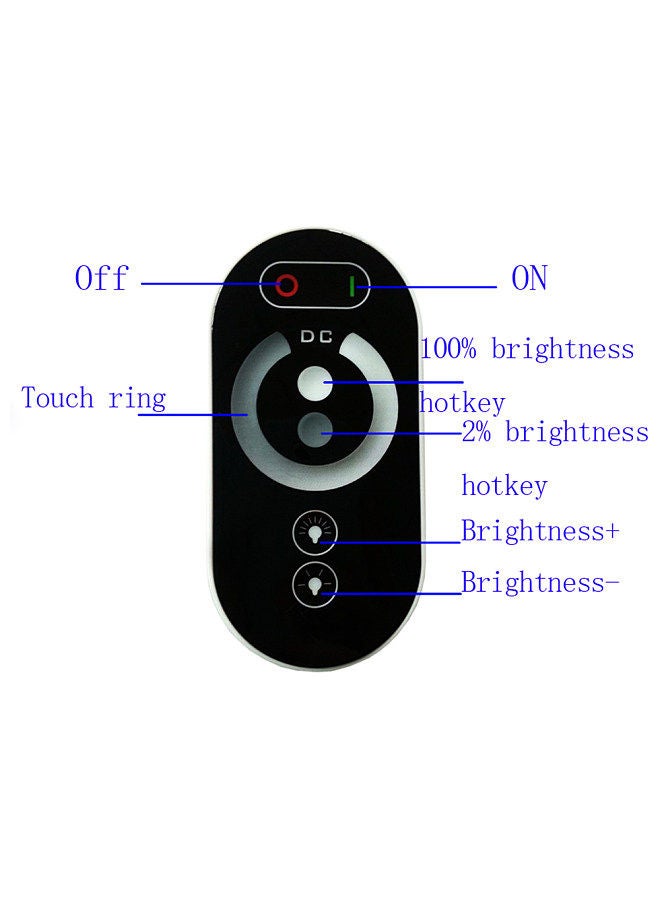

Romoter
● Working temperature：-30℃~+60℃
● Power supply mode：3pcs NO.7 Battery
● Supply voltage：3V
● Static power consumption：<0.09mW
● Remote-controlled distance：>20M
Package List:
1 * LED Light Dimmer
1*Remote Control(3xAAA batteries not included)
1*User Manual
