جهاز إرسال واستقبال بلوتوث RF من نوع HC-05، Rs232 Master Slave - 6 دبابيس

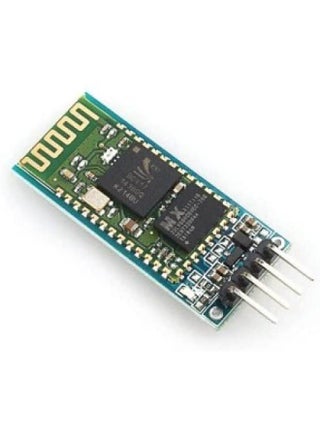

HC-05 module is an easy to use Bluetooth SPP (Serial Port Protocol) module, designed for transparent wireless serial connection setup. Serial port Bluetooth module is fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth system with CMOS technology and with AFH(AdaptiveFrequency Hopping Feature). It has the footprint as small as 2.7mmx27mm. Hope it will simplifyyour overall design/development cycle. Hardware features Typical -80dBm sensitivity Up to +4dBm RF transmit power Low Power 1.8V Operation, 1.8 to 3.6V I/O PIO control UART interface with programmable baud rate With integrated antenna With edge connector.
