Description:

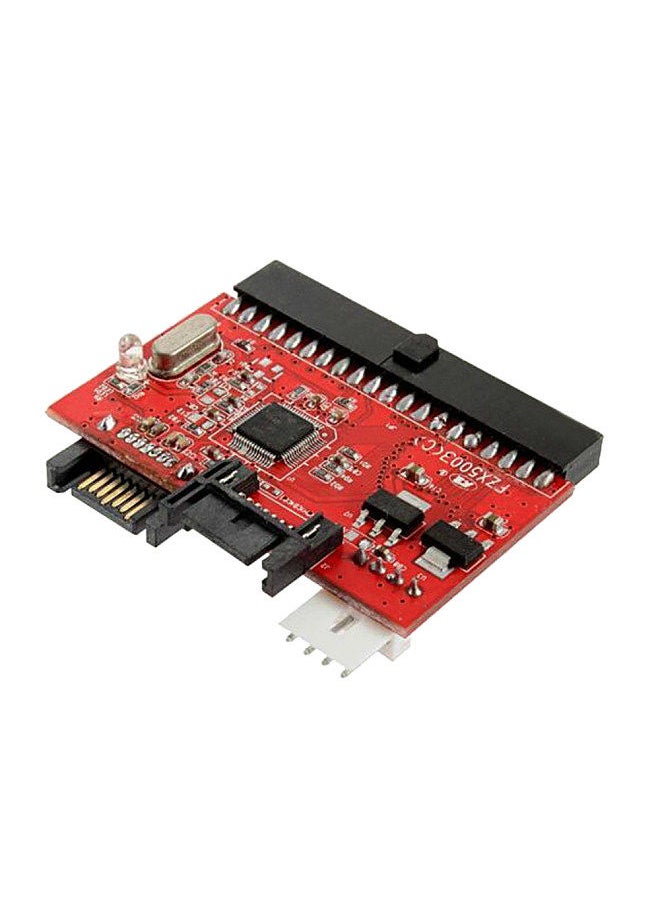

NEW IDE HDD to SATA Serial ATA Converter Adapter
This Adapter Does it All, SATA Hard Drive To IDE Converter or IDE Drive to SATA Host Converter. This is a Bi-Direction converter for serial and parallel ATA translation.
It includes the Serial ATA PHY , Link, Transport and Parallel ATA (application layer) controller.
The Serial ATA physical, link and transport layers are compliant to serial ATA I/II .
This Converter support a 3GHz Data Rate.
With LED indicated Power.
Easy install & no Driver Needed.
Serial ATA 1.0/2.0 Specification Compliant.
Automatic Serial ATA 1.5 Gbps Speed negotiation.
ATA /ATAPI PIO mode 0 to 4.
ATA / ATAPI Ultra DMA of Transfer rate 16.7 , 25, 33, 48, 66, 100, 133 , 150, 300MB/s.
ATA /ATAPI LBA48 addressing node associated with 2-byte sector count.
Support Serial ATA hot-Plug.
Ultra low power Consumption.
Work for both AC and DC couple between the transmitter and the receiver.
Provide Specified OOB signal detection and Transmission.
Support Spread Spectrum Clocking to reduce EMI.
Support Partial / Slumber Power Management.
Provide adjustable TX signal amplitude and pre-emphasis level.
Slave Support.
Support for Windows 98/SE/ME/2000/XP/Vista.
Package List:

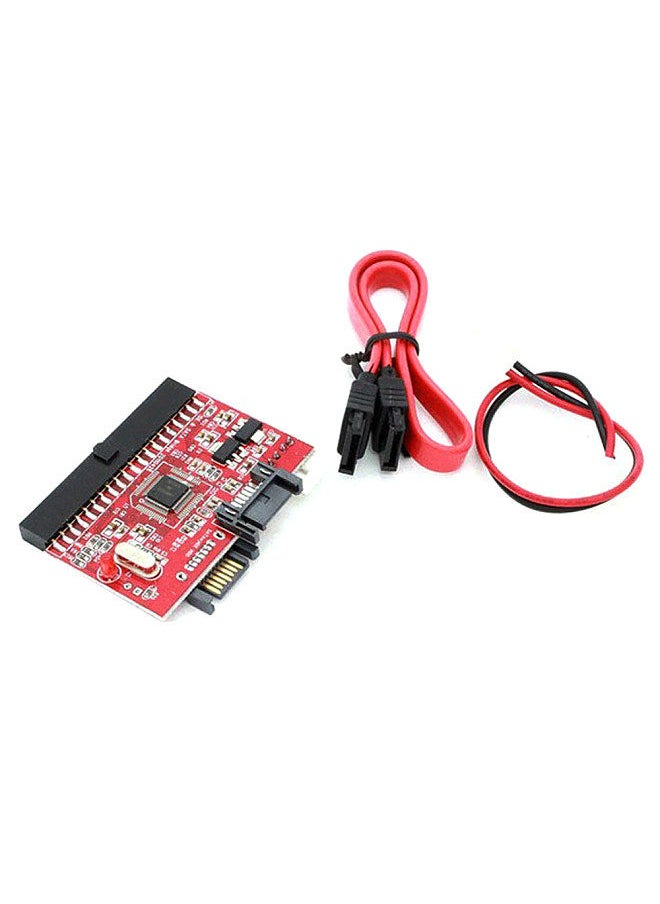

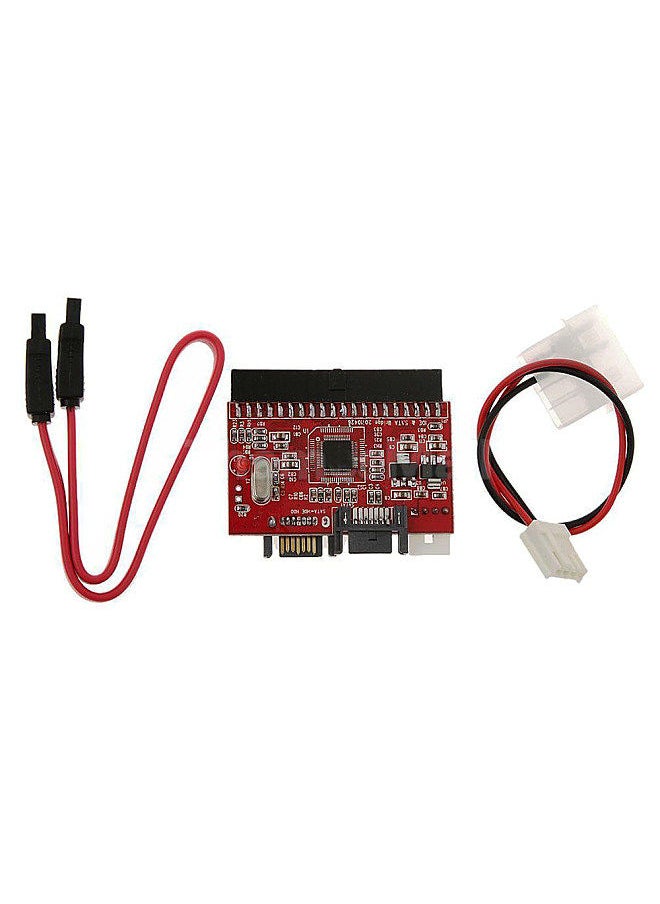

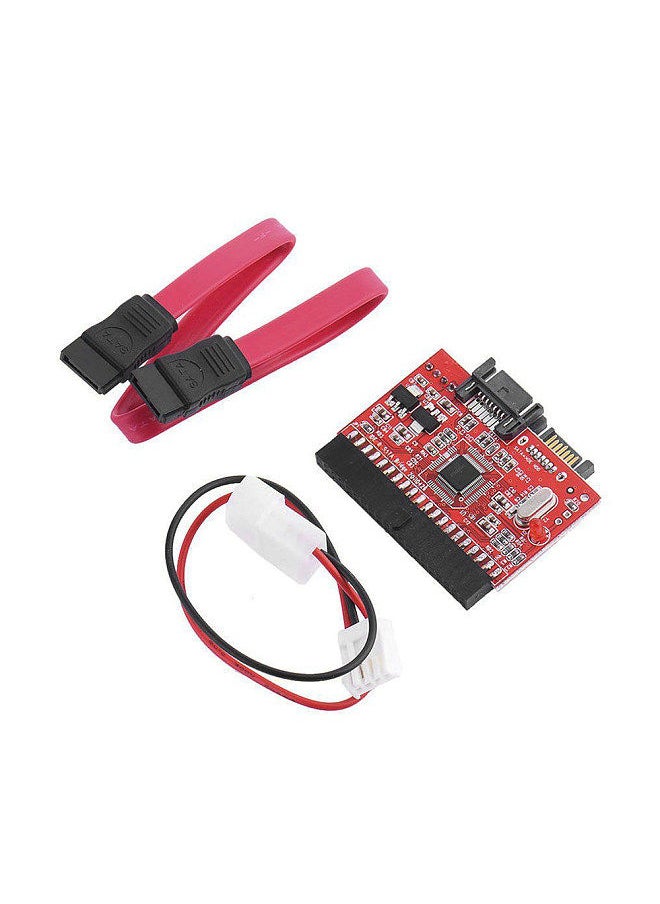

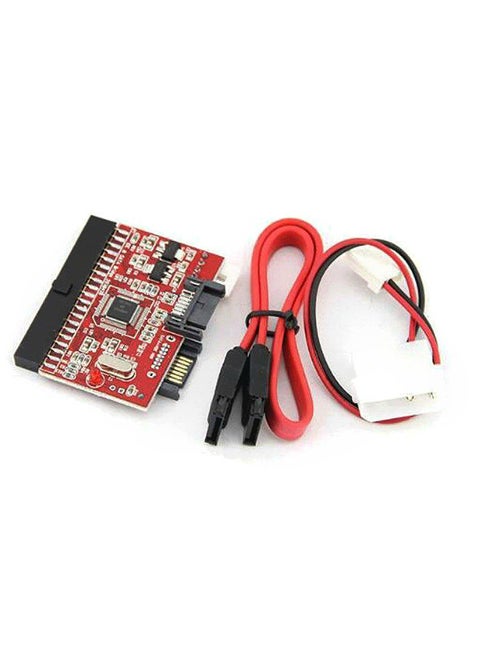

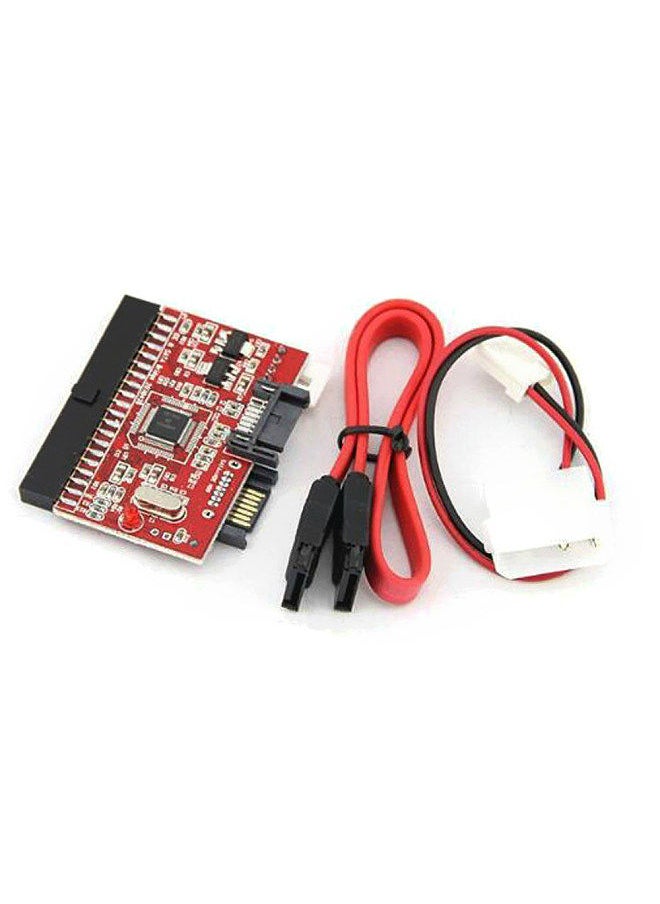

1 * IDE to SATA Converter
1 * SATA Cable
1 * Power Cable
