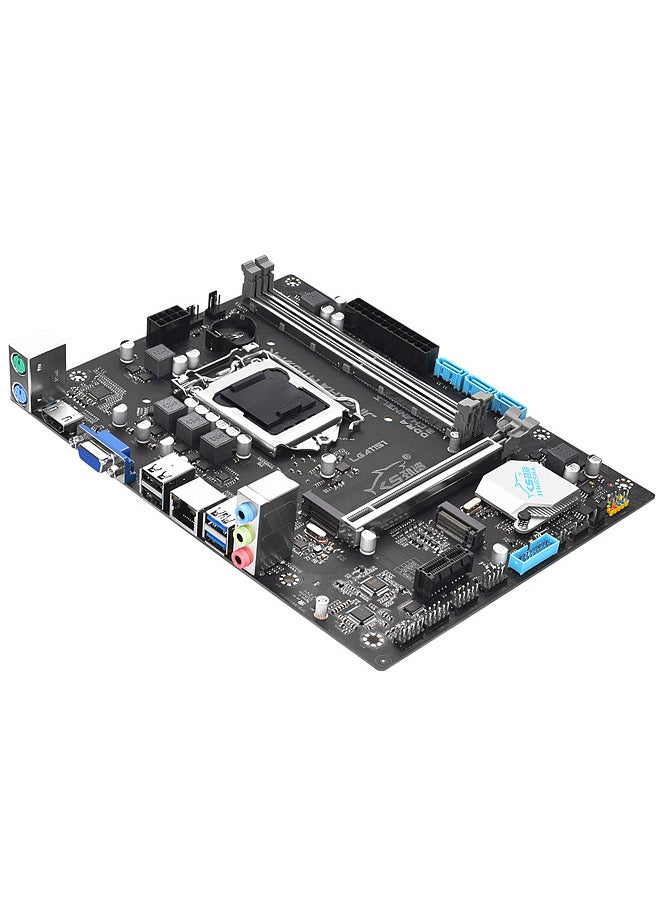

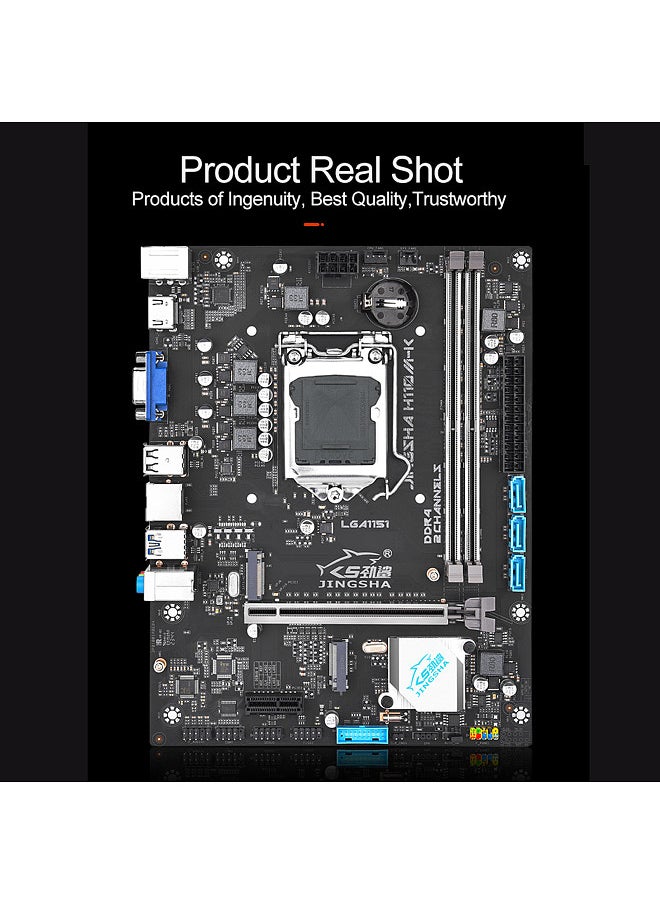

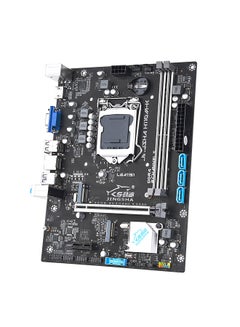

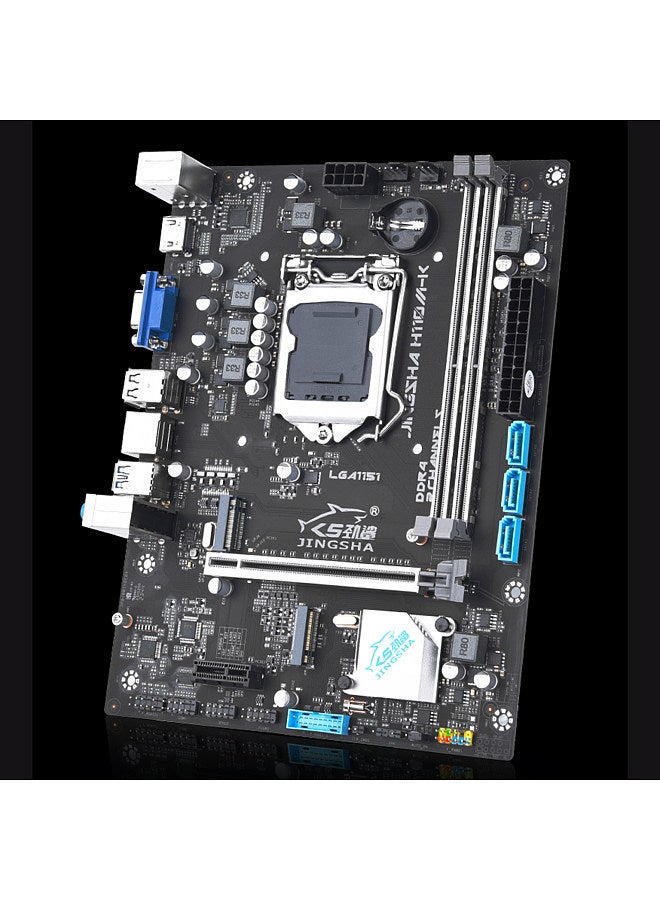

الميزات الأساسية- High Performance: The motherboard supports Intel Socket LGA1151 CPU, supports 1151 chipset, provides a high cost-effective solution, and has better performance.
- Large Memory: 2*DDR4 memory slots, supporting up to 32GB, greatly improving the performance of the motherboard, meeting the running needs of large games and professional software.
- High-speed Interface: Full-speed M.2 NVMe, M.2 NGFF interface, M.2 supports high-speed data transmission, stable and fast, making the system run more smoothly.
- High Bandwidth: 1*PCIE3.0 x16 slot, higher bandwidth, lower latency, providing a better gaming experience.
- Fast Network: 1*Gigabit Ethernet, providing fast network connection, meeting the needs of high-speed network.
نظرة عامةSpecification:
Color: Black
Material: Metal
Processor: intel Socket L GA1151 CPU
Chipset: support 1151 chipset
Display: 1*HDMI 4K/30Hz , 1*VGA 1920x1080/60 Hz
Memory: 2*UDIMM DDR4 1600/1 866/2133/2400/2666MHz(Base on CPU) ,Dual channel，Up to 32GB
Storage: 3*SATA3.0 Port, 1*M.2 2280 NVMe x4 2.0 Port, 1*M.2 2280 NGFF SATA3.0 Protocol SSD Port
USB: 4*USB2.0 Ports, 4*USB3.0 Ports
LAN: 1*RTL8111H, 1000Mbps Ethernet
Audio: ALC897 5.1 Channel HD Audio Chip
BIOS: AMI EFI BIOS

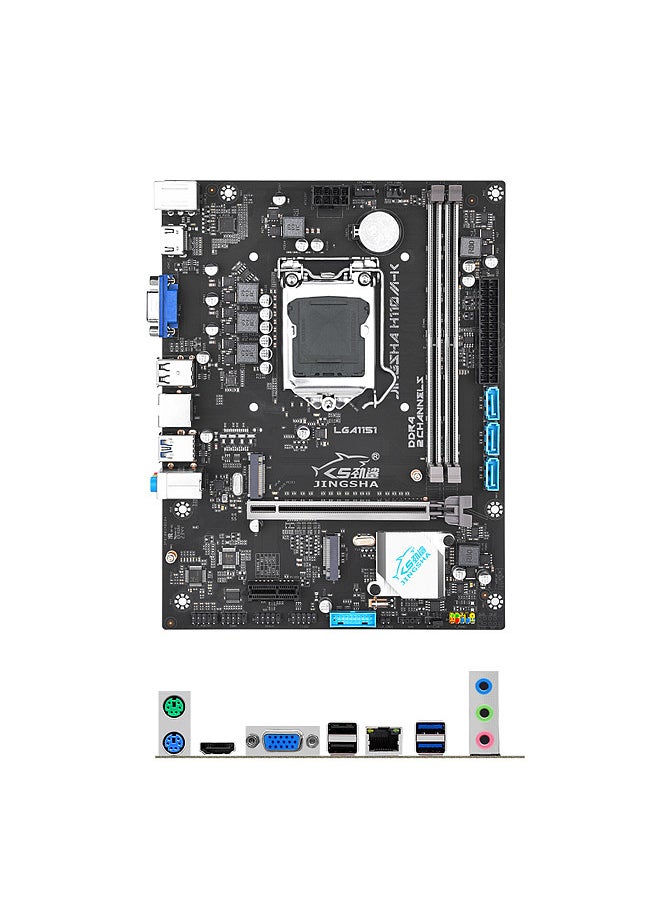

Back Panel connectors: 1*HDMI, 1*VGA, 2*USB3.0 Ports, 2*USB2.0 Ports, 1*RJ45 LAN Port, 1*Audio 3-in-1(Line -out/Line in/MIC), 1*PS/2 Keyboard, 1*PS/2 Mouse
Other Onboard connectors: 1*4pin CPU Smart FAN header, 1*SYS FANheader, 1*Front Audio header, 1*USB3.0 header (for two USB3.0 ports), 1*USB2.0 header(for two USB2.0 ports), 1*RS232 COM header, 1*Front control panel header, 1*Speaker
header, 1*CMOS header, 1*power on header, 1 *24pin ATX connector, 1 *8pin 12V connector
Expansion slot: 1*PCIE3.0x16 slot, 1*PCIE3.0x1 slot
From factor: Micro-ATX 223mm* 170mm
Package size: 218*194*53mm
Package weigh: 900g
Package list:
1* Motherboard
1* SATA Cable
1* Motherboard Baffle
