جهاز اختبار كابل الشبكة، جهاز اختبار كابل محمول باليد مزود بشاشة، جهاز اختبار طول الكابل متعدد الوظائف لـ CAT5 وCAT6 وLAN وجهاز اختبار POE (NF-8209S)

معذرة! هذا المنتج غير متوفر.

نظرة عامة على المنتج

الميزات الأساسية

LAN cable tester, OPM, VFL and NCV combined on ONE tool. No more calls,no more costs, find and fix it by yourself.
Test whether the crystal head of the 8-core cable is pressed well, and the identification length is at least 0.32 feet.
Network cable length breakpoint test, no calibration required, The length of the network cable must be between 2.5-200 meters (8.2-656FT). RJ45 cable tester for testing cross, short circuit, open circuit,
Testing the power supply voltage and POE standard/non-standard, Quickly Find Network Cables on Switch/Router.

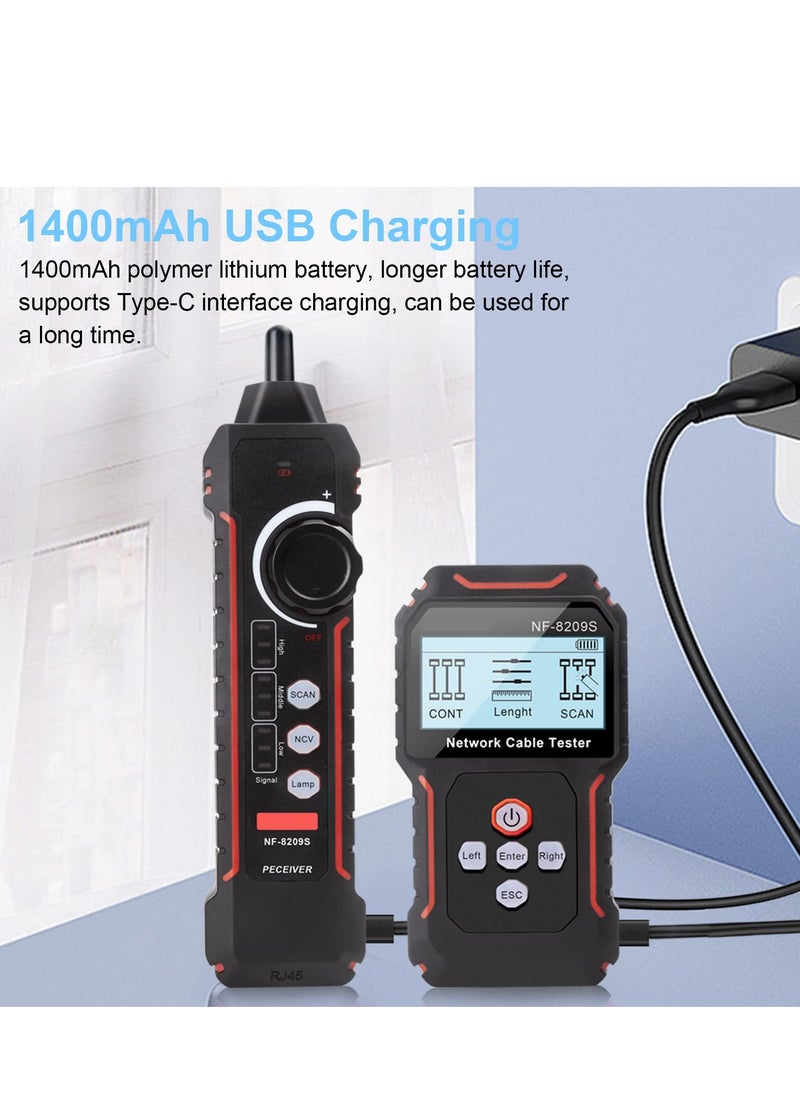

Testing the AC Voltage , range 70v-1000v 50/60Hz, with the USB 1400mAh charging. Normal mode/anti-jamming mode, two mode for your choice.

نظرة عامة

► ► Welcome to our shop ◄ ◄

? Why choose our Network Cable Tester ?

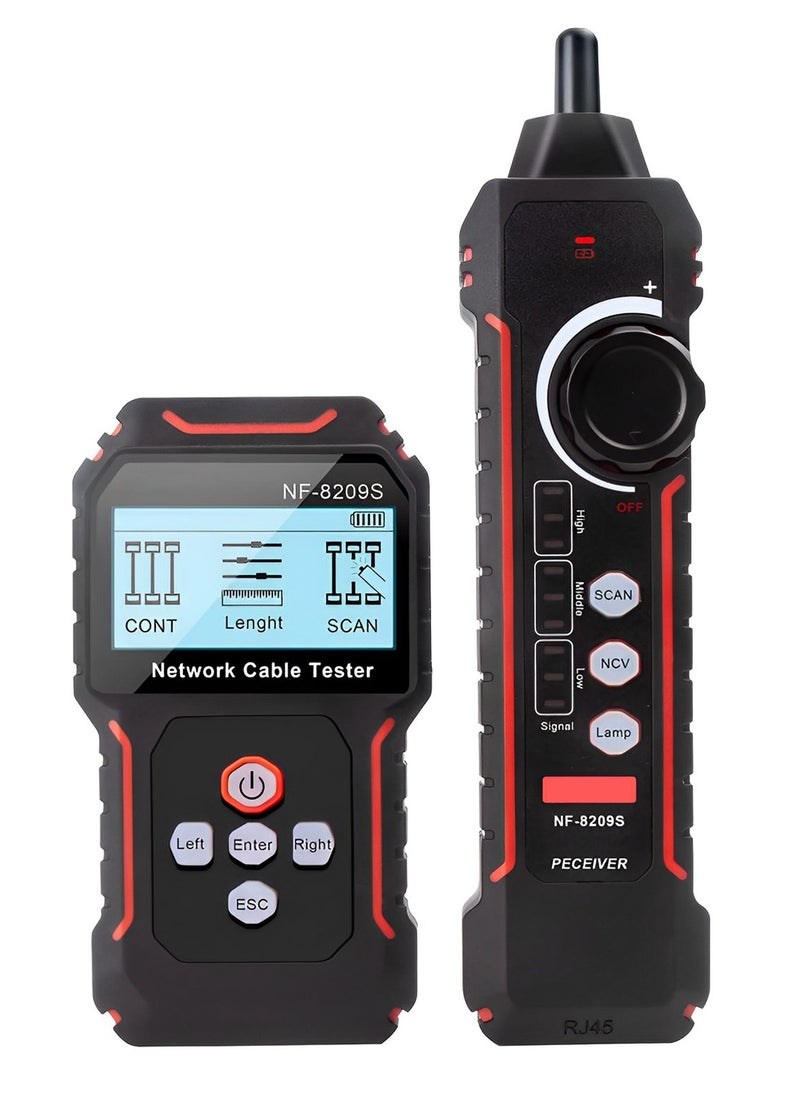

NF-8209S network cable tester, a new anti-interference hunting solution using digital Signal receiving and decoding technology, higher anti-interference degree, more accurate, eliminate false alarms.

At the same time, it has the functions of common/anti-interference continuity test, cable scan , length test, POE test, port flashing, line pressure test, NCV induction pen, etc.

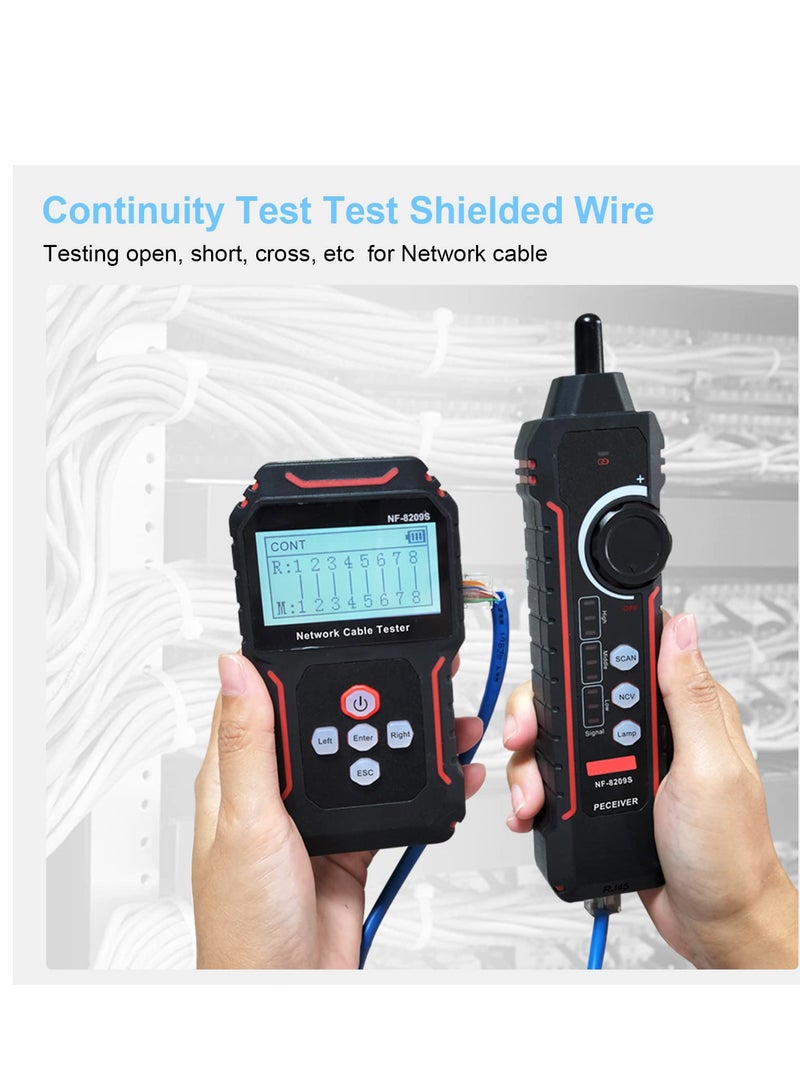

Continuity Test

Test network cable continuity, shorted, broken, cross

Cable Scan

Quickly trace UTP/STP cable, and has Digital / Analog mode

Port Flash

Quickly and exactly find out the target cable port to improve work efficiency

PoE testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard)

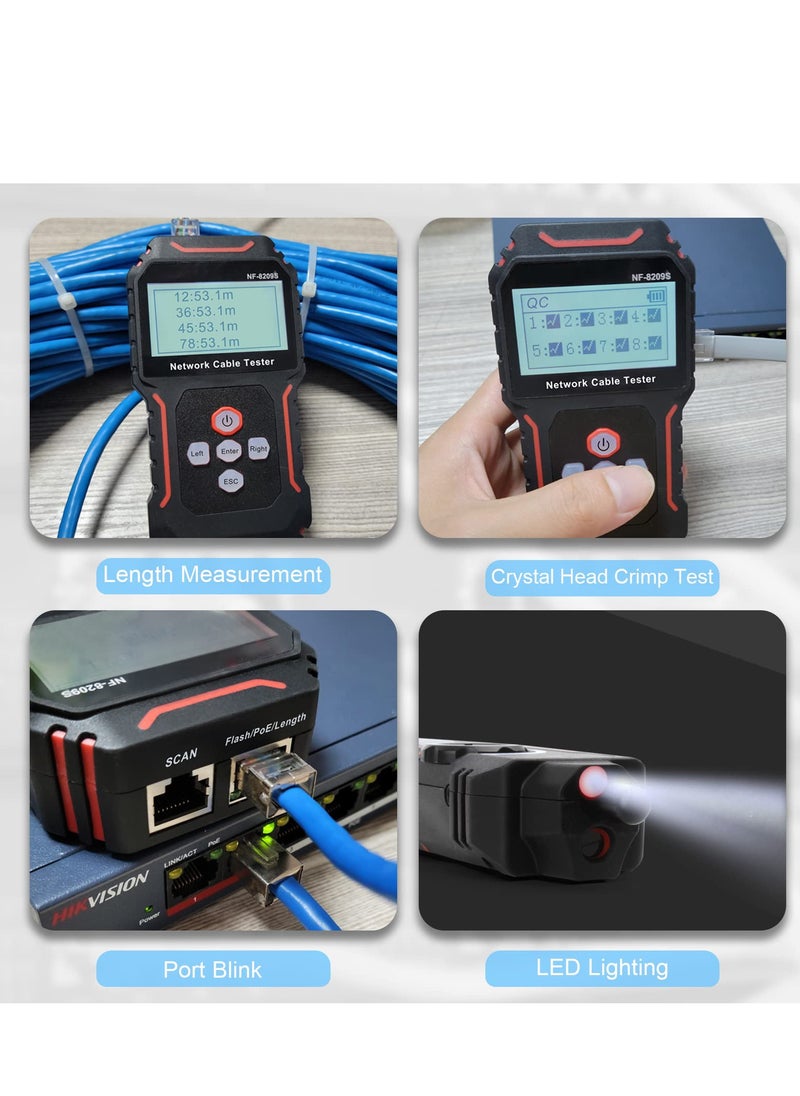

Measure cable length accurately, the range is 200m

Two scan modes selectable: AC filter & Non AC filter

Test physical status for STP, UTP lan cable

Hub blink for locating network port by the flashing port light on Hub / Switch

QC Test
