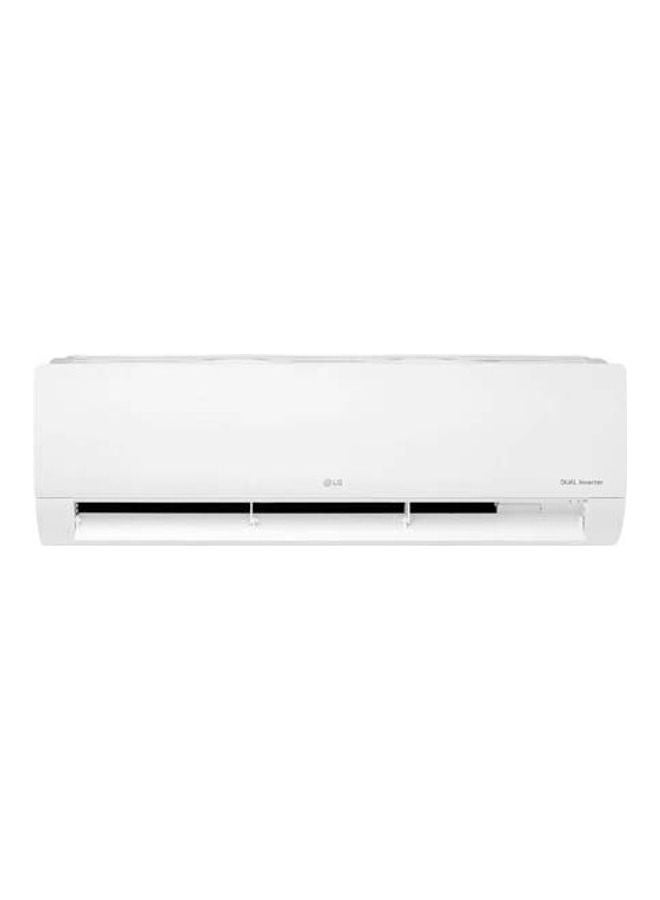

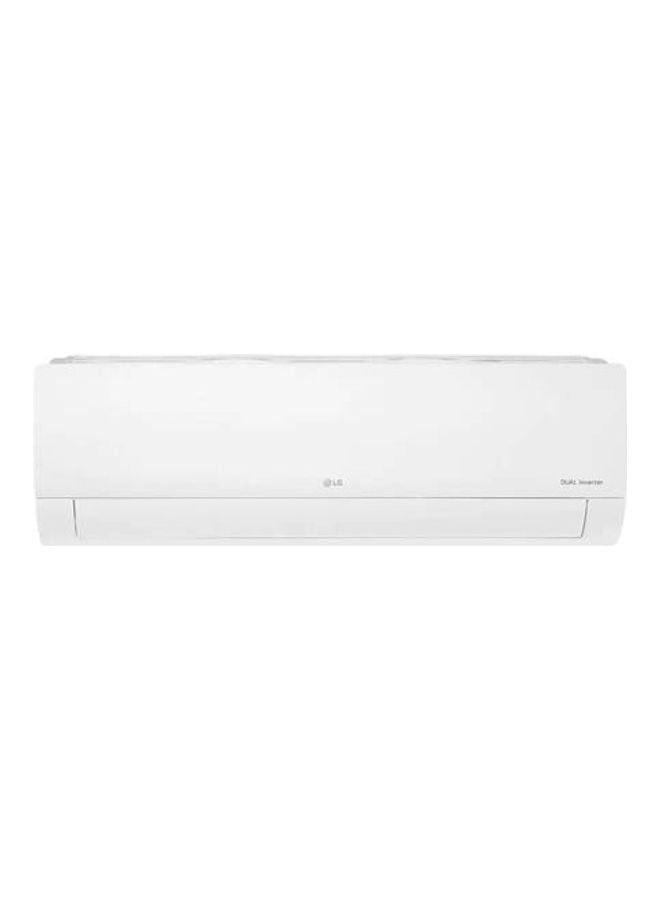

تكييف كومبرسور انفرتر مزدوج اس تي دي 1.5 حصان، بارد فقط

نظرة عامةGENERAL SPECIFICATIONS Cooling Capacity (Min ~ Rated ~ Maximum) 0.8 ~ 3.33 ~ 3.87 kW 3,000 ~ 12,000 ~ 13,200 Btu/hrPower Input - Cooling (Min ~ Rated ~ Max) 140 ~ 1,200 ~ 1,300 W Operating Current - Cooling (Min ~ Rated ~ Max) 0.80 ~ 6.60 ~ 7.20 amperesEER 11.01 (Btu/hr)/W 3.23 W/W energy label rating +++AAvailable voltage range 276 ~ 187 V power supply 1, 220, 50 Ø, volts, HzAvailable voltage range 187 ~ 276 V Power Factor - Cooling 80%Indoor - Air Flow Rate (Cooling, Max/H/M/L) 20/15.2/13.5/8 m³/min Indoor - Sound Pressure Level (Cooling, Max/H/M/L/Slow) 42/36/28/21 dB(A)Indoor - Dimensions (W x H x D) (Net) 837 x 308 x 189 mm Indoor - Dimensions (W x H x D) (Shipping) 882 x 385 x 253 mmIndoor - Weight (Net) 8.5 kg Indoor - Weight (Shipping) 11.0 kgOutdoors - Sound Pressure Level (Cooling, Rated) 51 dB(A) Open Spaces - Dimensions (W x H x D) (Net) 717 x 483 x 230 mmOpen Spaces - Dimensions (W x H x D) (Shipping) 836 x 321 x 540 mm Outdoors - Weight (Net) 25.5 kgOpen Spaces - Weight (Shipping) 30.5 kg Compressor - Type double rotorCompressor - Engine Type Brushless DC motor Fan (Indoor) - Type Cross Flow FanFan (Indoor) - Motor Output 30 watts Fan (External) - Type propeller fanFan (External) - Motor Output 25 watts Heat Exchanger - Condenser (Material, Tube/Fin) copper/aluminumHeat Exchanger - Condenser (Corrosion Protection) golden circuit breaker 15 ampspower supply unit open spaces Piping - Volume (Liquid) 1/4 inchPipe - Volume (Gas) 3/8 inch Piping - Connection Method (Internal/External) glowing/glowingPiping - Drain Hose Size (OD, ID) 16.0, 21.5 mm Between Inner and Outer - Pipe Length (Min/Rated/Max) 3, 7.5, 15 pmBetween Inner and Outer - Pipe Length (No Charge) 3.5 m Between indoor and outdoor - maximum height difference 7 pmCoolant - Type R410A Refrigerated - Per Shipment 850 gCooler - Extra Charge 20 g/m Product type STD
