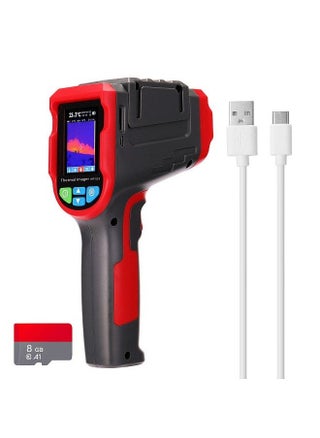

NOYAFANF-521 Industrial Thermal Imaging Equipment High Resolution Pixel Resolution 16 GB Memory Card Thermal Imaging Camera

Brand Name : Noyafa
Model Number : NF-521
Place of Origin : Shenzhen.China

Product description:
NF-521 has thermal imaging function and can display hot and cold spots on the screen, enabing users to oberve the object temperature changes more effectively. It helpls you to quickly lock the target area. The standard 16GB memory card can save a large number of images and data and generate high-quality infrared images, which is a useful tool for fault maintenance.

Main function:
1. 2-megapixel white lens
2. 2.4 TFT LCD Display
3. Temperature testing range: -10°C ~ 400°C
4. 32×32 pixel resolution, 33° Field of View
5. Merging visible and infrared image display
6. Chargeable Li-ion battery (charge by micro USB interface)

Technical indexes:
Infrared temperature measurement
 Temperature measurement range：-10~400℃
 Basic accuracy： ±2% or ±2.0℃
 Emissivity： adjustable 0.1~0.99
 Measuring resolution： 0.1℃
 Response time： 150ms
 Spectral band： 8~14um
Thermal imaging technique
 Thermal imaging resolution: 32*32（1024 pixels）
 Electronic shutter: No
 Visible light camera: 2 megapixels
 Display resolution: Thermal imaging, thermal mixing, digital camera
 Color palettes: Ironbow,iridescence ,Grayscale
 Infrared spectral bandwidth: 8~14μm
 FOV : 33° horizontal
 IFOV:18 mrad
 Thermal imaging sensitivity: 150mk
 Frame rate:≤9Hz
 Image format: BMP
General parameters
 Monitor  2.4 & rdquo; TFT LCD
 Display resolution: 320*240 pixels
 Battery:3.7V/2600mAh
 Automatic shutdown function: Yes
 Certification: CE
 SD card  8GB TF card
 Working temperature: -10℃~45℃
 Drop proof:2m
 Standard accessories: manual, USB cable, 16GB micro TF card
