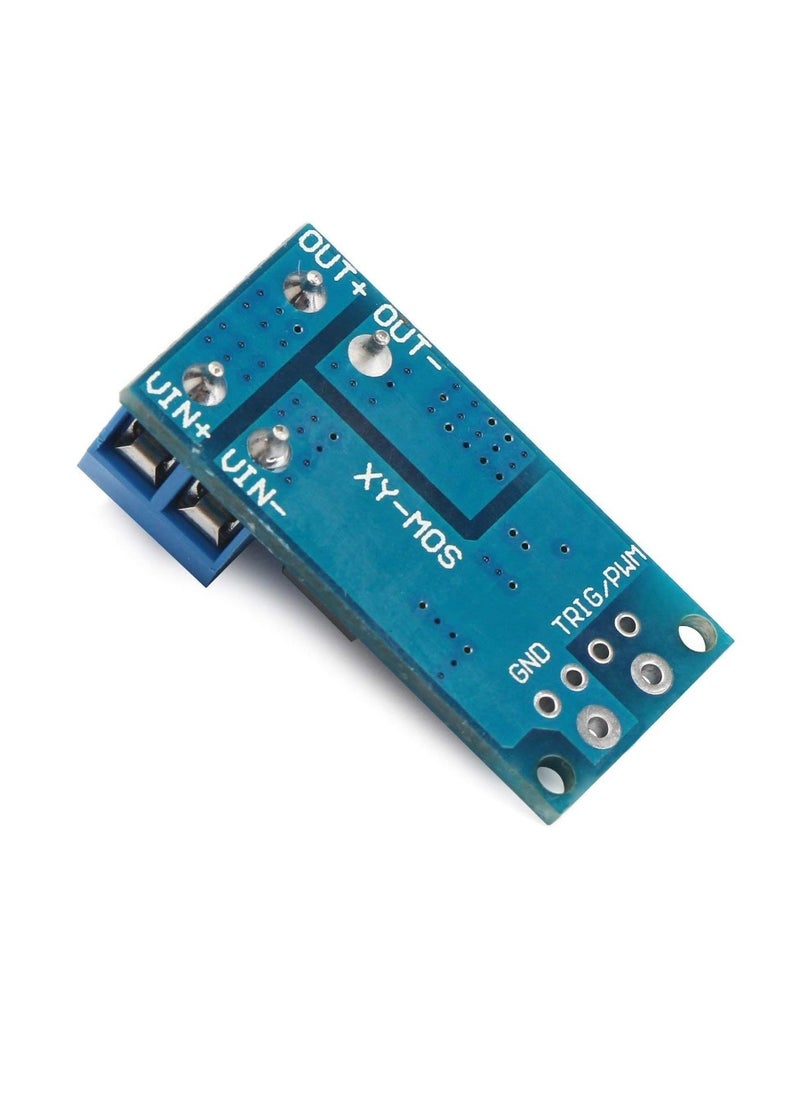

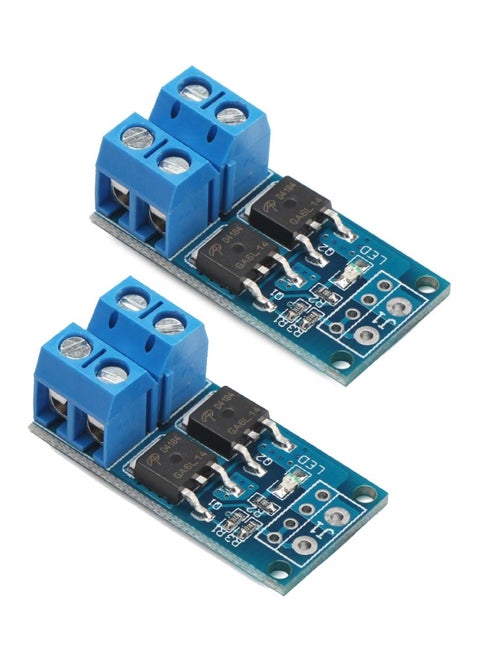

15A 400W DC 5V-36V Large Power Mosfet MOS FET Trigger Switch Driver Module

نظرة عامةHigh power MOS field effect tube trigger switch driver module PWM regulating electronic switch panel.

- Adopts imported large power dual-mos transistor parallel active output, lower resistance, higher current, and strong power.

- Perfect support PWM signal: the PWM controller can access the PWM signal, which can perfectly support the frequency of 0-20khz.

- This motor control module can tolerate wide input Voltage (DC 5-36v) it can be applied in various high-power equipment

- Applications: motor, lamp bulb, LED lamp strip, micro water pump, etc. Specification: - Operating Voltage:DC 5V-36V

- Trigger Signal Source: digital high/low level (DC 3.3-20V), can connect with MCU IO port, PLC interface, DC power, etc; can connect with PWM signal; support signal frequency 0--20KHz.

- Output Power: DC 5v-36v, room temperature sustained current 15A, power 400W! In auxiliary cooling conditions, the maximum current can be up to 30A.

- Operating Temperature: -4085 Celsius:
:
Package Includes:
2 Pieces MOS FET Module
