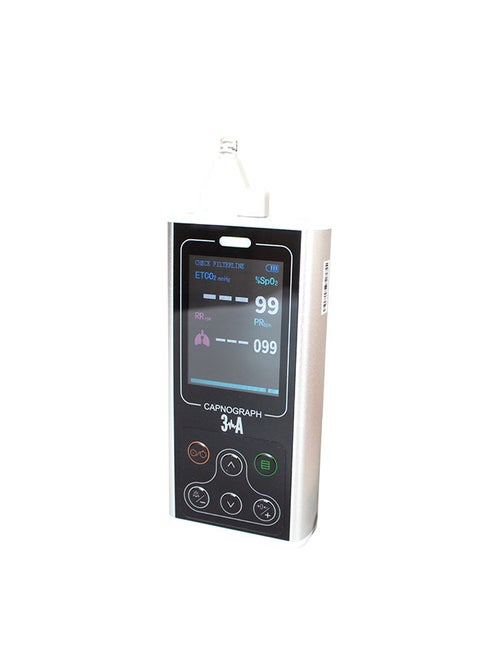

Capnograph Etco2 Monitor (Handheld)

نظرة عامةCapnograph adopts sidestream method to measure the end-tidal carbon dioxide, airway respiration rate and other parameters. It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow as well as indirectly reflect the alveolar ventilation standard. Meanwhile, it can also detect the blood oxygen saturation and pulse.Performance. End-tidal CO2 measurement- 1)Measurement range: 0 ~150mmHg 2)Resolution: 1mmHg 3)Accuracy: 0~40 mmHg:±2 mmHg 41~70 mmHg:±5% of readings 71~100 mmHg:±8% of readings 101~150 mmHg:±10% of readings Respiration rate measurement: 1)Measurement range: 2rpm~120rbpm 2)Resolution: 1rpm 3)Accuracy: ±1rpm SpO2 measurement: 1) Measurement range: 30~100 % 2) Resolution: 1% 3) Accuracy: 70~100 %:2 % 0 ~ 69 %:undefinition Pulse rate measurement: 1) Measurement range: 25~250 bpm 2) Resolution: 1bpm 3) Accuracy: ±2 bpm or ±2%,whichever is greater Safety characteristic: 1)Device type: internally powered equipment 2)Degree of protection against electric shock: type BF applied part 3)Degree of protection against ingress of liquid: IPX1
