مُعلقات عوازل اهتزاز الربيع للسقف لوحدات معالجة الهواء في غرفة النوم والمسرح والاستوديو، مضادة للاهتزاز، سعة 110 رطل، انحناء 1.20 بوصة، عبوة 4

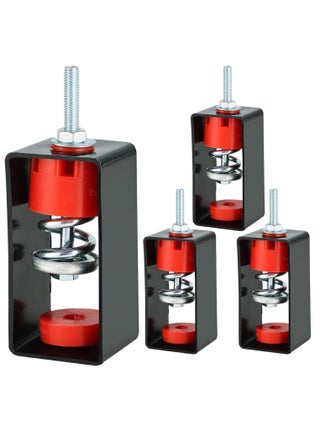

Ceiling Spring Vibration Isolator Hangers for A/C Air Handler Bedroom Theater Studio, Anti Vibration, 110 Lb Capacity, 1.20" Deflection, 4 Pack

Specification

1. Size:100mm*50mm*50mm or 4''*2''*2'';
2. Bolt Size:5/16'' (M8)
3. Weight:0.4kg
4. Material:Steel & rubber
5. Max Load:50kg (110lbs)

The recommended distance of each two isolators is 24 inch, e.g. 63~99 isolators are needed for a room aera of 215~322 sq ft

Features

• The base has 1 bolt hole on base for rigid mounting when used for supporting machinery.
• A nitrile friction pad on the base provides a non-skid surface.
• The ductile cast iron housing provides impact and fatigue resistance.
• The mount secures a heavy duty steel spring for absorbing shock and supporting the load, with nitrile sponge inserts to limit movement and prevent contact between upper and lower castings of the mount.

Advantages

Easy To Install

• The base has 1 bolt hole on base for rigid mounting when used for supporting machinery, easy installation on ceilings, floors, walls, ducts, etc.

High Quality

• By using 3mm thick steel, high quality spring and silicon material, this product provides high efficiency in absorbing vibration, it is fully matched to requirements of interior decoration.
