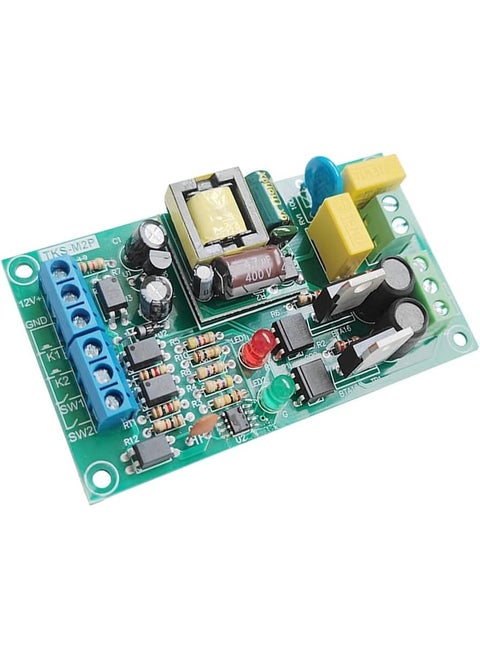

DONGKER Motor Forward Reverse ControllerAC 85V250V Motor Speed Controller Motor Drive Module Limit Switch

نظرة عامةSpecifications: Input Voltage:AC 85V-250V Signal Mode:low level is active,the width should reach 10ms.The signal terminals are isolated from the 220V output. Adapt to the Motor:bidirectional motor (3-wire or 4-wire) Output Power:300W (the maximum current can reach 16A,if it exceeds 300W,please install a heat sink by yourself,so that the temperature of the thyristor is controlled below 105) Output Mode:triac Control Mode:switch signal trigger,or low-level signal (can be connected to single-chip IO,PLC,sensor,etc.) Work Temperature:-25~85 Work Humidity:5%~95%RH Size:90*50*28mm Working Description: 1.Self-locking:The signal only needs to be triggered once,and the module self-locking keeps running. 2.When encountering a reverse signal during forward rotation,immediately stop for 0.3 seconds and then enter reverse rotation. 3.The limit signal has priority,and it will stop immediately when the forward limit signal is encountered during forward rotation. 4.When there is a forward rotation limit signal,the forward rotation cannot be started. 5.When it encounters a forward rotation signal during reverse rotation,it will immediately stop for 0.3 seconds and then enter forward rotation. 6.The limit signal is given priority,and it will stop immediately when it encounters the reverse limit signal during reversal. 7.When there is a reverse rotation limit signal,the reverse rotation cannot be started. 8.The forward rotation signal and the reverse rotation signal are valid when the low level,that is,a short-term 0V level,will start. 9.The limit signal is normally open.For example,when the SW1 switch is closed or connected to a low level,forward rotation cannot be started.
