Eca Niobe Swan Pipe Basin Mixer 102188054 .

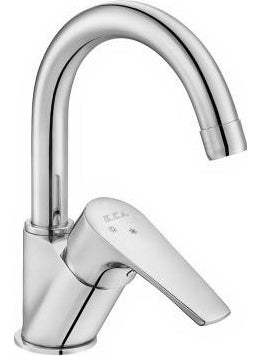

Niobe Swan Pipe Basin Mixer

Product Code: 102188054

TECHNICIAL SPECIFICATIONS

·        Cold opening feature

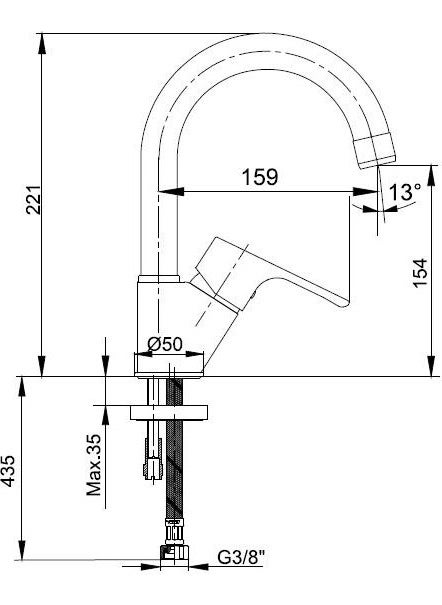

·        Spout length is 159 mm

·        Spout height is 154 mm

·        The maximum water flow rate at 3 bar pressure is 7 lt per minute, and maximum 5 lt per minute for "ST" codes.

COVERING

Chromium

Before Assembly:

• Before assembling your luminaire, review its manual.

• Keep your guide during the warranty period of your luminaire.

• Keep your luminaire in its original package until it will be installed.

• If the mains pressure is above 5 bar, working at this pressure for a long time

shortens the life of your luminaire. Therefore, E.C.A pressure reduction to the installation inlet

use the regulator.

•Install an E.C.A filter at the entrance of the installation to which you will connect your luminaire.

• Before connecting your armature to the plumbing, some water is flowing and inside the pipes.

clean it.

• Intermediate Tap with E.C.A Filter to connect sink and sink faucets to the installation.

use it.

• Chrome-plated fixtures, spa, etc. Do not use in places.

• Do not leave your luminaire installed in buildings under construction for a long time. Build

mortar, lime etc. materials may spill on the luminaire. Also in the air

chemical substances, combined with the humidity of the air, cause deterioration on the luminaire surface.

can bring. If such materials have fallen on the luminaire during construction and

If it is stuck, do not scrape it using hard objects. Armature in buildings under construction

If it will stay for a long time, isolate it from the environment by putting a bag over the fixture.

• Your luminaire is designed to operate at ambient temperature between 5°C and 65°C.

Your luminaire is not affected by frost, especially in environmental conditions below 5°C.

take the necessary precautions.

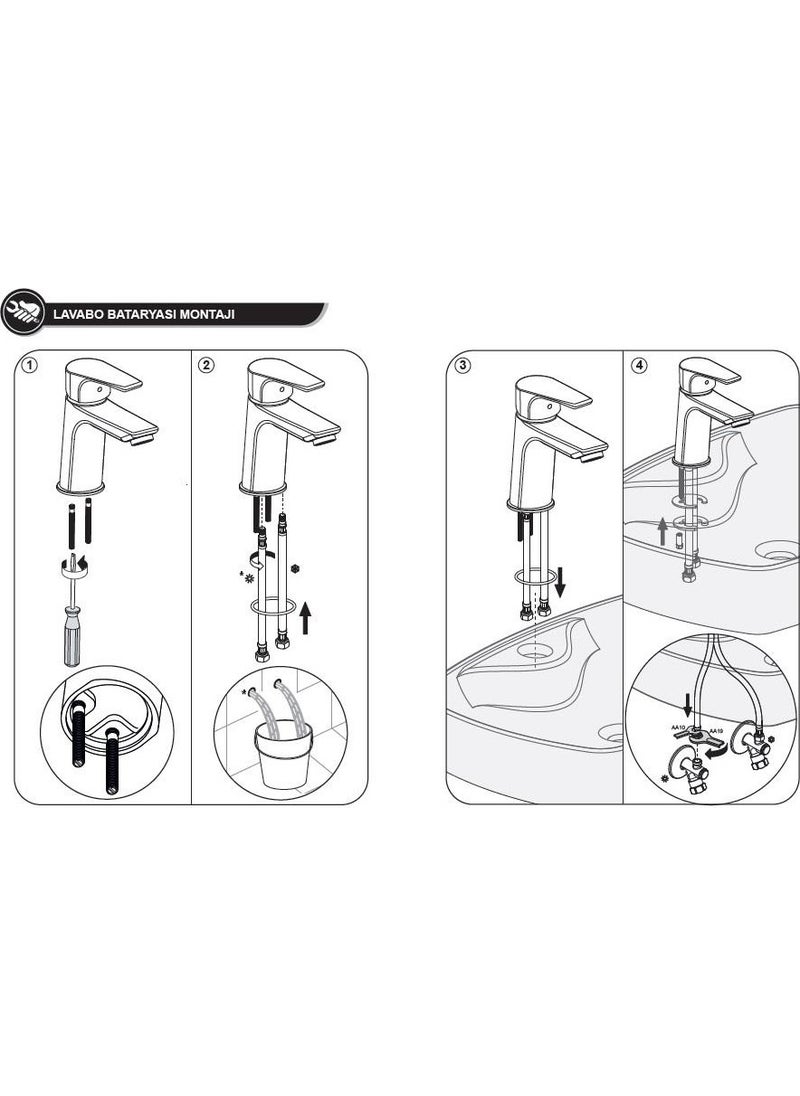

During installation:

• During the assembly of your luminaire, put keys on the surfaces of your luminaire, especially

Do not touch the pipe wrench.

• For easy and smooth mounting of bathroom, sink and sink faucets on the wall.

Use the mounting template during the laying of the piping.

• Assembling the flexible connection hoses of sink and sink mixers to the body.

Never use a key while.At the end of the hoses entering the body

The sealing element (O-ring) found is sufficient for sealing. your hoses

Make sure it is properly mounted on the body.

• After connecting your luminaires to the installation, open the valve and connect the luminaire to the connection points.

Observe for leaks. A leak in the ports

If there is, make a suitable assembly to seal the connection.

Do not use the armature without a leakproofness check.

During use:

• Wiping your armature with a soapy cloth and drying it with a dry cloth is sufficient for cleaning.

• By wiping the armature surface more frequently in places where the water hardness is high.

You can prevent the formation of gray spots on the surface.

• To clean the luminaire surfaces, one side containing abrasive and hard materials is green.

Do not use sponges or scouring pads, cleaning agents containing acid.

• Replace your armatures once every six months or when   a soft

wipe with cloth.

• In case of malfunctions that may arise from all kinds of environmental conditions and usage errors, the product

Use original E.C.A spare parts in order not to spoil its feature.
