Load Cell Half-Bridge Human Body Scale Weight Sensor with HX711 Module Amplifier for Arduino

Product Description:

This load sensor, sometimes called a strain gauge, is the same one found in digital bathroom scales (you know, the ones you use in January for your New Year’s resolutions, and then forget about a month later).

The sensor is a group of half-bridge strain gauges, There are 3 ways to use it :

1. Use one sensor with an external resistor to form a full-bridge measurement, the range of a sensor range of 50kg. External resistance on the higher requirements.

2. Use two sensors to form a full-bridge measurement, measuring range for the sum of the two sensors: 50kg x 2 = 100kg

3. Use four sensors to form a full-bridge measurement, measuring range for the sum of four sensors: 50kg x 4 = 200kg

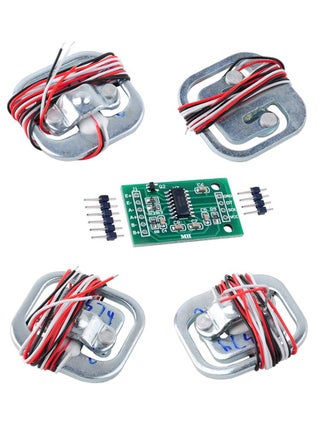

Package Includes:

4 X Human Scale Load Cell 50kg

1 X HX711 AD Module
