USB C Tester 4-28V 7A LCD A&C Voltage Current Power Multimeter with Bluetooth, Fast Charge Detection Trigger Capacity Ripple Measurement PD2.0 PD3.0 QC2.0 QC3.0

209.95

شامل ضريبة القيمة المضافة

باقي 1 وحدات في المخزون

احصل عليه خلال 10 يونيو

اطلب في غضون 2 ساعة 52 دقيقة

التوصيل بواسطة نوون

البائع ذو تقييم عالي

الدفع عند الاستلام

عملية تحويل آمنة

عروض البنوك

البائع

المنتج كما في الوصف

شريك لنون منذ

نظرة عامة على المنتج

الميزات الأساسية

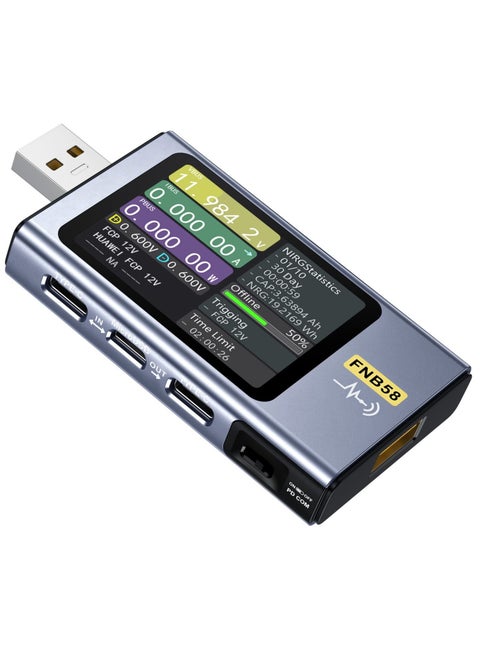

Updated Designed USB Tester: FNB58 USB tester has a 2.0-inch full-color ultra-wide viewing angle TFT LCD display, integrated USB-A, Micro-USB, Type-C interface. It is a high-reliability, high-safety USB voltage andcurrent detection meter
Multifunction USB Digital Tester: FNB58 uses external 16-bit ADC, PD protocol physical chip. It can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, and U disks
FNB58 USB tester can monitor the voltage, current, power, resistance, capacity, temperature, D+/D- voltage etc, it can be used to test the fast charging protocol of chargers
FNB58 supports trigger detection of various fast charging protocols, QC2.0/QC3.0 trigger, FCP/SCP trigger, AFC trigger, PD2.0/3.0 trigger, VOOC/WARP trigger, Super VOOC 1.0/2.0 trigger. The above protocols all support automatic monitoring
Support low-speed waveform (voltage, current, D+/D-) drawing, 2sps->100sps sampling rate. Support high-speed ripple (voltage, AC coupling)drawing, up to 4M sps sampling rate.

نظرة عامة

Real-time voltage and current curve

View the change of the charging curve in real time, find the abnormal charging immediately.

Offline curve recording

Supports up to 9 hours of offline voltage and current curve recording, charging process fully displayed.

D+/D- voltage curve

Charging protocols Changes. Master in real time.

High-speed power ripple measurement

Charger ripple measurement, easy to screen inferior chargers.
