الميزات الأساسية- The FNB58 USB tester features a 2.0-inch full-color TFT LCD display with an ultra-wide viewing angle, and includes USB-A, Micro-USB, and Type-C interfaces for reliable voltage and current detection.
- This multifunctional USB digital tester employs a 16-bit ADC and PD protocol chip, allowing it to measure power supply and consumption for devices like USB interfaces, chargers, and flash drives.
- The FNB58 USB tester can effectively monitor voltage, current, power, resistance, capacity, temperature, and D+/D- voltage, making it ideal for testing fast charging protocols of various chargers.
- It supports trigger detection for multiple fast charging protocols, including QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, and VOOC/WARP, with automatic monitoring for all listed protocols.
- The device allows for low-speed waveform drawing (voltage, current, D+/D-) with a sampling rate from 2sps to 100sps, and high-speed ripple drawing (voltage, AC coupling) at up to 4M sps sampling rate.
نظرة عامةWhy Choose Us?
Advanced USB C Tester

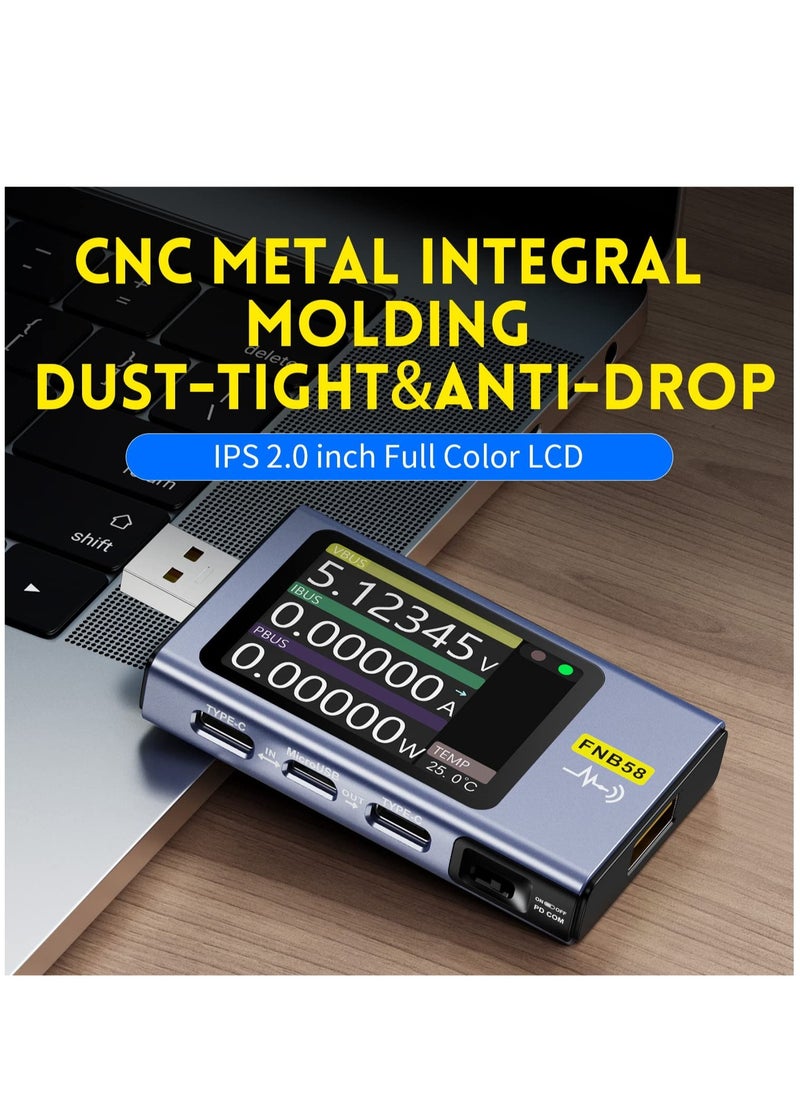

Introducing the FNB58 USB tester, designed for precision and reliability. This device features a 2.0-inch full-color TFT LCD display with an ultra-wide viewing angle, making it easy to read measurements from any angle. With integrated USB-A, Micro-USB, and Type-C interfaces, it’s the perfect tool for all your USB testing needs.
Multifunctional Measurement Capabilities
The FNB58 USB tester is not just a voltage and current meter; it’s a multifunctional powerhouse. It utilizes an external 16-bit ADC and a PD protocol physical chip to measure power supply and consumption across various devices, including mobile phone chargers, USB interfaces, and U disks. This versatility makes it an essential tool for tech enthusiasts and professionals alike.
Comprehensive Monitoring Features
With the ability to monitor voltage, current, power, resistance, capacity, temperature, and D+/D- voltage, the FNB58 provides a complete overview of your device's performance. It’s particularly useful for testing fast charging protocols, ensuring that your chargers are functioning optimally and efficiently.
Fast Charging Protocol Support

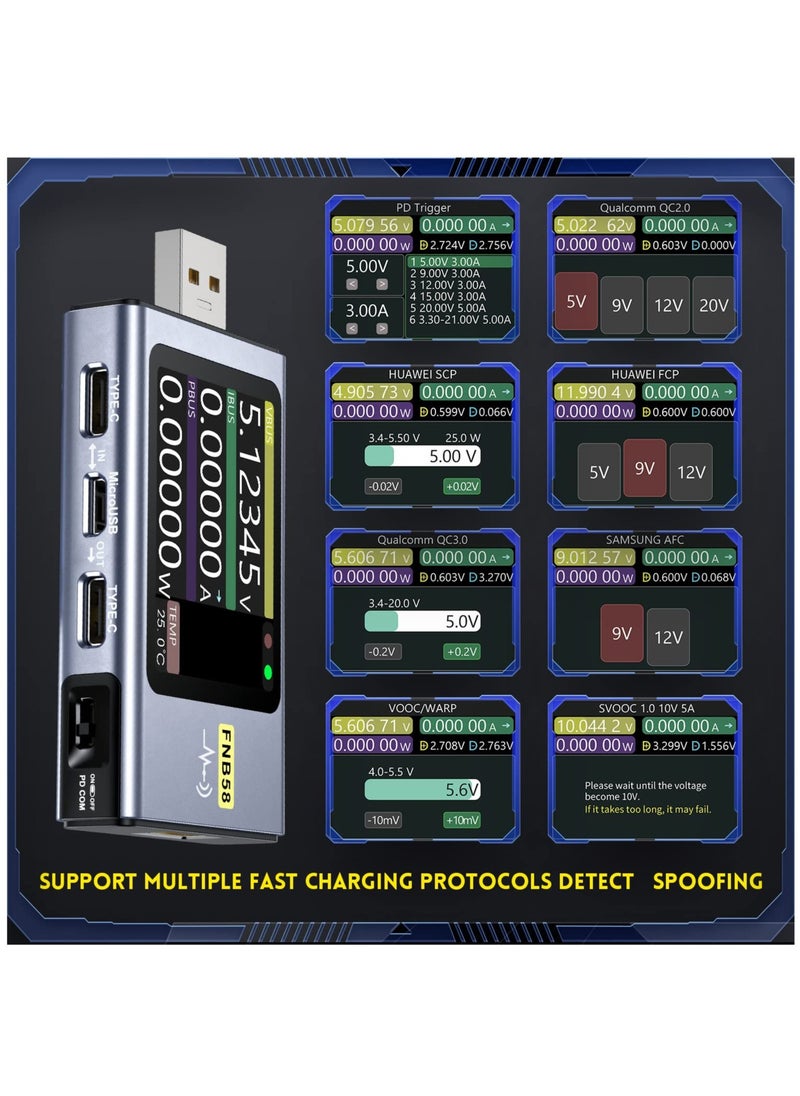

The FNB58 supports a wide range of fast charging protocols, including QC2.0/QC3.0, FCP/SCP, AFC, PD2.0/3.0, and VOOC/WARP triggers. This feature allows for automatic monitoring of various charging standards, making it easier to identify compatibility and performance issues with your devices.
High-Speed Data Sampling
Experience advanced data analysis with the FNB58’s low-speed waveform drawing capabilities (voltage, current, D+/D-) at a sampling rate of 2sps to 100sps. For more detailed analysis, it supports high-speed ripple drawing (voltage, AC coupling) with a remarkable sampling rate of up to 4M sps, providing you with the insights you need for thorough testing.
Specifications
Material: High-Quality Electronics
Display: 2.0-inch TFT LCD
Measurement Range: 4-28V, 7A
Protocols Supported: QC2.0, QC3.0, PD2.0, PD3.0, FCP, SCP, AFC, VOOC/WARP
What You Will Get
1 * FNB58 USB C Tester
1 * User Manual
Warm Notice
Ensure that the tester is used in a safe environment and follow all safety guidelines to prevent damage to your devices. Always check compatibility with your devices before use.
