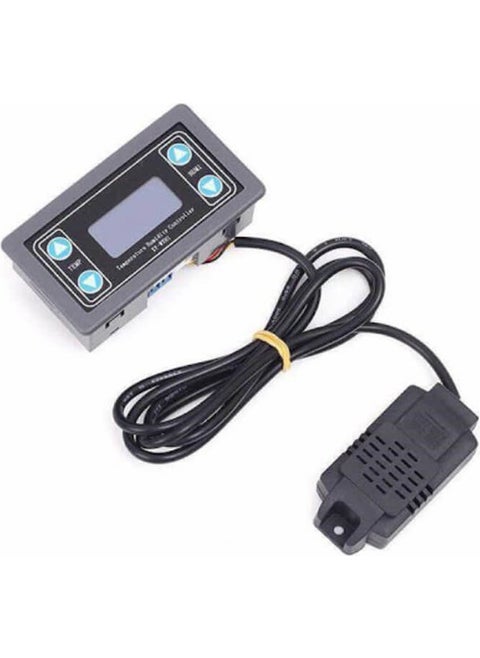

Xy-Wth1 Digital Display Temperature and Humidity Controller Thermostat

نظرة عامةXY-WTH1 High precision panel temperature and humidity control module with digital display providing both temperature and humidity output

shows at the same time

This product works with the SHT20 sensor, one of the most industrial and accurate sensors currently on the market.

The operation of this device is divided into two parts: temperature and humidity.

How to adjust the temperature:

You can set this device in both hot and cold mode.

This module has the feature of automatically detecting cold and heat.

The system automatically detects the operating mode (cold and hot) based on the starting and ending temperatures.

Cooling mode (C): Starting temperature> End temperature

Heating mode (H): Initial temperature <Final temperature

Cooling mode (C):

When the ambient temperature is greater than or equal to the starting temperature, the relay will be connected and the cooling system will start.

When the ambient temperature is lower than or equal to the final temperature, the relay closes and the cooling system stops.

Heat mode (H):

When the ambient temperature is lower than or equal to the starting temperature, the relay will be connected and the heating system will start.

When the ambient temperature is higher than or equal to the final temperature, the relay closes and the heating system stops.

Normally the device detects the temperature correctly, but if it needs to be calibrated, it

Just set it slightly higher or lower (depending on your needs).

So, if you find that the device shows the temperature two degrees higher, set the temperature you want.

Just set it two degrees lower.

How to adjust humidity:

This device also has two operating modes for humidity. One is the humidity booster, the other is the start and end you set.

It is a humidity reducer that is automatically detected by the system according to humidity levels.

Humidity Reduction Mode (D): Start Humidity> Latest Moisture

Humidity Boost Mode (E): Start Humidity <End Humidity

Humidity Reduction Mode (D):

When the ambient humidity is greater than or equal to the initial humidity, the relay will be connected and the humidity reduction system will start working.

When the ambient humidity is less than or equal to the final humidity and the humidity reduction system stops.

Humidity boost mode (E):

When the ambient humidity is equal to or less than the starting humidity, the relay will be connected and the humidifier system will start.

When the ambient humidity is higher than or equal to the final humidity, the relay closes and the humidifier system stops.

How to set temperature and humidity parameters:

To set the final temperature, press the upper direction of the temperature for 3 seconds and enter the final temperature settings.

You can use the arrow keys to set the final temperature and after 6 seconds the settings are automatically saved.

The above steps are repeated to adjust the starter pump. Follow the above method to set humidity parameters.
