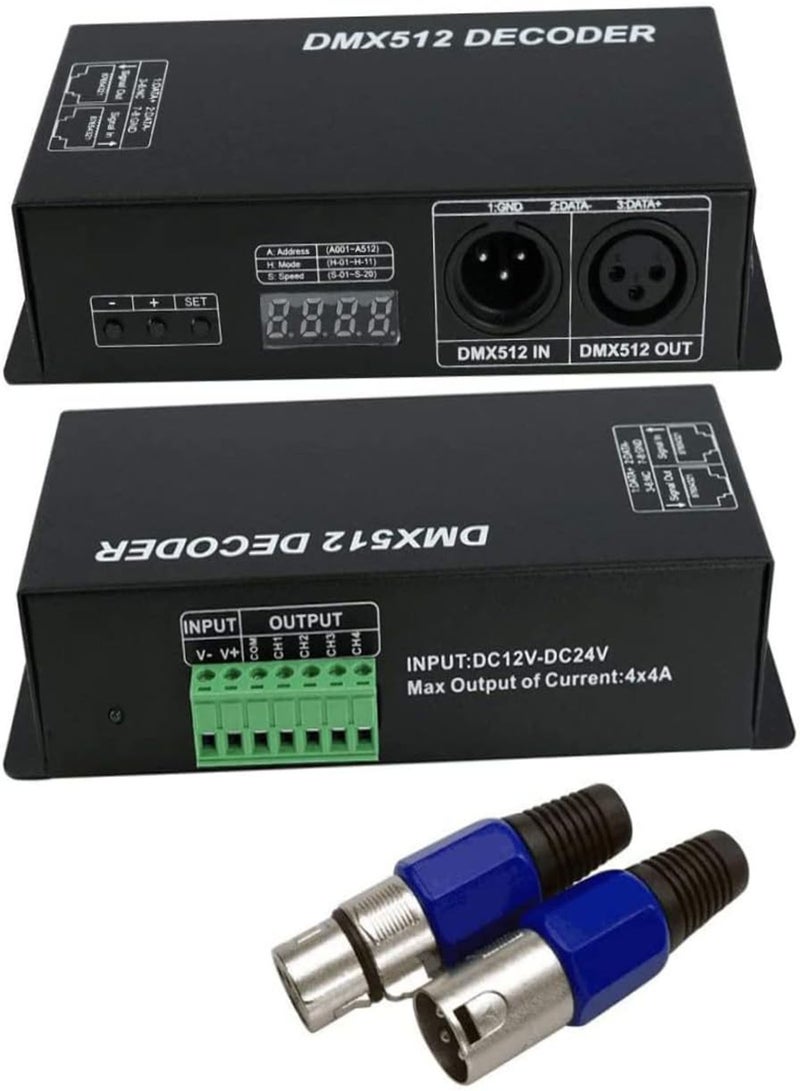

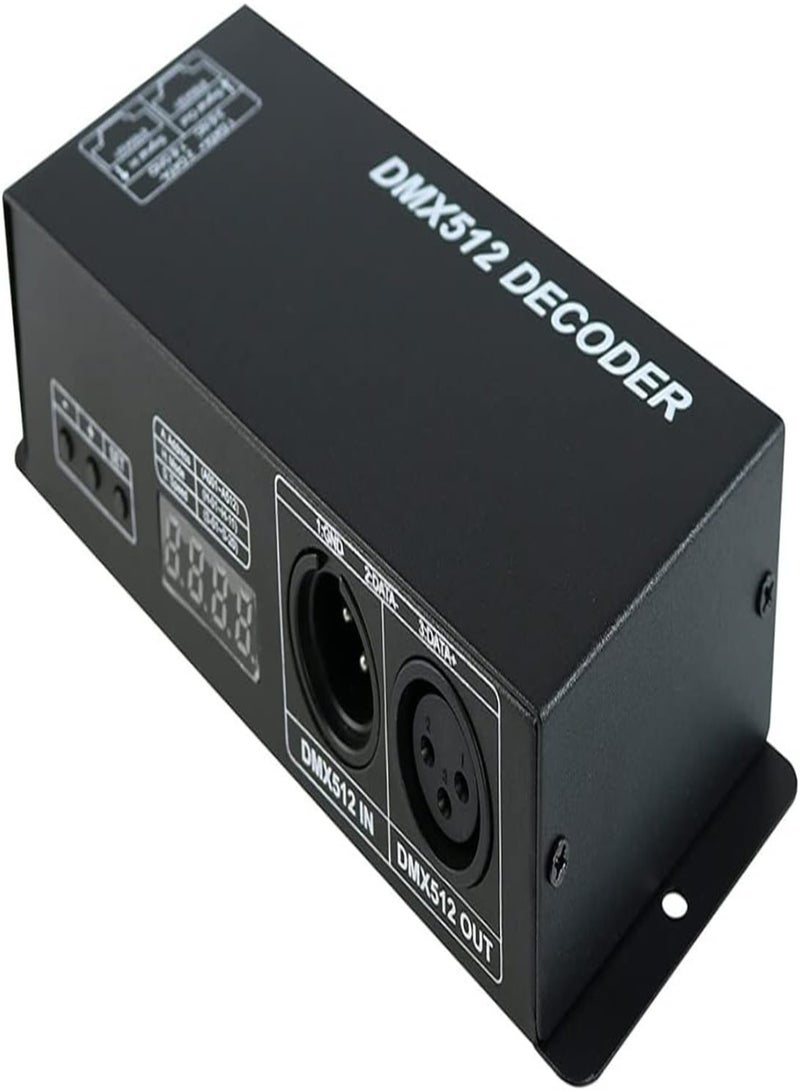

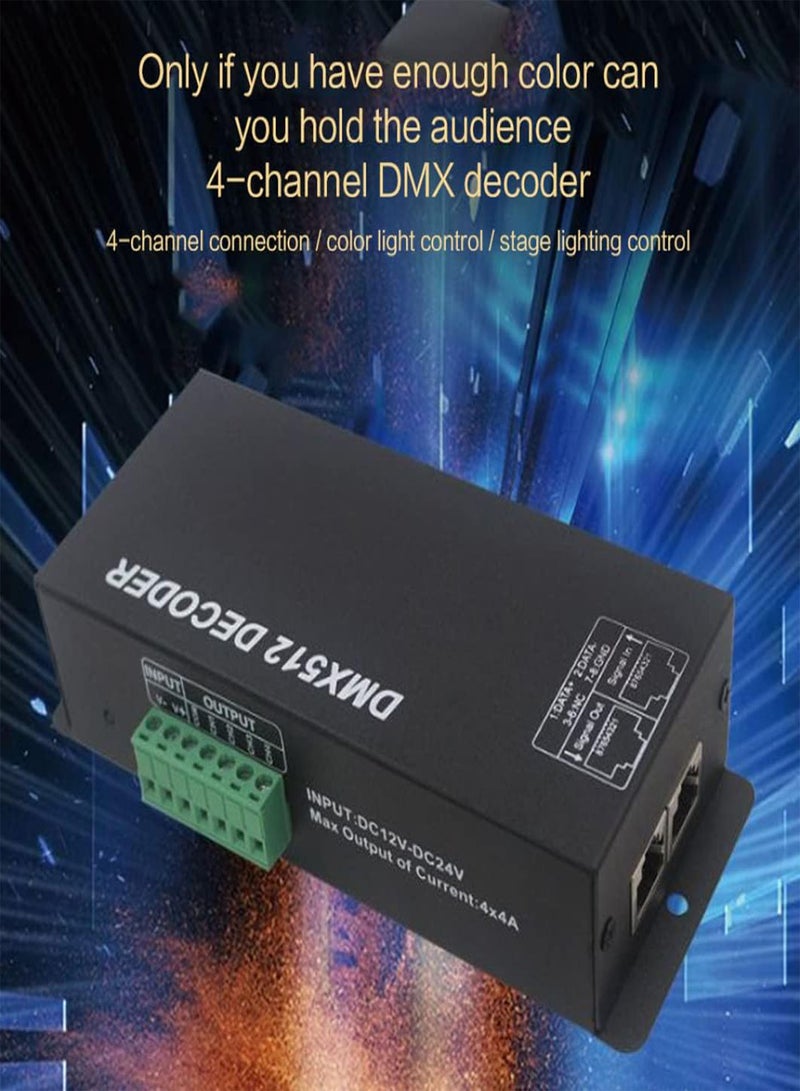

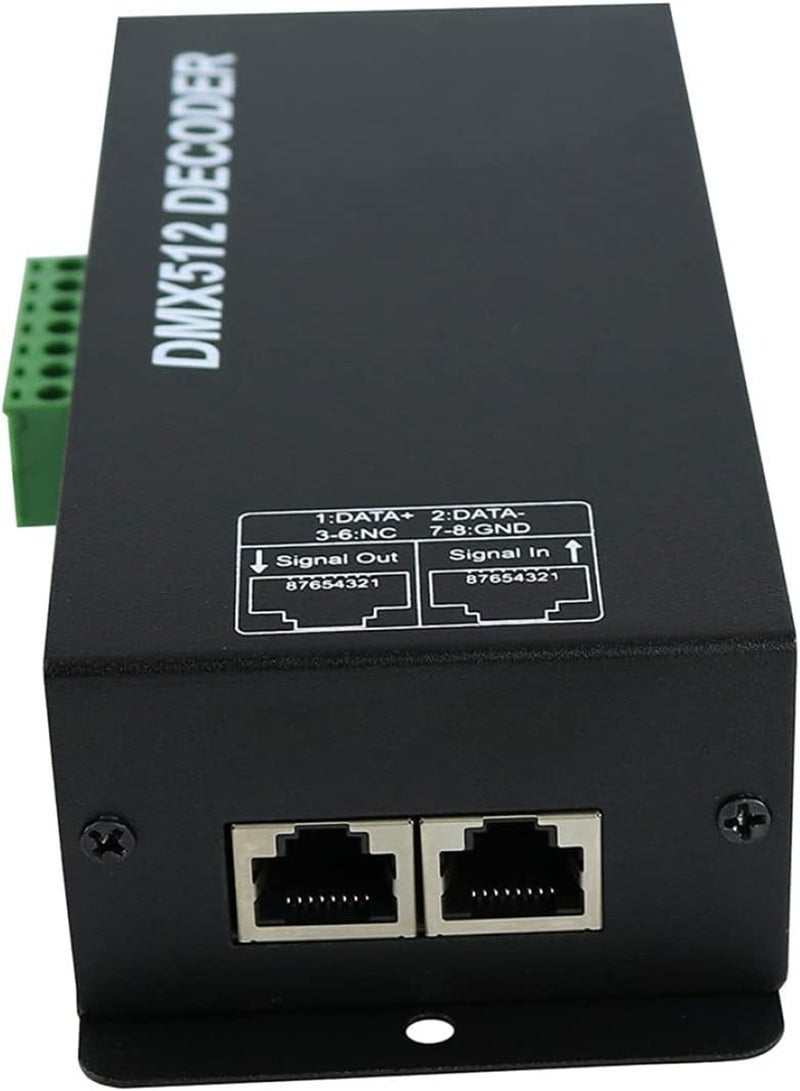

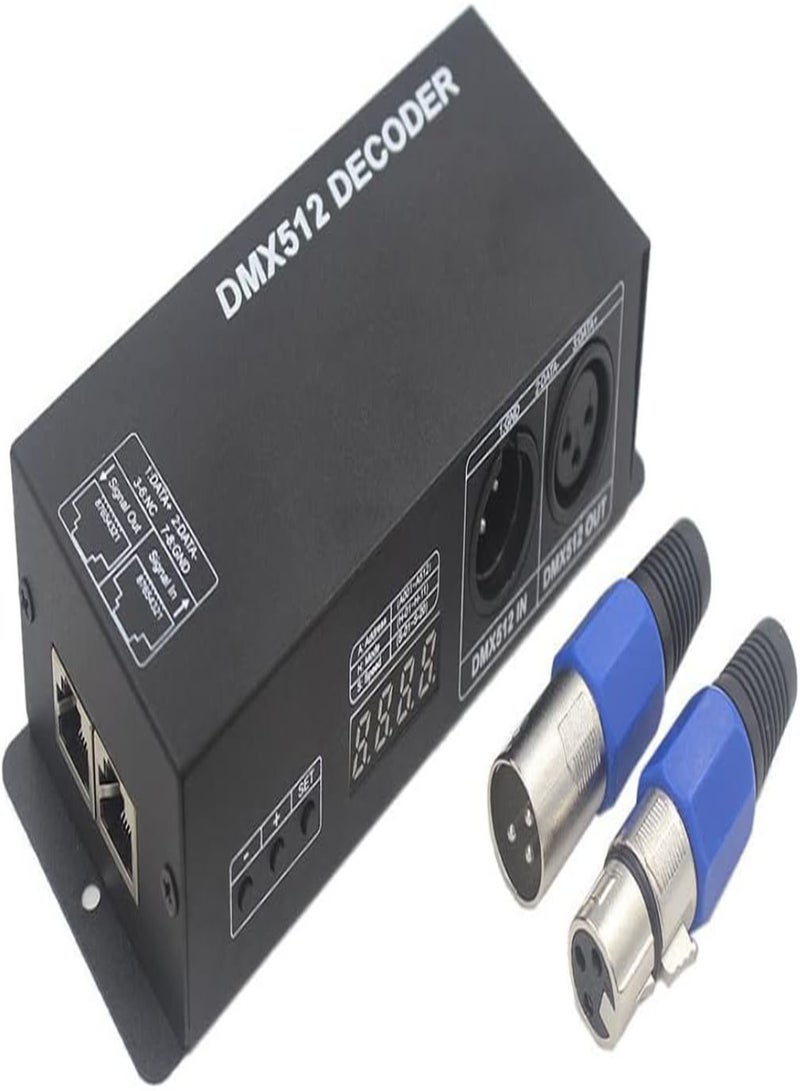

DMX Decoder Controller RGB Led Strip Light Driver Dimmer Module Dmx512 Dc12v-24v 4 Channel with Display, DMX Decoder,DMX Controller,RGB DMX Decoder,Led DMX Decoder,Led Driver

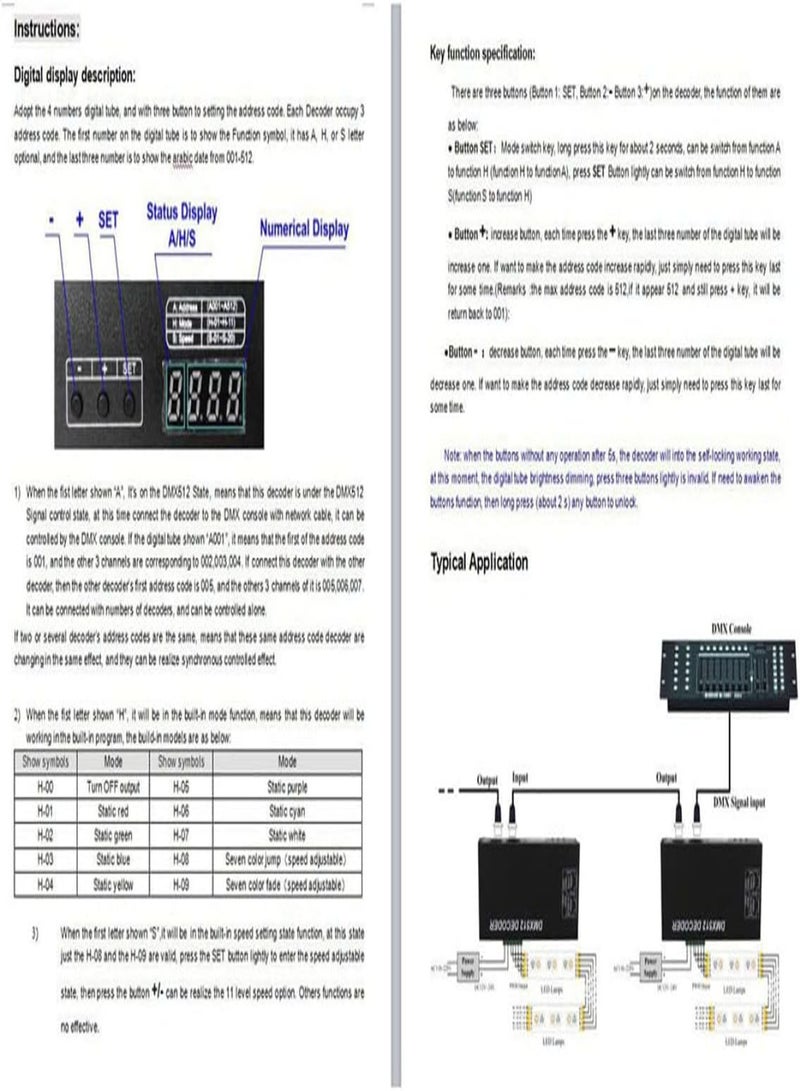

Description This DMX decoder adopts advanced computer control chip, receives standard DMX 512/1990 digital control signal and transformrd it into PWM signal to adjust LED Lights. There are 4 output channels, can connect with single or RGB lamps. Wide voltage DC input DC12V ~ DC24V; high power output max 20A for 5A each channel, use for led strip,led module,led light. Features DMX decoder -Color: Black. -Material: Plastic. -Size: 16.6x6.5x4 cm/6.54x2.56x1.57 inch. Output current: ≤4A/CH (Note: total current over 20A will reduce the life time of the product.) Input voltage:DC12V~24V(12V:<192W, 24V:<384W) Working temperature:-20-60℃ DMX512 standard:DMX512/1990 Accessories:DMX signal plugs 1 pair Cautions: 1. This product only use on supply voltage DC12-24V, do not input on other voltage. 2. The lead wire shall be according to the wiring diagram of the color and label, connect correctly. 3. This product cannot be overloaded. Package Including 1 * Pair of DMX signal plugs1 * DMX decoder
