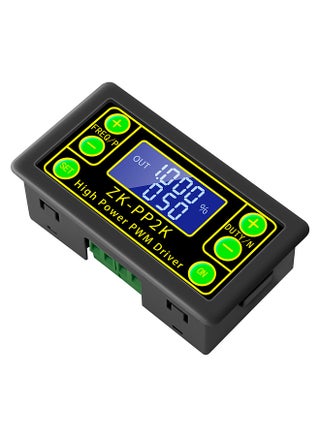

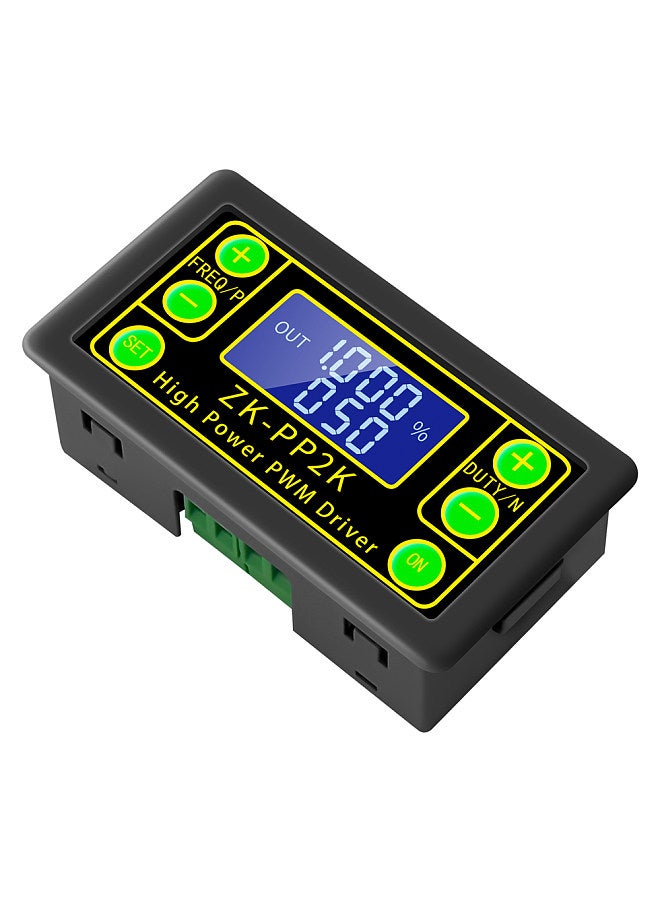

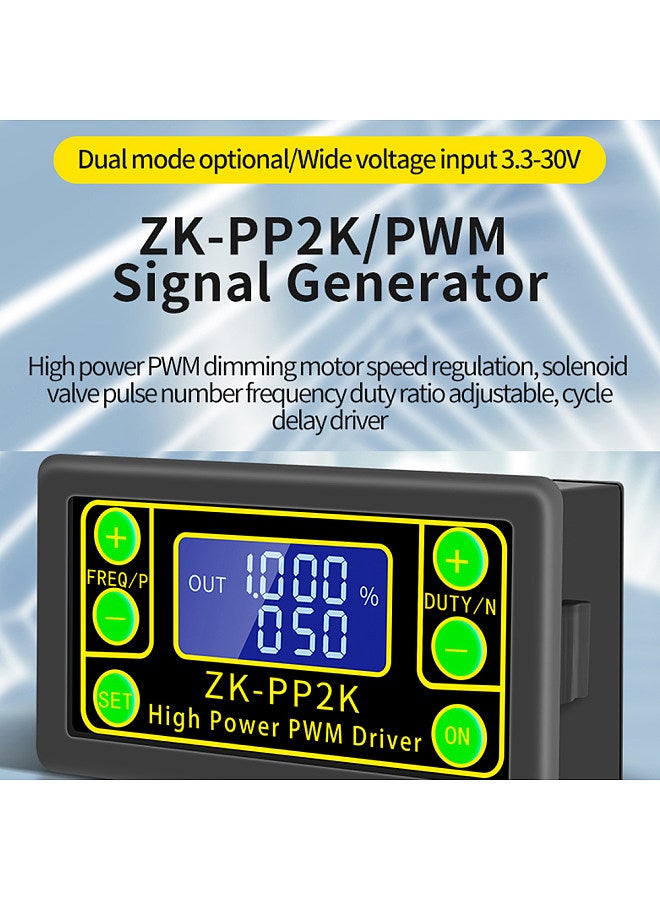

ZK-PP2K Signal Generator PWM Pulse Generator LED Stepper Motor Solenoid Valves Driver Delay with Time Pulse Width Frequency Duty Cycle Adjustment Functions

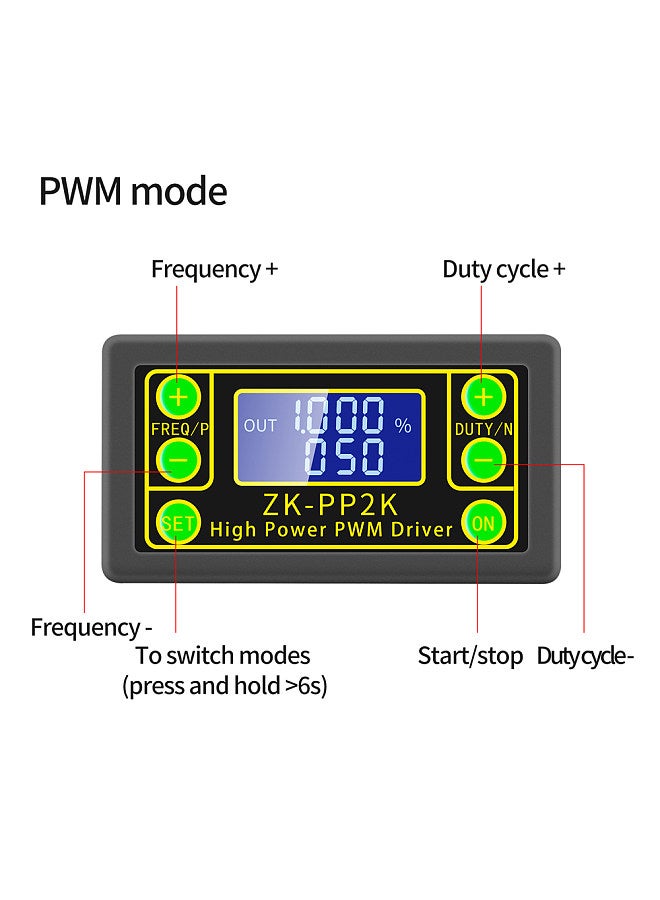

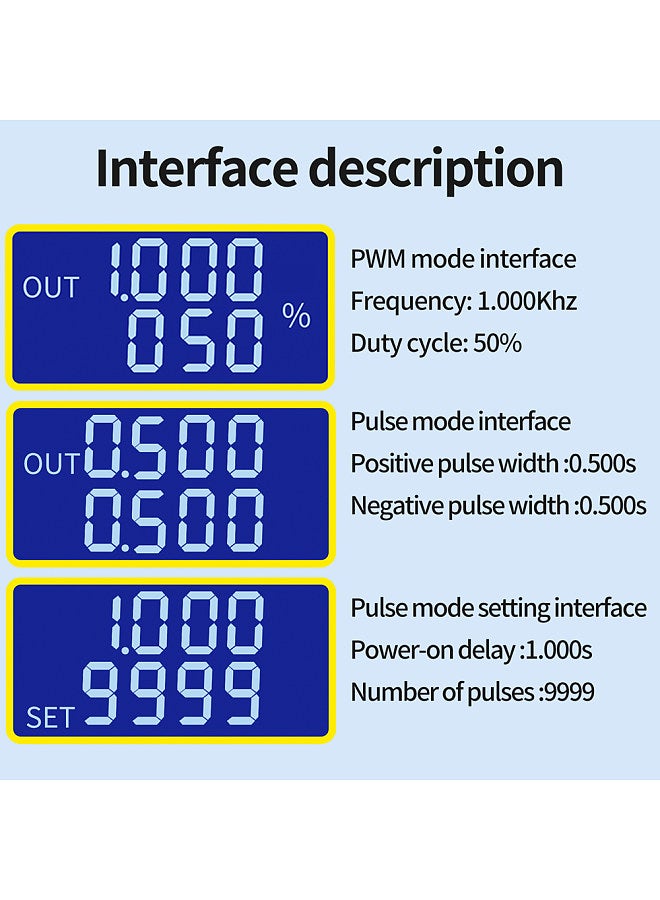

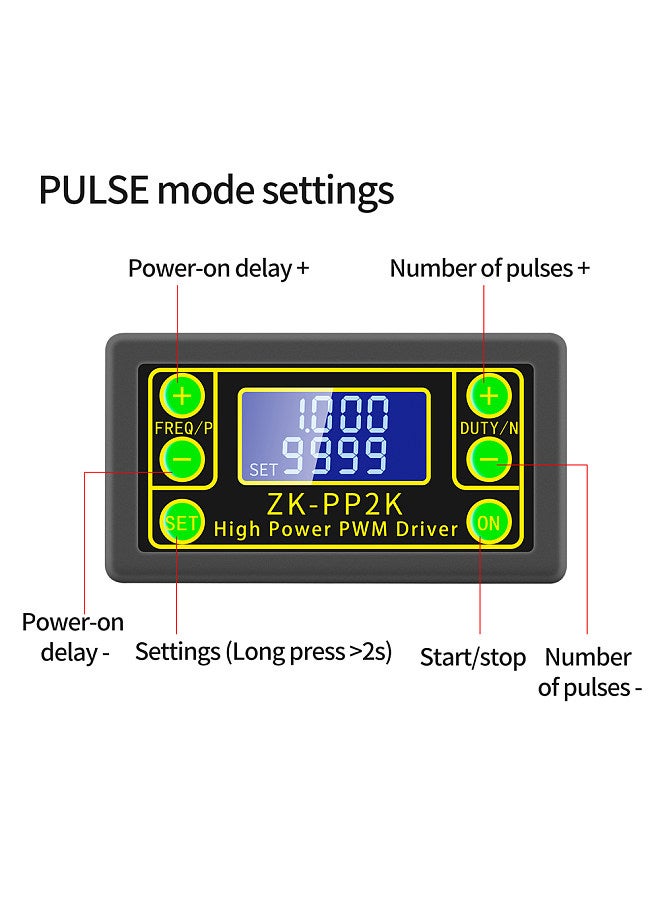

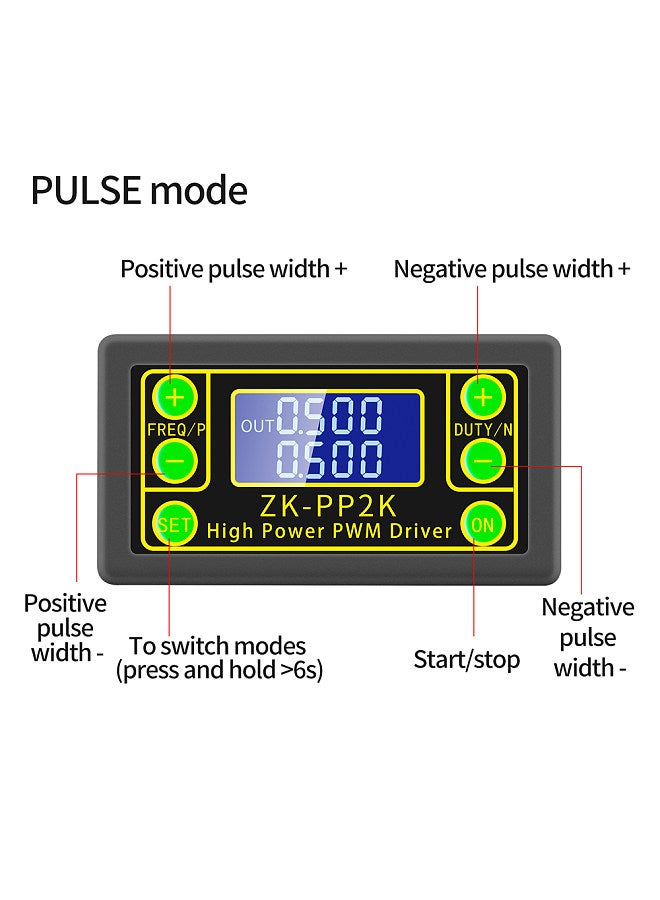

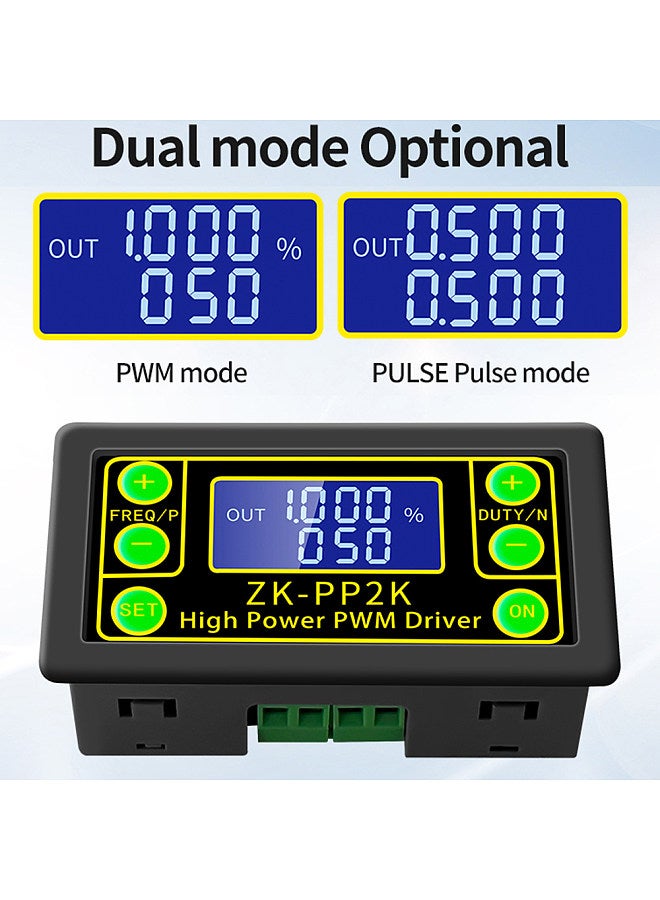

The ZK-PP2K signal generator is a versatile signal generator.it can directly drive LEDs, motors, solenoid valves, and other loads. It has the function of adjusting the number of pulses, delay time, pulse width, frequency, and duty cycle. It can be precisely adjusted according to the actual needs. It is a powerful, easy-to-use, and stable signal generating device, which is perfect for various practical scenarios. Features: Digital LCD screen display with large font for easy data reading, you can see the data clearly at a glance. It has three working modes, including PWM mode, pulse mode, and pulse mode setting, which can be switched by the user as needed.  PWM mode interface displays frequency and duty cycle; pulse mode interface displays positive and negative pulse width time; pulse mode setting interface can display power-on delay time and number of pulses. Various practical scenarios design, it can directly drive LEDs, motors, solenoid valves, and other loads. LED brightness adjustment design, frequency and duty cycle can be adjusted. Motor speed adjustment design, frequency and duty cycle can be adjusted. For the suction and release driving of solenoid valves, the automatic cycle, delay output, and cycle times (or infinite cycle) can be set. To control the starting and stopping of the equipment, perform switching fatigue tests, voltage drop tests, and other tests to verify the reliability of the customer's equipment. For a delayed starting load, the delay time can be set after the delay has been on or intermittent work. 3.3-30V wide voltage input, 5.08mm terminal wiring, it is designed with one button to control starting/stopping. Specifications: Name: Signal Generator Material: plastics Input voltage: 6.0-36V Output type: MOS switch With load capacity: <8A Connecting large load: Yes Wide viewing angle screen: Yes Operating voltage:3.3-30V Frequency ranges: 1Hz~150KHz, accuracy about 2%. Motor speed control generally choose 20KHZ Number of pulses: 1-9999, or infinite (display “----“, representing infinite) Delay output time: 0.000s-9999s, the minimum can be set 1ms Duty cycle ranges: 0-100%, 1% steps Positive and negative pulse width length: 0.000s-9999s, the minimum can be set 1ms Output load capacity: less than 8A (MOS switching tube) Output amplitude: amplitude equal to the supplyvoltage (OUT+ and V+ modules are directly connected internally) Item size: 78 * 48 * 27mm / 3.07 * 1.89 * 1.06in Item weight: 42g / 1.48ounce Package size: 110 * 70 * 50mm / 4.33 * 2.76 * 1.97in Package weight: 67g / 2.36ounce Packing List: 1 * Signal Generator
