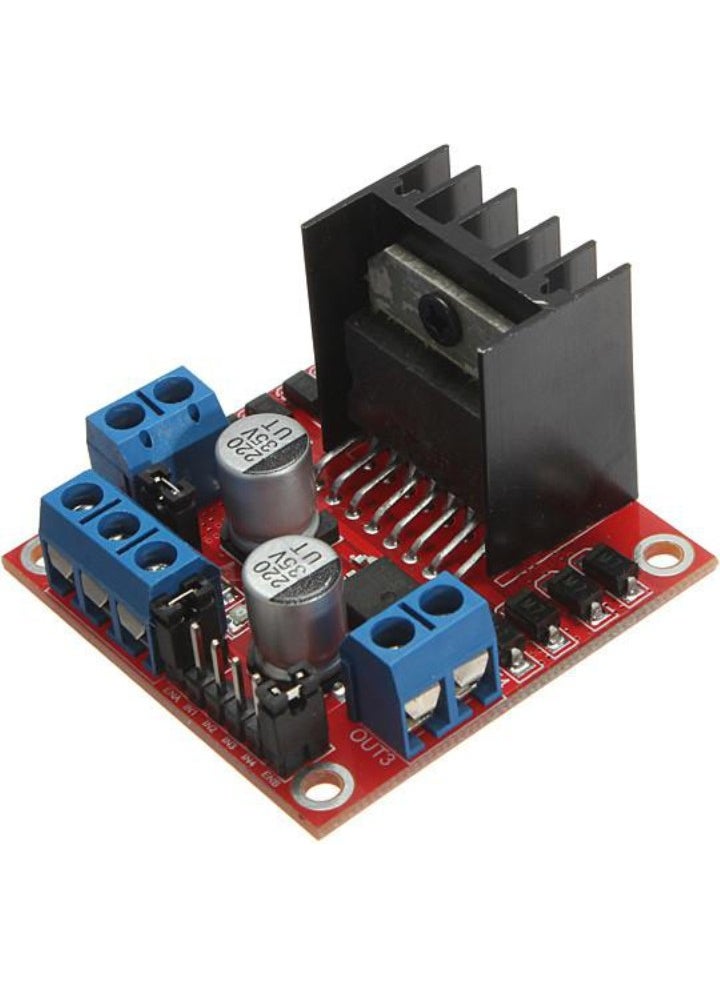

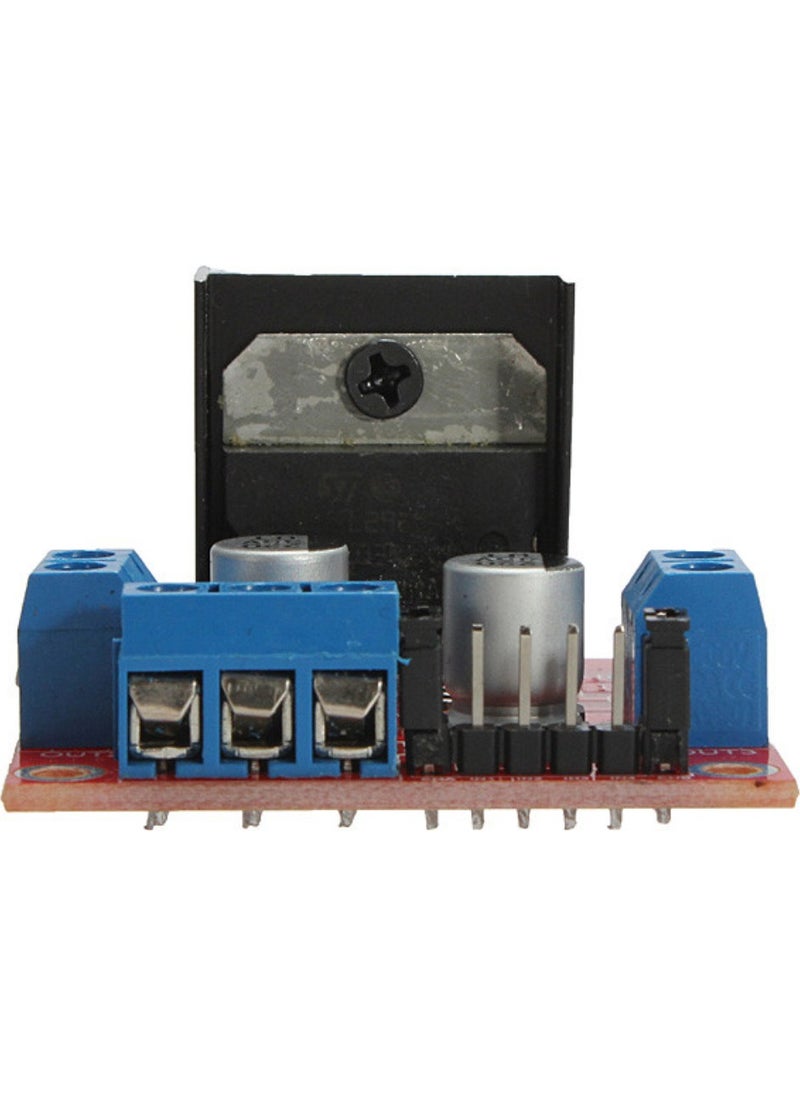

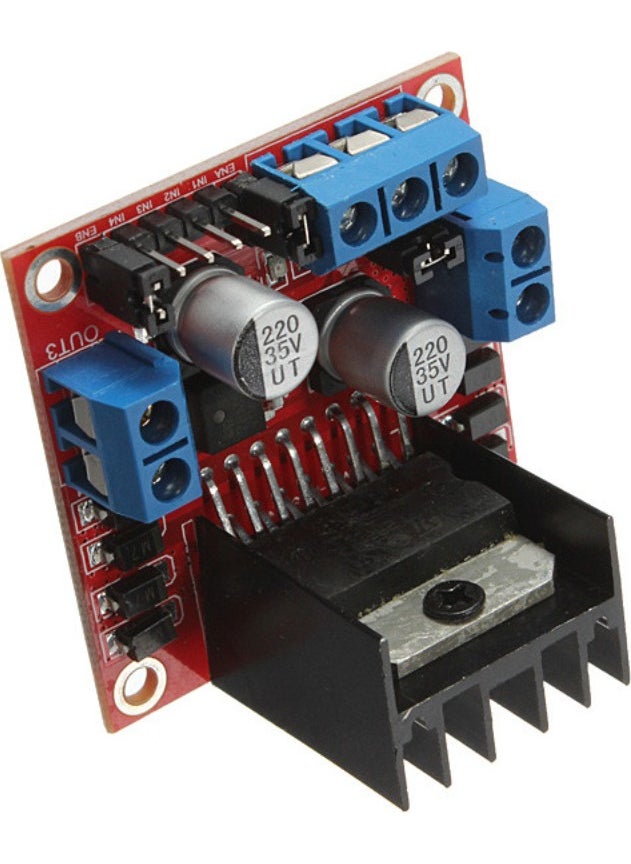

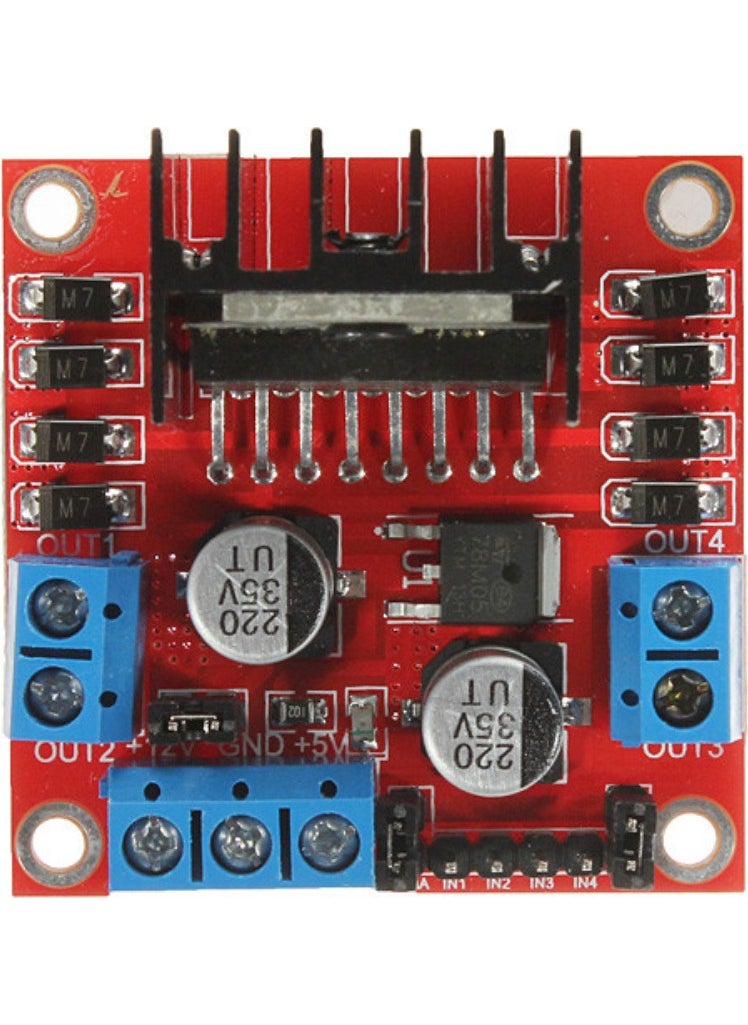

Arduino L298N Motor Driver Shield - DC Motor Driver Raspberry

This driver; The board has been prepared for you to drive the engines simply and easily. 1 L298N motor driver on the board; integrated is available. It can give current up to 2A per channel. The motor voltage can be used between 6-15V. If the supply voltage is 5V, it is used by short-circuiting the VCC-5V jumper on the board. All unused pins of the card are 4" on the card. It has been converted to connectors and left for general use.

ÖFEATURES:

• This engine driver You can use it in motors up to 24 Volts in many applications such as line follower robots, sumo robots, light follower robots.
• This engine driver You can control stepper motors with
• It can control two different  DC motors independently of each other.
• It can give 2A current per channel.
• Internal regulation on has.
• It has high temperature and short circuit protection.
• There are leds that light up according to the motor rotation direction.
• There is an internal heatsink on the card.
• Current sense pins are exported.
• There are 4 screw holes on the 4 sides of the card that you can fix to the desired surface.

TECHNICAL FEATURES:

• Analog and digital input pins left blank for sensor connections,
• Product Dimensions: 68 x 55 x 30mm,
• Weight: 37g.

PACKAGE CONTENTS:

• 1 x Arduino L298N Motor Driver Shield (The board is sent completely soldered.)
