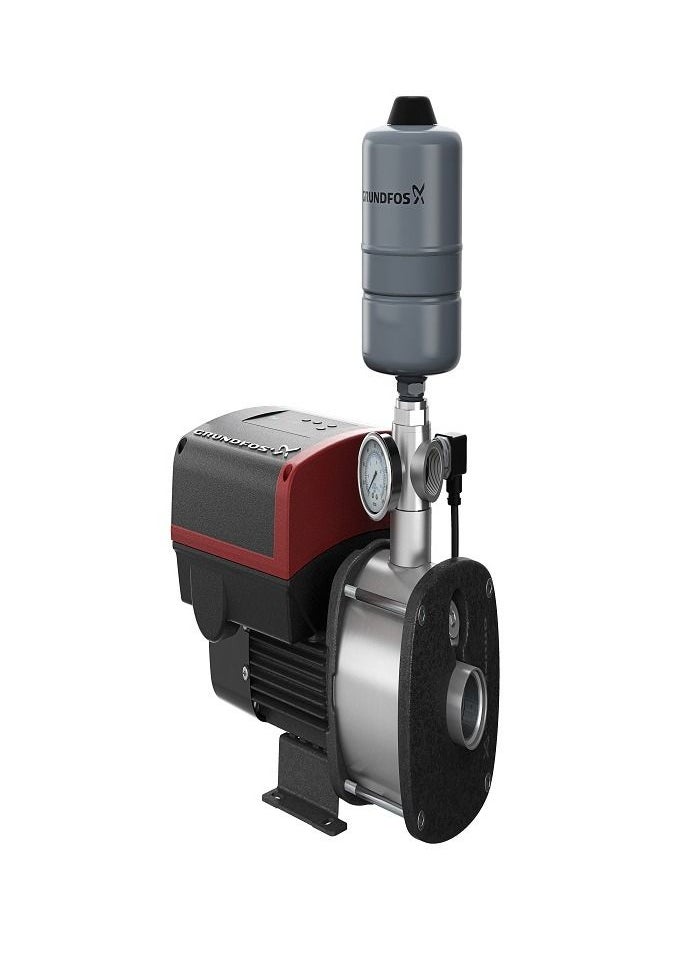

CMBE 5-62 I-U-C-C-D-B

Specifications Product name CMBE 5-62 I-U-C-C-D-B Product No 98374704 EAN number 5711493909446 Technical Pump speed on which pump data are based 3868 rpm Rated flow 6 m³/h Rated head 47.8 m Impellers 4 Primary shaft seal AVBE Approvals and markings CE,EAC Curve tolerance ISO9906:2012 3B Model A Return valve YES Start pressure Integrated Frequency converter Materials Pump housing Stainless steel DIN W.-Nr. 1.4301 AISI 304 Impeller Stainless steel DIN W.-Nr. 1.4301 AISI 304 Rubber EPDM Installation t max amb 55 °C standard WHITWORTH THREAD RP Pump inlet Rp 1 1/4 Pump outlet Rp 1 Liquid Pumped liquid Water Liquid temperature range 0 .. 60 °C Selected liquid temperature 20 °C Density 998.2 kg/m³ Electrical data Rated power - P2 1.5 kW Mains frequency 50 / 60 Hz Rated voltage 1 x 200-240 V Maximum current consumption 9.10-7.60 A p max system 10 bar Rated speed 360-4000 rpm Enclosure class (IEC 34-5) IP55 Insulation class (IEC 85) F Built-in motor protection TP 211 Type of cable plug SCHUKO Mains cable 1.5 m Tank Tank volume 2 l Others Net weight 19.3 kg Gross weight 29.4 kg Config. file no 98499013 Danish VVS No. 385185562 Finnish LVI No. 4925862 Quotation CMBE 5-62 I-U-C-C-D-B The Grundfos CME Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal to the speed controller to change the motor speed to adapt performance to the new state. The CME Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the unit into a socket, and the system is operational. The CME Booster consists of: • CME pump with integrated frequency converter • 5-way valve • expansion tank • pressure gauge Features • Constant pressure, integrated speed control • compact • robust, stainless steel • easy installation • dry run protection Thermal protection CME Booster pumps require no external motor protection. The MGE motor incorporates thermal protection against slow overloading and blocking (IEC 34.11: TP 211). Applications Grundfos CMBE Booster is mainly used for domestic and light commercial water supply or booster systems.
