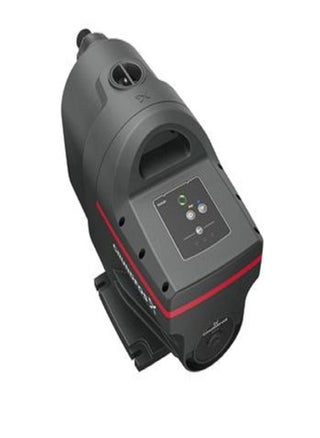

Grundfos - SCALA1 3-45

OverviewSpecifications Product name SCALA1 3-45 Product No 99530405 EAN number 5713830591598 Technical Rated flow 3.59 m³/h Rated head 25 m Maximum head 44 m Shaft seal type BVBP Approvals CE,EAC,AAA Approvals for drinking water WRAS,ACS Curve tolerance ISO9906:2012 3B Model A Start pressure 2.2 bar Materials Pump housing Composite Impeller Composite Installation Range of ambient temperature 0 .. 55 °C Maximum operating pressure 8 bar Maximum permissible inlet pressure 3 bar Type of inlet connection R Type of outlet connection R Size of inlet connection 1 inch Size of outlet connection 1 inch Pressure rating for connection PN 8 Liquid Pumped liquid Water Liquid temperature range 0 .. 45 °C Selected liquid temperature 20 °C Density 998.2 kg/m³ Electrical data P1 max. 910 W Rated power - P2 0.58 kW Mains frequency 50 Hz Rated voltage 1 x 230 V Maximum current consumption 4.1 A Enclosure class (IEC 34-5) X4D Insulation class (IEC 85) F Length of power cable 1.5 m Power plug Type E/F (CEE7/7) Schuko plug Others Net weight 12 kg Gross weight 14 kg Shipping volume 0.046 m³ Storage temperature range -40 .. 70 °C Finnish LVI No. 4732545 Norwegian NRF no. 9045229 Quotation SCALA1 3-45 The Grundfos SCALA1 is a self-priming, multistage pump, that incorporates all the components of a pressure booster into a compact composite enclosure. As it is self-priming, the SCALA1 can pump water from a level below the pump. Provided it is filled with water, the pump can lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes. SCALA1 can communicate with Grundfos GO app via built in Bluetooth, which enables detailed pump monitoring and high customization options, making this pump a good fit for every application. SCALA1 incorporates advanced protection features such as: • Dry running protection that will automatically stop the pump in case of water shortage • Cycling protection which will prevent pump starting frequently in case of minor leakages in installation • Max runtime protection can stop the pump after a desired period of continuous operation, preventing potential damage due flooding in case of pipe breakages. The pump has a built-in motor protection that will stop the pump if exposed to excessive temperature due to high ambient temperature, in case of seizure or overload, thus preventing a motor burnout. With Grundfos GO you can easily setup SCALA1 as a Twin booster system, operating as duty/stand by as well as duty/assist. It is also possible to add external input control and schedule a pump operation via calendar function. SCALA1 require no maintenance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust.
