Highlights- New Designs and Features: The dial Controller of Huion Inspiroy Dial Q620M drawing tablet offers users creative shortcuts and is compatible with Windows Radial Controller Protocol. Features of Dial Controller can be programmable in the driver by defa
- Wireless Receiving Function: Huion Inspiroy Dial Q620M drawing pad can use a 2.4Ghz USB receivers to connect to a computer (with a wireless range of 10 meters) in wireless mode, so that users can get rid of the cable connection. It supports Windows 7
- Fast Charging: Huion Q620M graphics tablet supports two charging modes, 5V500mA and 5V1A, with a charging efficiency of up to 1.2 hours (5V1A), which greatly relieves people's charging anxiety. The Huion Q620M wireless graphics tablet can work for ab
- Frosted Cladding Board: Huion Q620M graphics tablet adopts a new cladding board surface treatment technology, which is comfortable to touch and not easy to obtain fingerprints.The 8 programmable buttons of the Huion Q620M graphics tablet, all of whic
- Battery-free Digital Pen PW500: Battery-free digital pen PW500 of Huion Inspiroy Dial Q620M graphic drawing tablet is comfortably designed with rubber grips, which provides you a more natural and lifelike drawing experience. The industry leading 266P
OverviewRadial Controller Protocol is supported with or without the Driver installed.
How to customize the functions of Dial Controller in the Redial mode(Windows 10 or later)?
Select the Start button, then select Settings > Devices > Wheel.
Choose your default tools:
Select the Add button "+" to add a new tool. There's lots of options, from increasing and lowering volume and brightness to zooming and scrolling to switching apps. But you are allowed to add 5 functions at most.
Custom Tools:
Choose which keyboard shortcut you want to use when you rotate left, right, or click dial controller.
App Tools:
Set different functions for different programs or add multiple new tools to the dial controller.

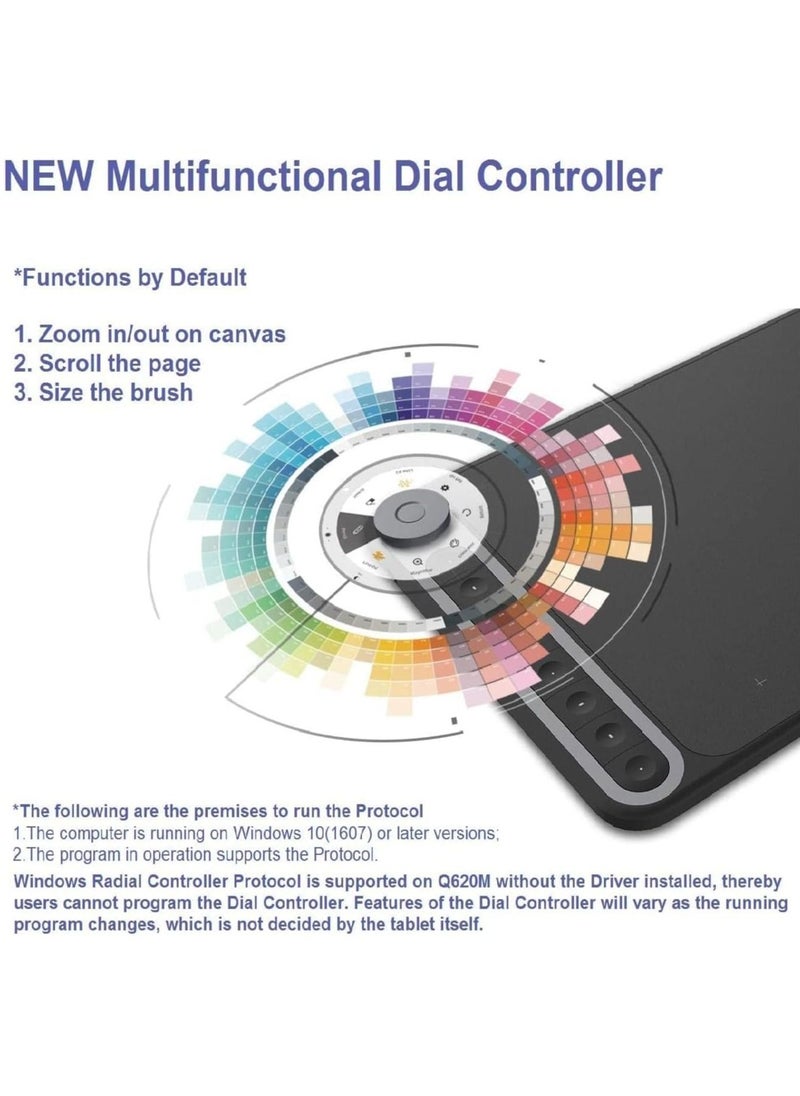

Dial Your Imagination Number
Radial Controller Protocol is supported with or without the Driver installed in Q620M graphics drawing tablet. Page Scrolling,Zoom in/out,change the brush. You can also customize it to your preference.

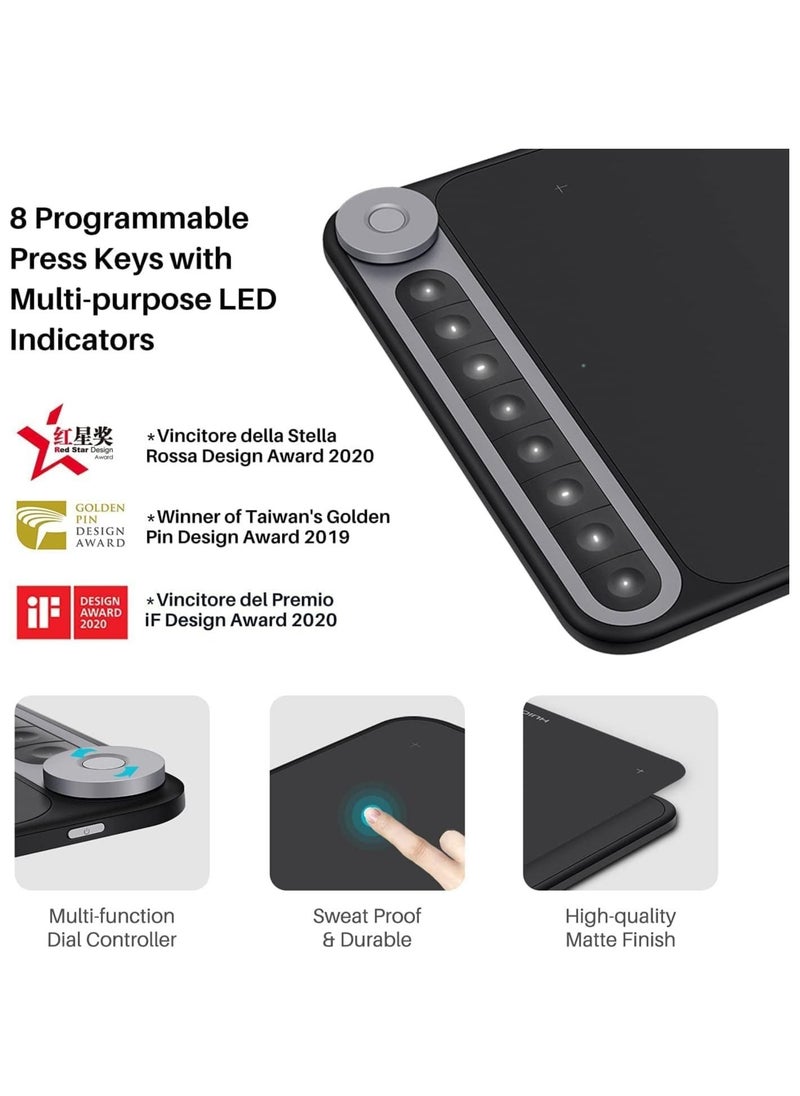

8 Programmable Press Keys
8 programmable press keys are all customizable, which provides you a plethora of ways to tailor your software experience and raise your work efficiency.
Frosted Tablet Board
The frosted finishing is fingerprint-resistant and at the same time mimics the friction between pen and paper, which will bring you more lifelike drawing experience.
large Working Area
Q620M Graphics Drawing tablet comes with 10.5 x 6.5 inches large working area. Anti-Slip Design on the back can prevent the tablet from dropping easily down when you focus on drawing.
±60°Tilt Range 8192 Pen Pressure
Report Rate:5080LPI, Report Rate:266PPS ,Tilt Range:±60, Pen Pressure: 8192 level. It ensures more accurate and detailed presentation. Make your drawing alive. Provide your with pen-on-paper drawing experience.

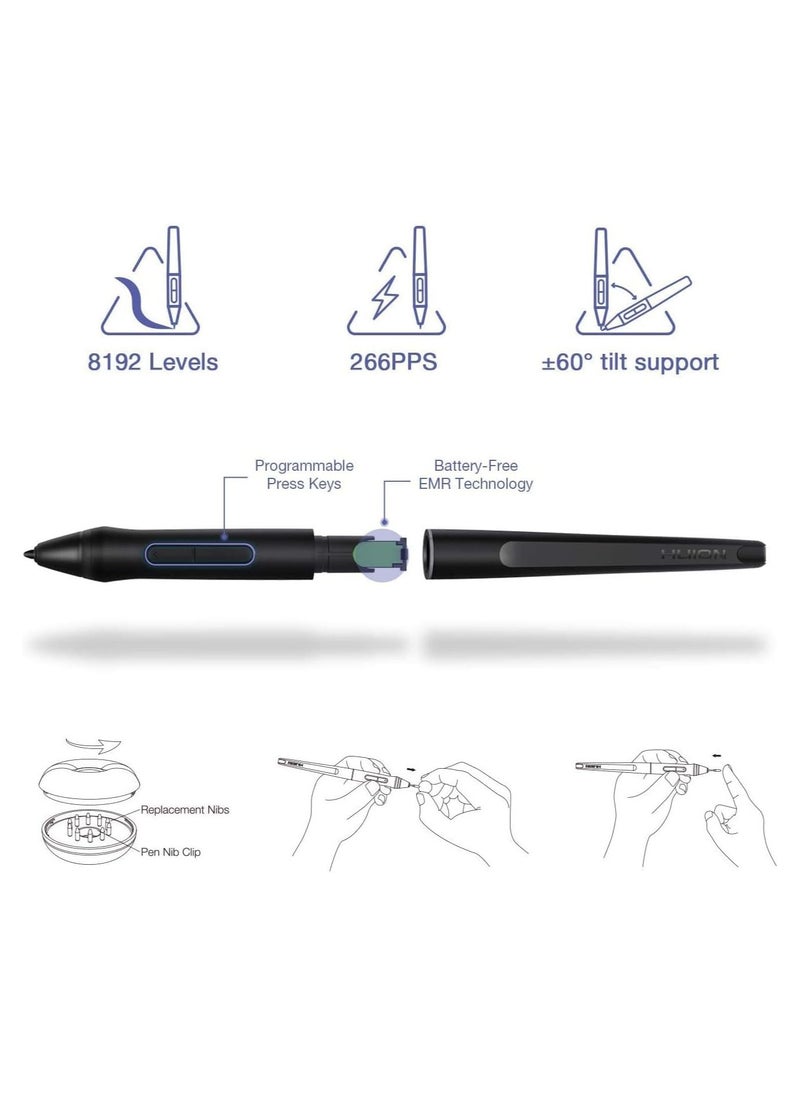

Battery-free stylus
Get rid of the charging cable. 10mm Sendsing Height- the pen and tablet can respond to each other within 10mm of sensing distance. Dual Programmable Buttons- convenient and easy to use.

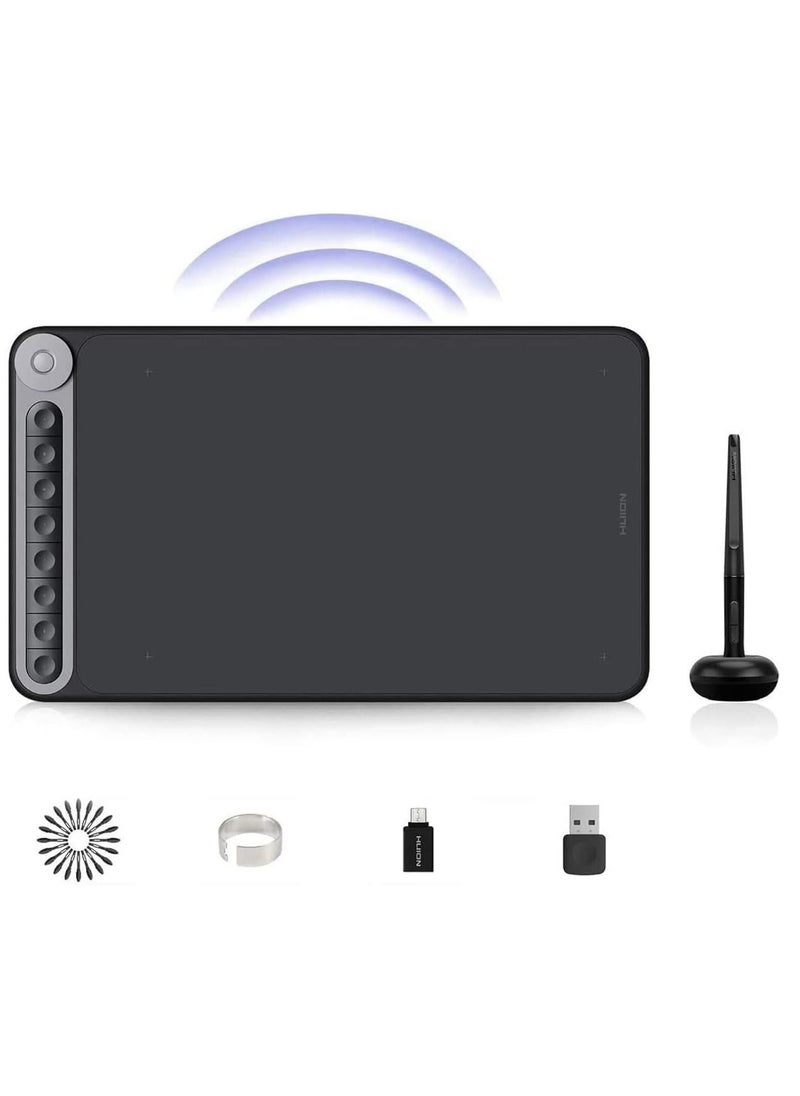

Package Contents
Huion Q620M Tablet (2.4G USB Receiver Inside)
Micro USB Cable
Quick Start Guide
OTG Adapter
Battery-free Pen PW500 (Pen Nibs x 10, Clip x 1 inside the pen stand)
8 LED Light on the Shotcuts
Eight press keys on Q620m are embedded with a LED light in the center respectively, which will serve as indicators of real time battery consumption,low battery and status of the tablet.
Both Left and Right Hand Supported
For Windows: Click Huion driver Panel > Work Area > 180°> Apply.
For Mac OS: Follow the steps above and click the Apple icon > Select “System Preferences” > Click “Display” to enter the “Display Setting” > Set the rotation to 180 °.
Compatibility
Compatible with Windows 7 or above /Mac OS 10.12 or above
Q630M drawing tablet supports various mainstream design and drawing software, including PS, SAI, AI, CDR, etc.
Specifications
Multifunctional dial controller.
Slim and easy to carry with 8mm of thickness.
>233PPS report rate.
8192 pressure sensitivity levels.
2.4G wireless connectivity help to unleash your creativity.
1.2 hours charge, 20 hours work.
8 programmable press keys.
OS support: Windows/macOS.
Appearance
Color:Black
Dimension:375.5 × 220.4 × 8mm
Working Area:266.7 x 166.7mm
Net Weight:666g
Touch:-
Interface:USB-C
Technical Specifications
Digital Pen:PW500
Pen Technology:Battery-Free Electromagnetic Resonance
Pen Resolution:5080 LPI
Pressure Sensitivity:8192Levels
Tilt Support:±60°
Sensing Height:10mm
Report Rate:>233PPS
Accuracy:±0.3mm
Press Keys:8 Programmable Press Keys+Dial
Connection
Automatic Sleep:15mins
Wireless Connectivity:USB 2.4 G
Communication Distance:5-10m(as per surroundings)
Charge Time:about 1.2 hours
Battery Life:about 20 hours
Battery Capacity:1100mAh
OS Compatibility
Windows 7 or later
macOS 10.12 or later
Linux
