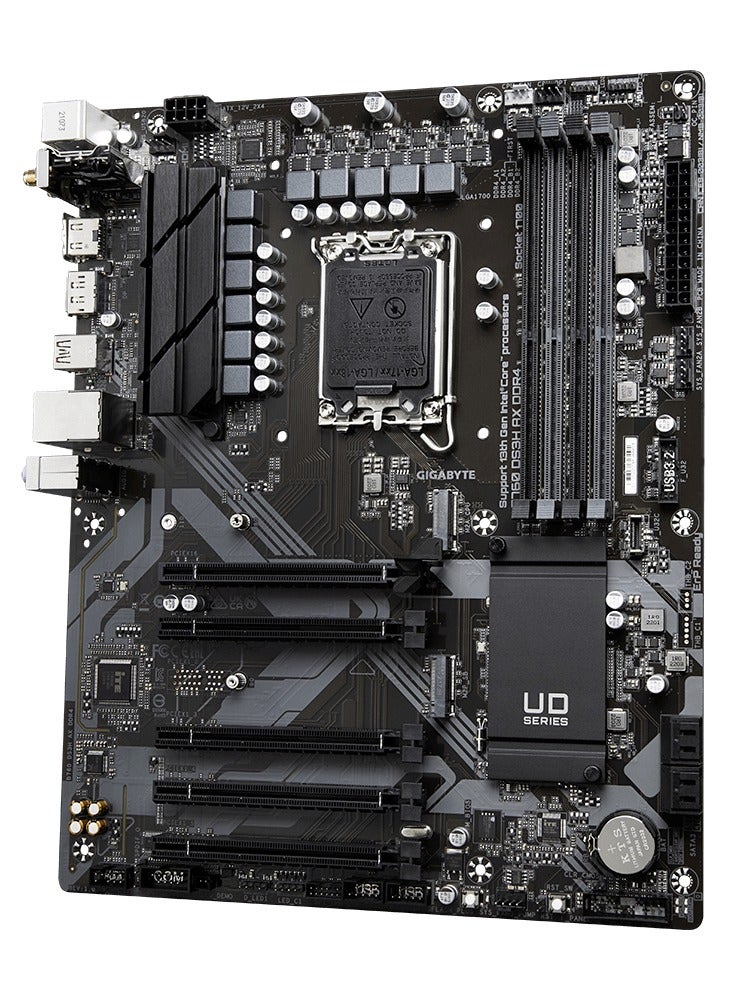

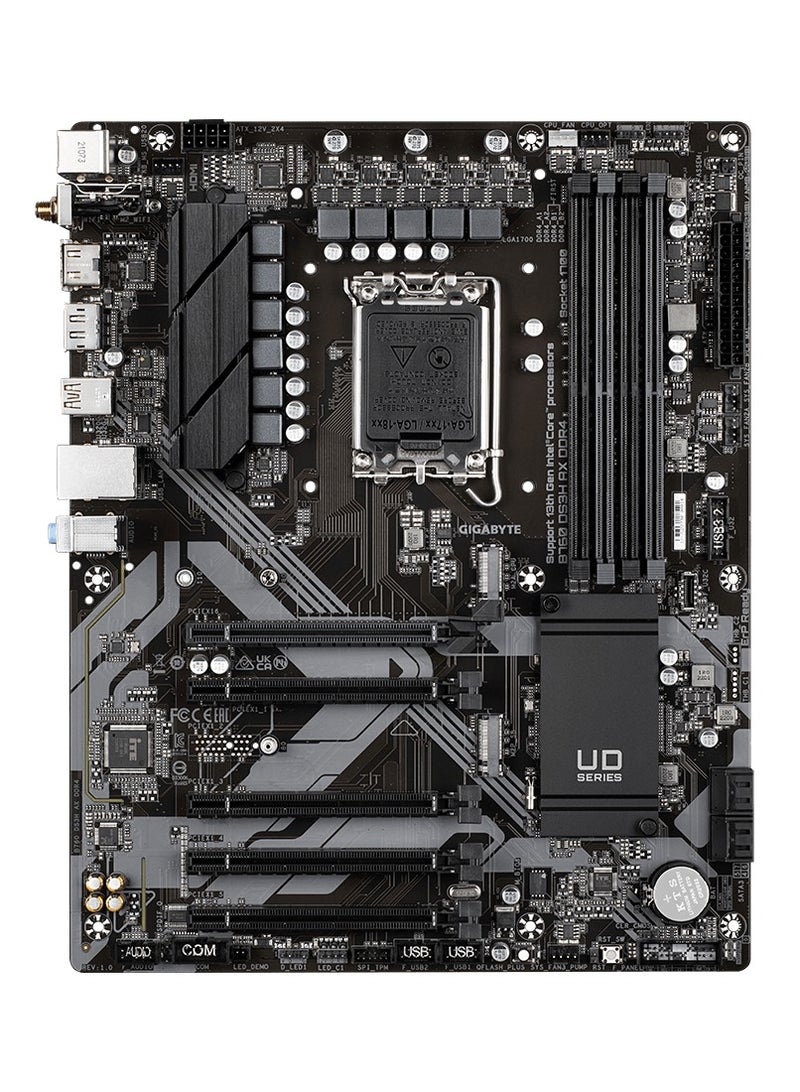

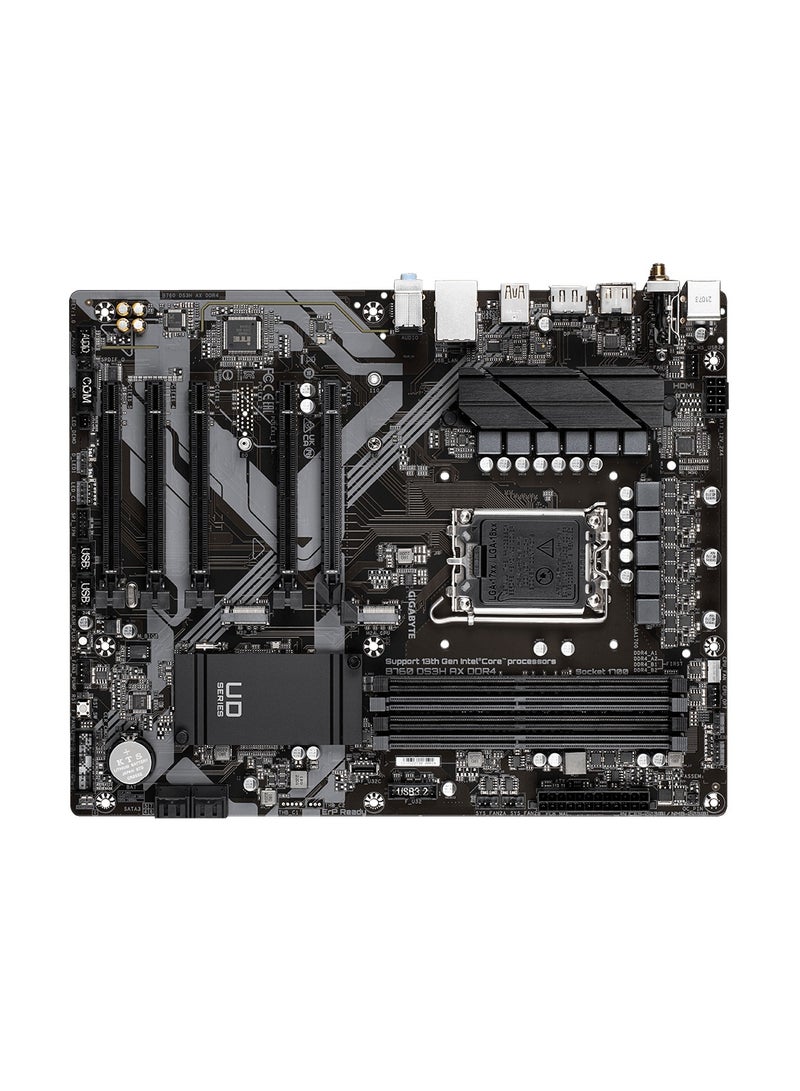

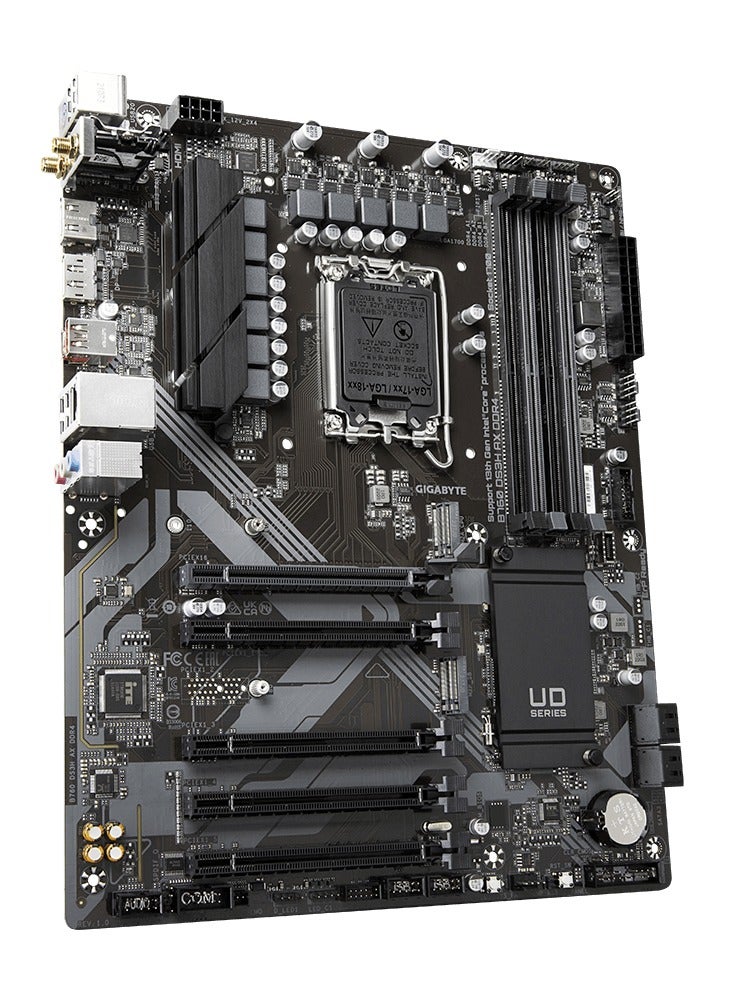

MB GIGABYTE B 760 DS3H AX DDR4 INTEL

CPU

1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
2. L3 cache varies with CPU

(Please refer “CPU Support List” for more information.)

• Chipset

1. Intel® B760 Express Chipset

• Memory

1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

• (Please refer “Memory Support List” for more information.)
• Onboard Graphics
• Integrated Graphics Processor-Intel® HD Graphics support:

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
2. * Support for HDMI 2.1 version and HDCP 2.3.
3. ** Support native HDMI 2.1 TMDS compatible ports.
4. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
5. * Support for DisplayPort 1.2 version and HDCP 2.3

• (Graphics specifications may vary depending on CPU support.)
• Audio

1. Realtek® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
5. Support for S/PDIF Out

• LAN

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

• Wireless Communication module
• AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. LUETOOTH 5.2
3. Support for 11ax 80MHz wireless standard

• Intel® Wi-Fi 6E AX210 (PCB rev. 1.1)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard

• Intel® Wi-Fi 6E AX211 (PCB rev. 1.2)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard

• Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard

• (Actual data rate may vary depending on environment and equipment.)
• Expansion Slots
• CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
2. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

• Chipset:

1. 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1
2. (PCIEX1_1, PCIEX1_3~PCIEX1_5)

• Storage Interface
• CPU:

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

• Chipset:

1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB
• Chipset:

1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
5. 4 x USB 2.0/1.1 ports on the back panel

• Chipset+2 USB 2.0 Hubs:

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x CPU fan/water cooling pump header
5. 3 x system fan headers
6. 1 x system fan/water cooling pump header
7. 2 x addressable LED strip headers
8. 2 x RGB LED strip headers
9. 2 x M.2 Socket 3 connectors
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x S/PDIF Out header
14. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x serial port header
19. 1 x Q-Flash Plus button
20. 1 x reset button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper

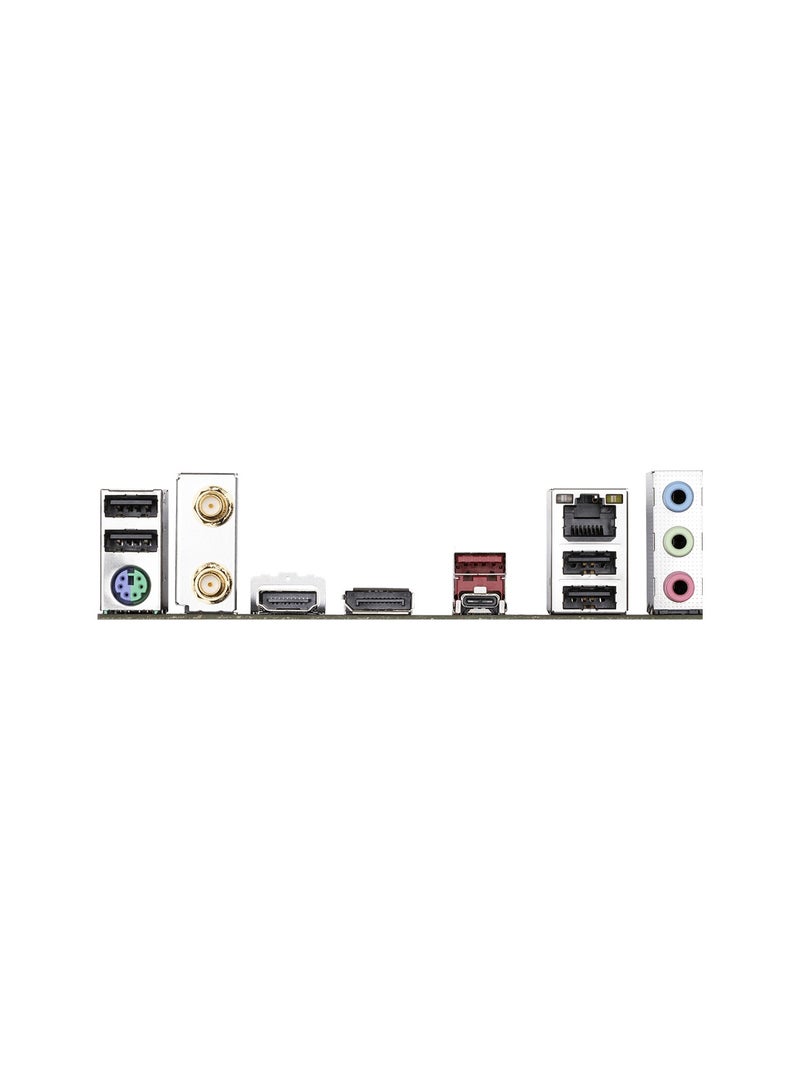

• Back Panel Connectors

1. 1 x PS/2 keyboard/mouse port
2. 2 x SMA antenna connectors (2T2R)
3. 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
4. 1 x USB 3.2 Gen 2 Type-A port (red)
5. 4 x USB 2.0/1.1 ports
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 3 x audio jacks

• I/O Controller

1. iTE® I/O Controller Chip

• H/W Monitoring

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
7. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

• BIOS

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

1. Support for GIGABYTE Control Center (GCC)
2. * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
3. Support for Q-Flash
4. Support for Q-Flash Plus

• Bundled Software

1. Norton® Internet Security (OEM version)
2. LAN bandwidth management software

• Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

• Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
