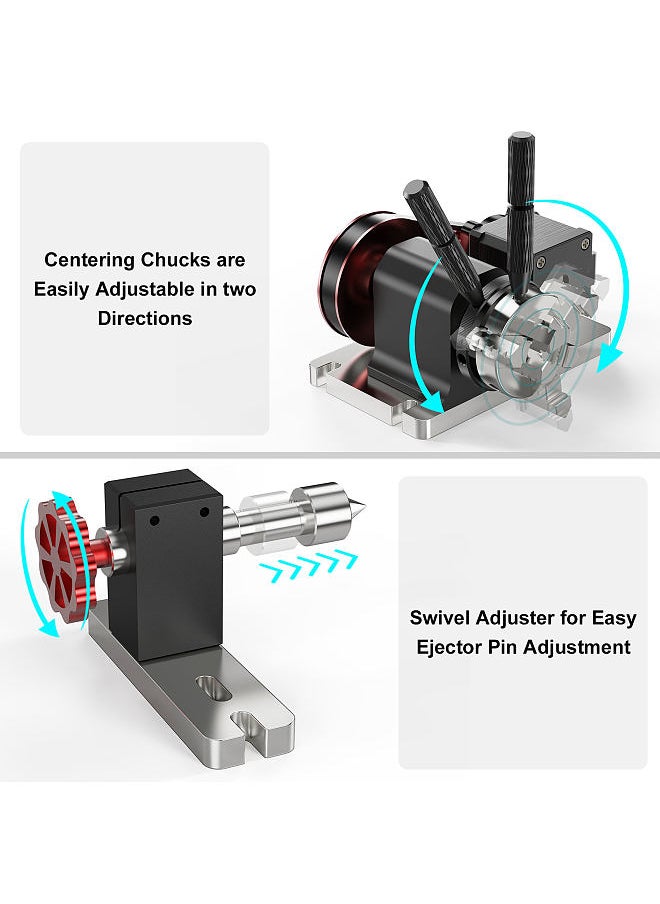

Highlights- Advantages:Rust-resistant coating process, stable three-jaw chuck structure, fine workmanship, sturdy and practical jaws, excellent craftsmanship for maximizing the lifespan.
- Applications:The fourth axis can be used for three-dimensional processing of cylinders, bent pipes, and circles. The fourth-axis engraving machine can be used for carving spirals, scars, bamboo joints, etc.

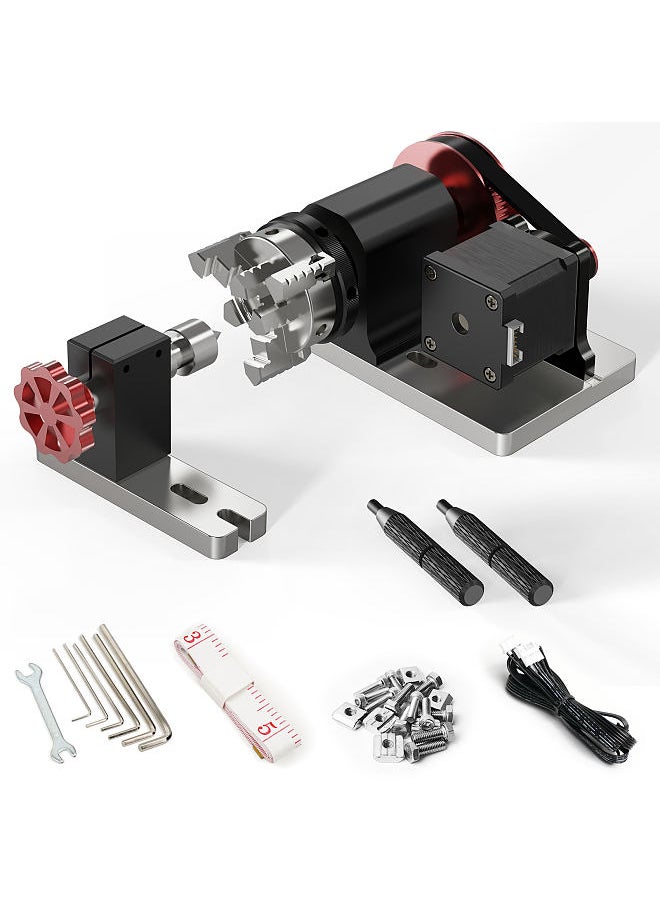

- Unlock Precision: 4th Axis CNC Rotary Module Kit for TTC450.
- Adjustable Dimensions: The clamping diameter for round cylinders is form 4mm to 60mm.
- Wide Application: It can be used to engrave rings, spherical object, cups with handles or irregular items, etc.
OverviewSpecifications:
Maximum clamping diameter for round cylinders:60mm
Minimum clamping diameter for round cylinders:4mm
Chuck reduction ratio:4:1

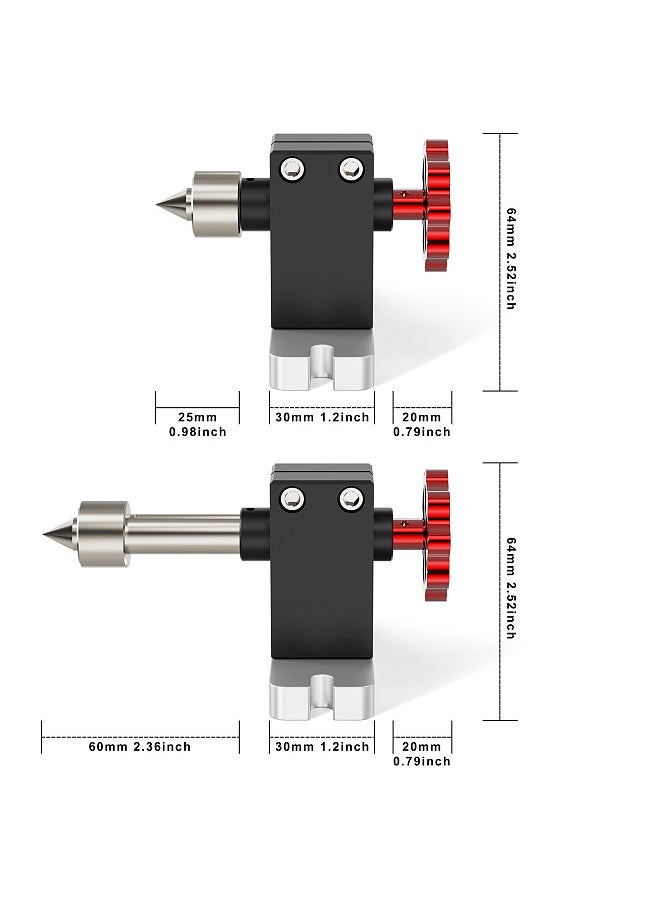

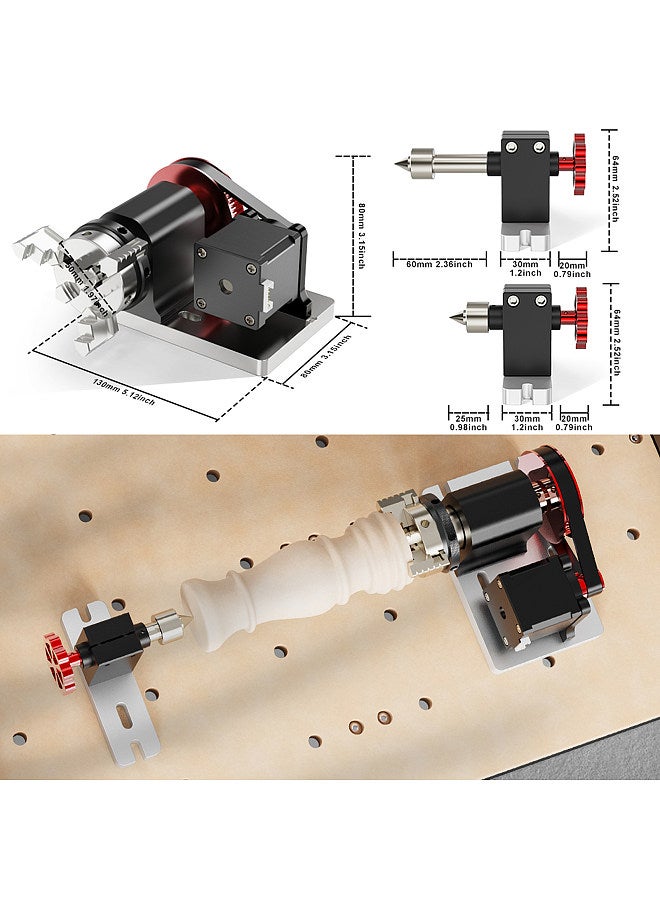

Center height:50mm, Total height: 76.5mm
Minimum clamping length for round cylinders: Depending on the machine's tool head.
Package Size: 250x170x110mm/9.8x6.7x4.3in
Package Weight: 2500g/88.1oz
