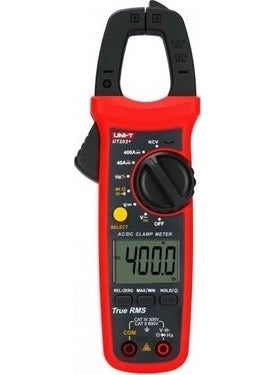

-T Ut 203+ 400 A True Rms Ac/Dc Clamp Ammeter

UT-203+ 400A AC/DC Clamp Meter, series portable automatic series True RMS clamp meter, designed according to EN61010-2010 CAT II600V / CAT III 300V quality safety standard, with full-function fireproof protection, meets the high reliability and high safety operation requirements. SpecificationsRangeUT201+UT202+UT202A+UT203+UT204+AC Current (A)400A±(2%+10)±(2%+10)　±(2.5%+5)　600A　　±(2%+10)　±(2.5%+5)AC Current Frequency (Hz)50Hz~100Hz±(1%+5)±(1%+5)±(1%+5)　　DC Current (A)400A　　　±(2.5%+5)　600A　　　　±(2.5%+5)AC Voltage (V)600V ±(0.8%+5)±(0.8%+5)±(0.8%+5)±(0.8%+5)±(0.8%+5)AC Voltage Frequency (Hz)10Hz~10kHz±(1%+5)±(1%+5)±(1%+5)　　10Hz~60kHz　　　±(0.5%+2)±(0.5%+ 2)DC Voltage (A)600V ±(0.5%+2)±(0.5%+2)±(0.5%+2)±(0.5%+2)±(0.5%+2)Resistance (Ω)40MΩ±(0.8%+2)±(0.8%+2)　±(0.8%+2)　60MΩ　　±(0.8%+2)　±(0.8%+2)Capacitance (F)4mF　±(4%+5)　　　40mF　　　±(4%+5)　60mF　　±(4%+5)　±(4%+5)Temperature (℃)-40℃~1000℃　±(1.5%+5)　　±(1.5%+5)Frequency (Hz)10Hz~10MHz　　±(0.1%+4)±(0.1%+4)±(0.1%+4)Other Features:Display count　40004000600040006000Auto range　√√√√√Jaw Opening　28mm28mm28mm28mm28mmTrue RMS　√√√√√NCV (Non-contact Phase Control)　√√√√√Live Wire Test　　　√　√Continuity test　√√√√√Diode　√√√√√MAX/MIN　√√√√√√Relative mode　　√√√√√Zero mode　　　　√√Data hold　√√√√√√Low Battery Indicator　√√√√√Auto Power Off　√√√√√General Specifications:Power1.5V Battery (R03) x 2Display37mm x 25mmProduct ColorRed & Dark GrayWeightUT201+/UT202+/UT202A+：248g; UT203+/UT204+:235gDimensions215mm x 63mm x 36mmStandard AccessoriesBattery, test lead set, Temperature probe(UT202+/UT204+)
