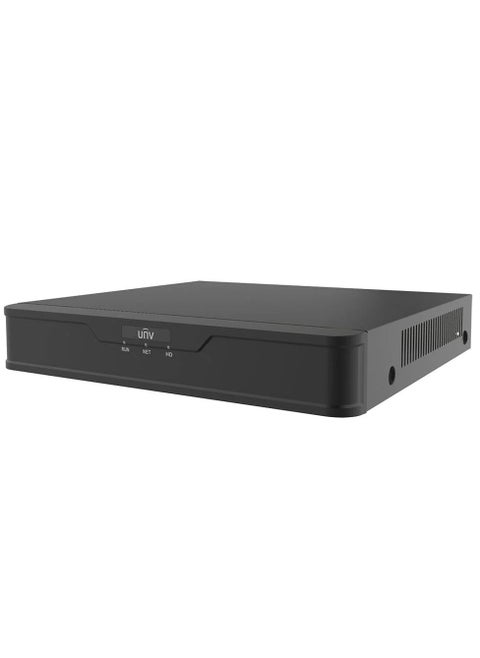

Uniview XVR301-04G3 Up To 4K XVR 4CH

• Brand: Uniview
• Model: XVR301-04G3
• Type: XVR
• Video/Audio
• Analog Video Input: 4-ch, BNC
• Video Live: 4MP
• Video Recording: 1080P
• IP Video Input: 2-ch(only IP up to 6ch), each channel up to 4MP
• Video Inputs: AHD/TVI/CVI/CVBS
• Frame Rate: Main Stream: 5MP Lite@12fps / 4MP Lite@15fps / 1080P@15fps / 720P@25fps - Sub stream: D1@12fps / D1@15fps / D1@15fps / D1@25fps
• VGA/HDMI Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
• Decoding Capability: Analog: 2 x 5MP Lite@12, 2 x 4MP Lite@15, 2 x 1080P@15 - IP: 1 x 4MP@30, 2 x 1080P@30
• Audio Output: 1-ch, RCA
• Two-way Audio: 1-ch, RCA
• Network
• Incoming Bandwidth: 16Mbps (Up to 24Mbps after all analog channel conversion)
• Outgoing Bandwidth: 48Mbps
• Remote Users: 128
• Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
• Interface
• HDD Type: 1x SATA Interface
• Capacity: Up to 8TB for each HDD (The Maximum HDD Capacity Varies With Environment Temperature)
• Network Interface: 1x RJ45 10M/100M Self-Adaptive Ethernet Interface
• USB Interface: Rear Panel: 2 x USB2.0
• General
• General Alarm: Motion Detection
• Operating Condition: Temperature: -10°C ~ + 55°C ( +14°F ~ +131°F ) - Humidity: ≤ 90% RH(non-condensing)
• Power Supply: 12V DC
• Power Consumption: ≤ 8 W( without HDD )
• Dimensions: 260 × 226 × 47mm
