Highlights- LED 3 digits display of voltage, current and power, high precision with single channel output.
- Voltage stabilization, current limiting, simple operation feature the DC power supply.
- Over voltage conservation(OVP), over current conservation(OCP) with over temperature conservation.
- Continuously adjustable output of voltage and current with fine regulating and coarse regulating.
- Automatic conversion of voltage stabilizing and current stabilizing, adopt current limiting conservation mode, and any external service state will not be damaged.
OverviewSpecifications:
Plug Type: UK
Model: NPS3010W
Output Voltage: 0～30V
Output Current: 0～10A
Output Power: 300W
WORKING ENVIRONMENT:
Input Voltage: AC 230V/115V ± 10%; 50Hz/60Hz
Working Temperature: 0~40℃; Relative Humidity: ＜80%RH
Storage Temperature: -10~70℃; Relative Humidity: ＜70%RH
CONSTANT VOLTAGE CV:
Voltage Stability: 0.1% ± 3mV
Load Stability: 0.2% ± 3mV
Ripple Voltage: =0.5% Vp-p
0 to rated voltage continuously adjustable
CONSTANT VOLTAGE CC:
Current Stability: 0.1% ± 3mA
Load Stability: 0.2% ± 3mA
Ripple Current: =0.5% Vp-p
Recovery Time: =500μS
Temperature Coefficient: =100ppm/℃
0 to rated current continuously adjustable
DISPLAY:
Three-window digital tube display: voltage, current, power
Display Accuracy: 0.5% ± digits
Display Resolution: voltage 0.1V; current 0.01A; power 0.1W/1W
SIZE AND WEIGHT:

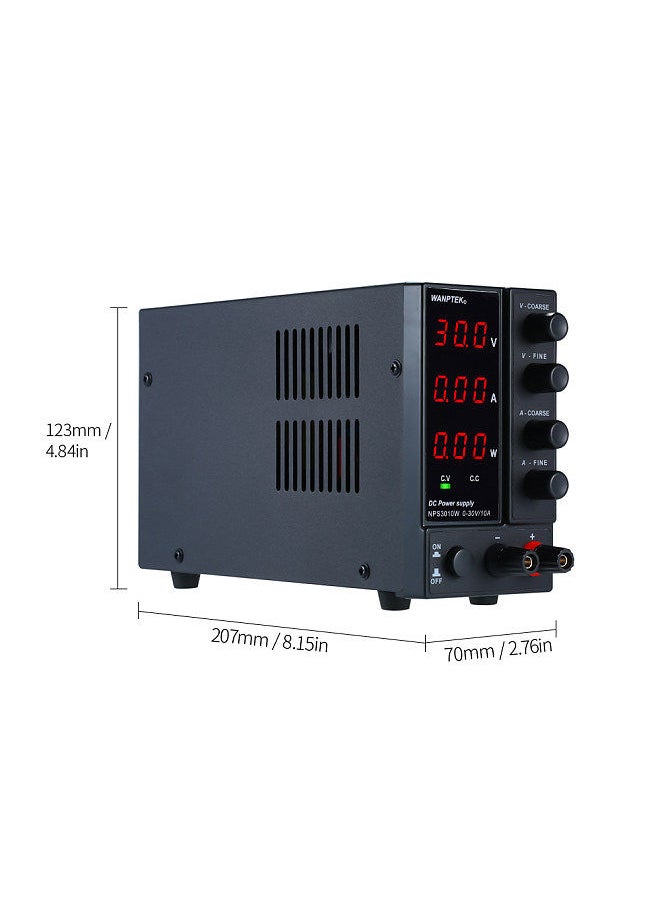

Item Size: Approx. 230 * 130 * 70mm / 9.06 * 5.12 * 2.76in
Item Weight: 1372g / 48.39oz
Package Weight: 1550g / 54.69oz
Package Size: Approx. 29 * 18 * 10.5cm / 11.42 * 7.09 * 4.14in
