MFRC522 RFID Module Reader Sensor with Cards and Tags, MFRC-522 RC522 RFID Kit, RF IC Card Induction Support Arduino Raspberry Pi

الميزات الأساسية

• MFRC522 is a highly integrated read and write chip which is applicable to IC Type-A / 13.56MHz contactless communications.
• It is a non-contact read and writer card chip, low voltage, low cost and small size, is a better choice for smart meters and portable handheld devices development.
• MF RC522 completely integrated in all types of 13.56MHz / IC Type-A passive contactless communication methods and protocols.
• Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition, support fast CRYPTO1 encryption algorithms, terminology validation and compatible with MIFARE products.
• MFRC522 support MIFARE and Rubik series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
• As a highly integrated 13.56MHz card reader new family of chips, there are many similarities between MF RC522, MF RC500 and MF RC530, but also have many differences. Communication between it and the host SPI mode helps to reduce the connection, reduce PCB board size and cost.
• Operating Frequency: 13.56MHz, Supported card types: Rubik IC Type-A, Mifare1 S50, Mifare1 S70, Mifare UltraLight, Mifare Pro, Mifare Desfire
• Current: 13-26mA / DC 3.3V, Idle Current: 10-13mA / DC 3.3V, Sleep current: <80uA, Peak current: <30mA
• Dimensions: 40mm × 60mm, Data Transfer Rate: Max. 10Mbit/s

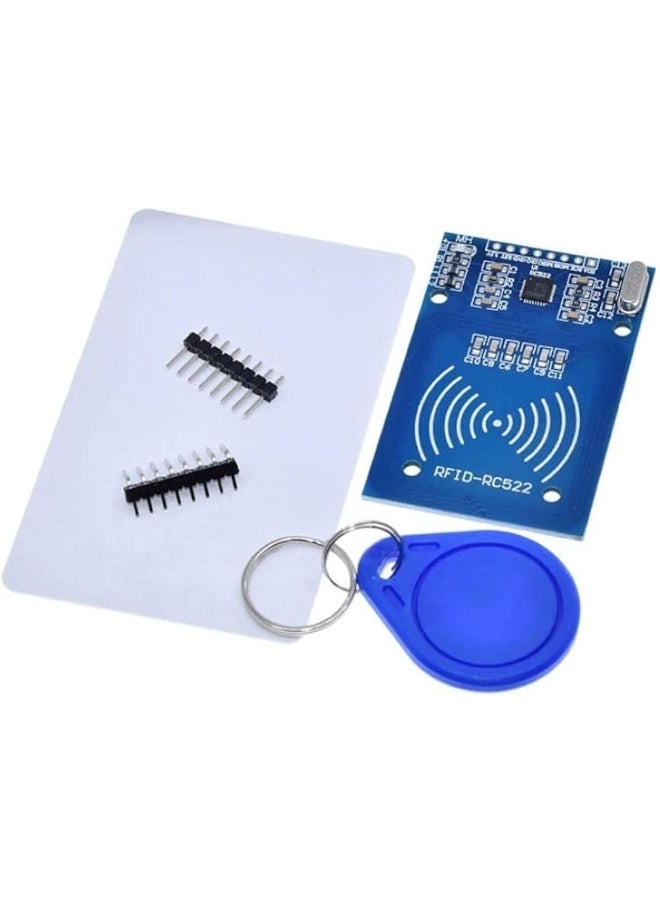

• 1 x Rubik RFID-RC522 Module, 2 x IC Type-A Cards (All Sector Writeable), 2 x IC Type-A Tags(as shown keychain shape); Vertical curved row of pins each one
