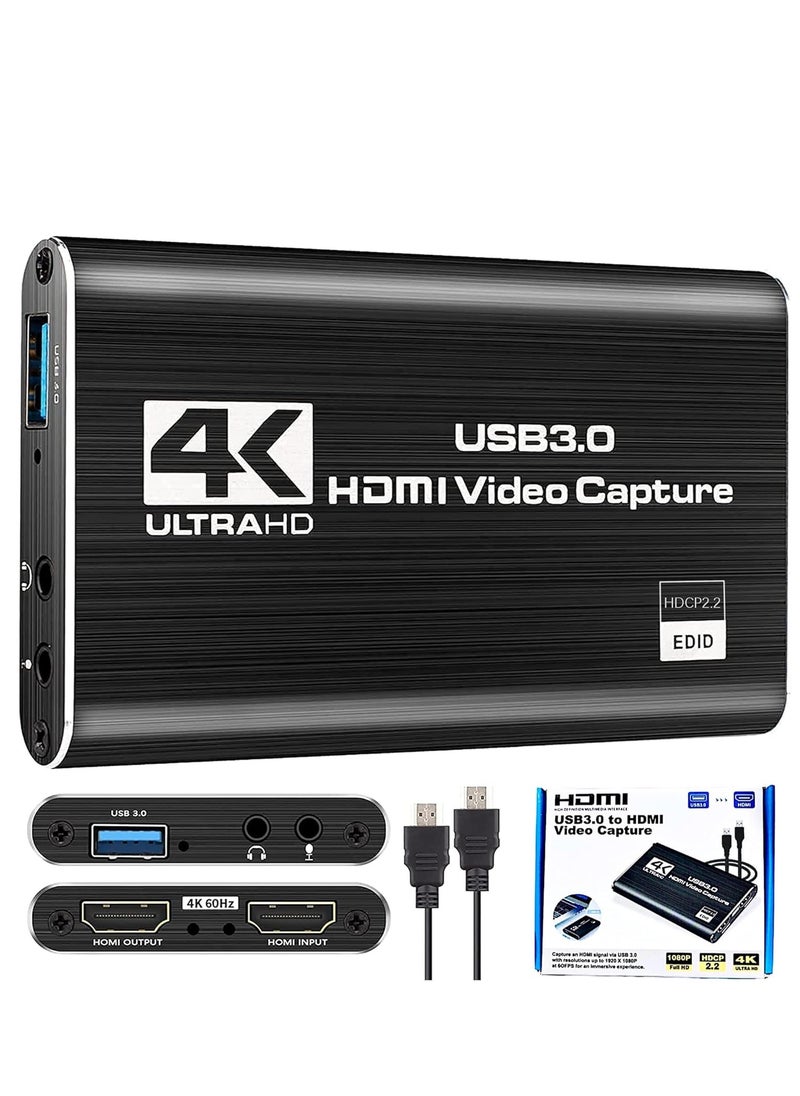

Highlights- USB 3.0 Capture Cards: 4K HDMI to USB3.0 video recording card, easy to carry, superior performance, good compatibility, simple installation, and powerful.
- HDMI Game Capture: The game video capture device is stylish, compact and unified. The device is easy to install and carry, making it ideal for live streaming, conference rooms, video recording, etc.
- 1080P 60fps: Record video signal up to 1080P/60Hz, support HDMI 4K 30Hz input.
- HDMI Loop Port: There is no delay when using the HDMI loop port. When you are playing a live game, the HDMI loop port is very practical.
- Compatibility: Compatible with Windows 7, 8, 8.1, 10 or later, Linux, Mac OS.
Overview【Product Specifications】
1. Input power interface: 1×HDMI interface:
2. Output interface: USB3.0 port 300-350Mbps
3. HDMI input: 4K/30Hz, 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P, 1280×1024, 1280×960, 1024×768, 800×600, 640×480
4. HDMI audio input: LPCM audio signal.
5. HDMI input format: compatible with HDMI1.4 standard, maximum data transfer rate supports 225MHz 4K/30Hz, 12bit deep color;
6. Output format resolution: 640x480/720x480/720x576/800x600/1024x768/1280x720/1280x960/1280x1024/1366x768/1360x768/1440x900/1400x900/1680x1050/1920x1080
Shooting frame rate: 25/29.97/30/50/59.94/60fps;
7. Video sample rate: HDMI: 165MHz
8. Audio and video capture: compatible with UVC (USB Video Class) and UAC (USB Audio Class) standards;
9. Output color space: WUV, RGB;
10. Support operating system: Windows 7, 8, 8.1, 10 or later, Linux, Mac.
11. Software compatibility:
Adobe Flash Media Live Encoder (Windows, OS X);
RealProducer Plus (Windows); VLC (Windows, OS X and Linux).
QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, BootPlayer and more.
12. Operating temperature: 0-70℃.
13. Storage temperature: -20-120℃.

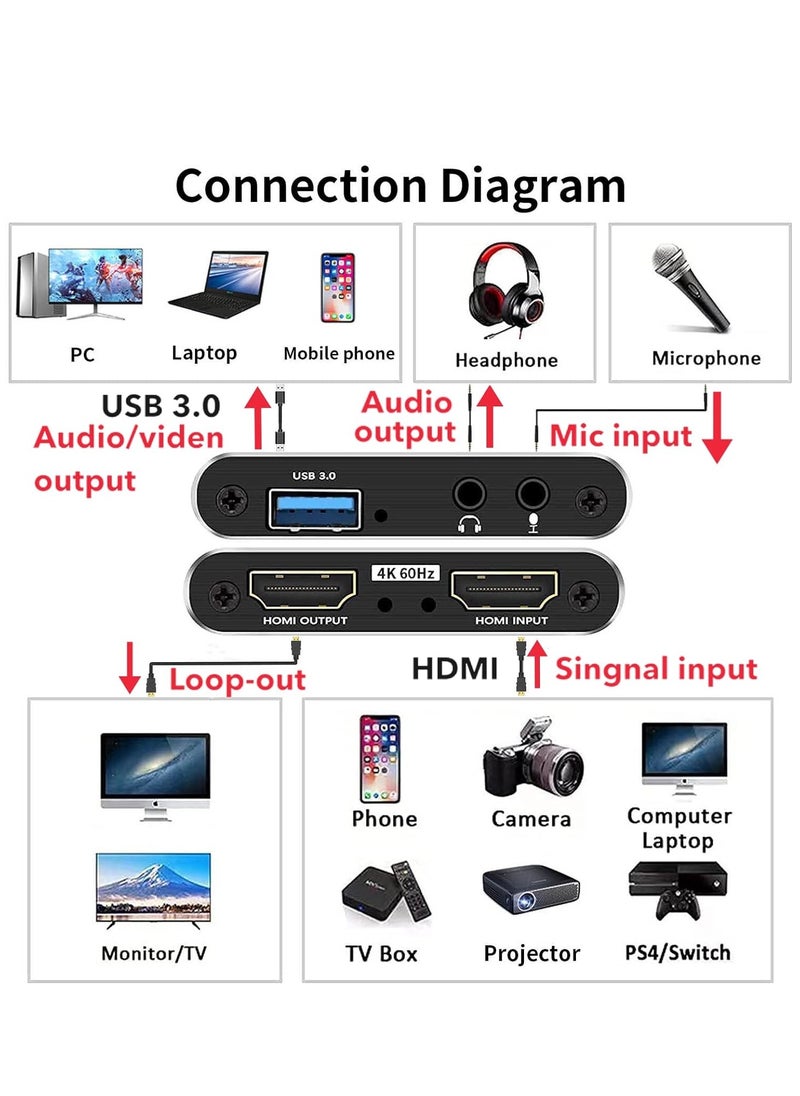

【Interface Description】
1. Signal indicator: When the device captures video normally, the indicator lights up.
2. Power indicator: When the device is connected to the computer's USB port, the indicator lights up.
3. HDMI input: This slot is where you can connect HDMI output sources such as cameras, camcorders, game boxes, and IPTV boxes.
4. USB3.0 output: This slot is where you connect to the USB3.0 input of your computer or notebook.
Please note that the outer packaging of the product is a brown box, and there is no change to the inner product.
