Highlights- Dual Frequency Programmable:can read both proximity and contactless smart cards in one reader.
- Support any 125kHz or 13.56MHz tags or labels for other forms of secure authentication and identification.
- With flash memory,it allows users to quickly configure the readers output to meet their needs.
- With the latest configuration utility,it can be pre-configure in different output formats.
- Multi-technology reader delivers flexibility to any customer,integrator or end user struggling with different card technologies.

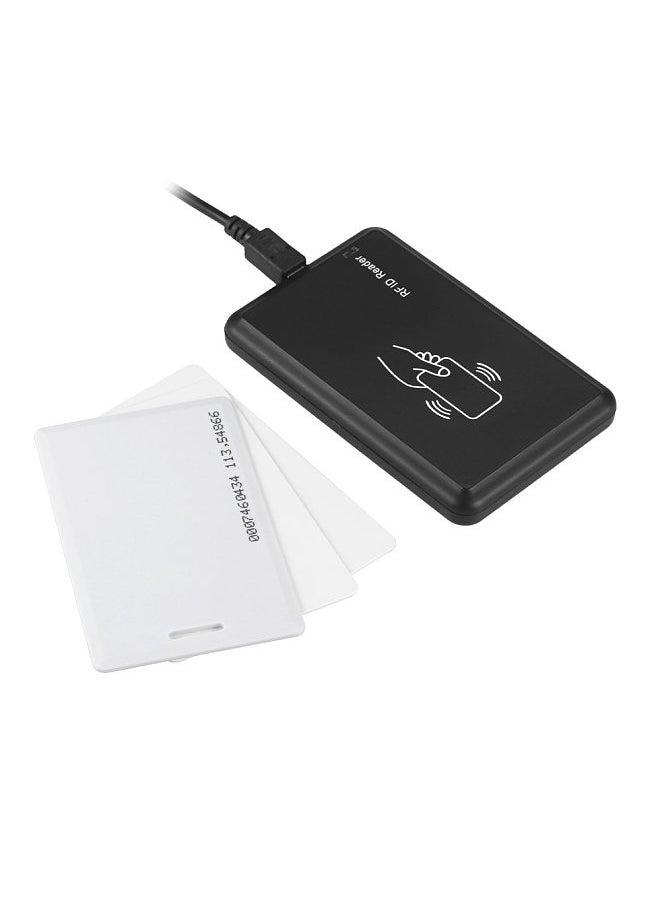

OverviewRF DR-300 is a dual frequency programmable desktop card reader that provides the advantages of reading both proximity and contactless smart cards in one reader.This reader allows users to leverage their employee ID badges,or any 125 kHz or 13.56*tags or labels,for other forms of secure authentication and identification throughout the workplace.
Features:
Dual Frequency Programmable:can read both proximity and contactless smart cards in one reader.
Support any 125kHz or 13.56MHz tags or labels for other forms of secure authentication and identification.
With flash memory,it allows users to quickly configure the readers output to meet their needs.
With the latest configuration utility,it can be pre-configure in different output formats.
Multi-technology reader delivers flexibility to any customer,integrator or end user struggling with different card technologies.
Perfect for enrollment into third party software or for single sign-on integrators.

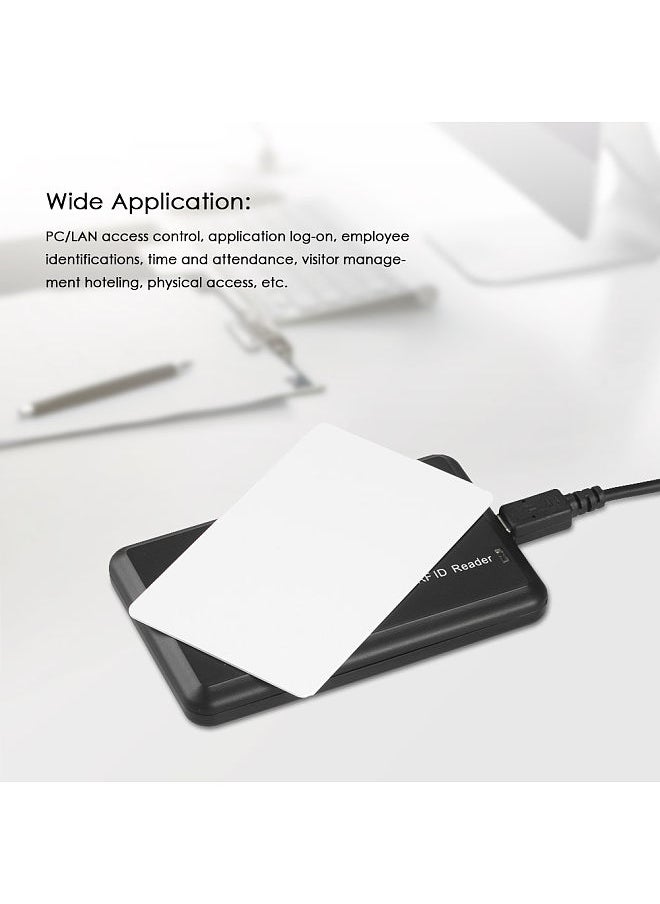

Wide Application:PC/LAN access control,application log-on,employee identifications,time and attendance,visitor management hoteling,physical access,etc.
Support Card:
125KHz:For EM4100,ROSSLARE
13.56MHz:For MIFARE Classic CSN,DESFire CSN,DESFire EV1*MIFARE Plus CSN,MIFARE Ultralight CSN,XceedID MIFARE CSN
Specifications:
Housing Material: plastic
Color:black
Operating Frequency:125KHz & 13.56MHz
Typical Maxi.Read Range:2.5~7.6cm / 1.0~3.0'' (dependent upon proximity card type and environmental conditions)
Current Consumption:USB units:Typical 70mA,maxi.100mA
Indicators:2*indicators & beeper
Power Supply:USB self-powered
Operating Temperature Range:-22~150°F / -30~65°C
Operating Humidity Range:5%~95% relative humidity,non-condensing
Storage Temperature Range:-40~185°F / -40~85°C
USB Cable Length:120cm / 47.2in
Card Reader Size:9.8 * 6.2*1.5cm / 3.8 * 2.4 * 0.6in
Card Reader Weight:44g / 1.6oz
Package Size:13.7 * 9.2*3.2cm / 5.4 * 3.6*1.2in
Package Weight:113g / 4oz

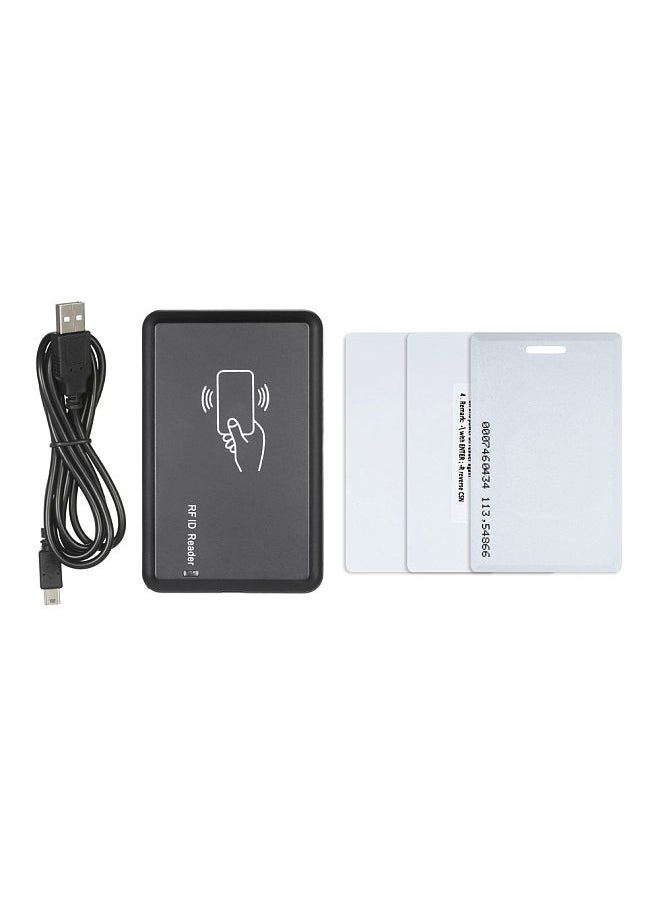

Package List:
1*Card Reader
1*Configure Card
2*White Test Card
