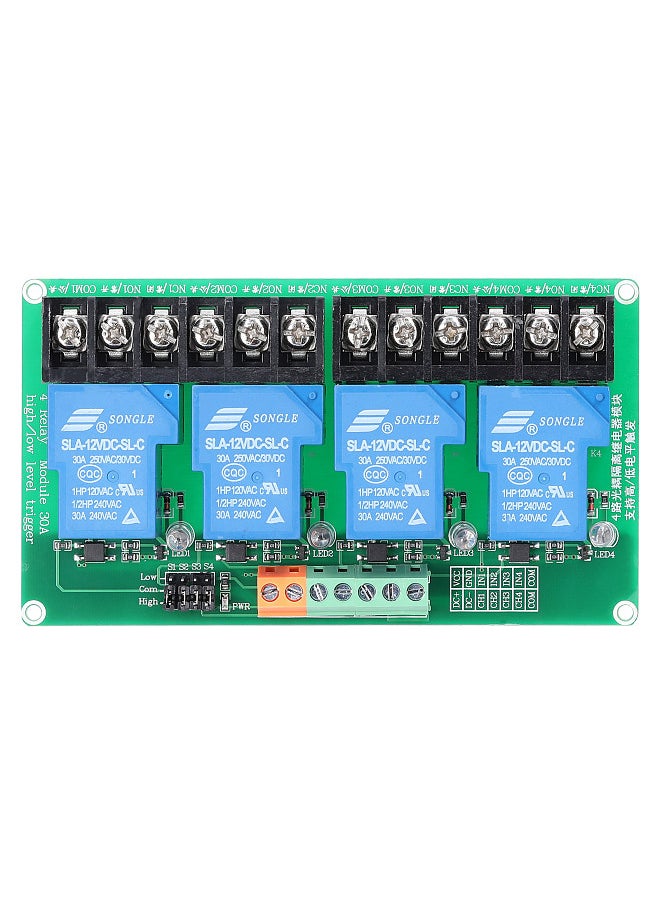

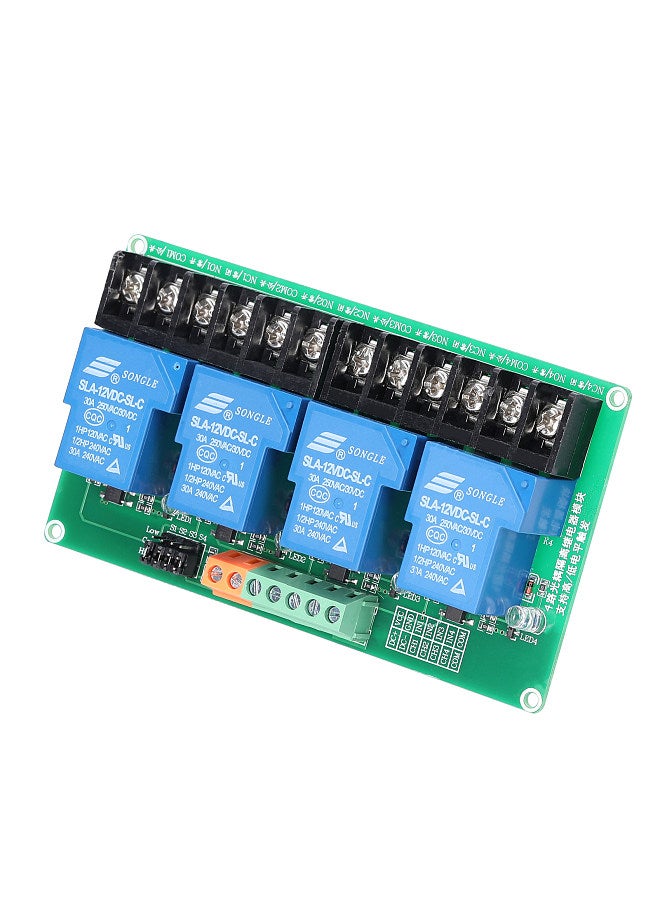

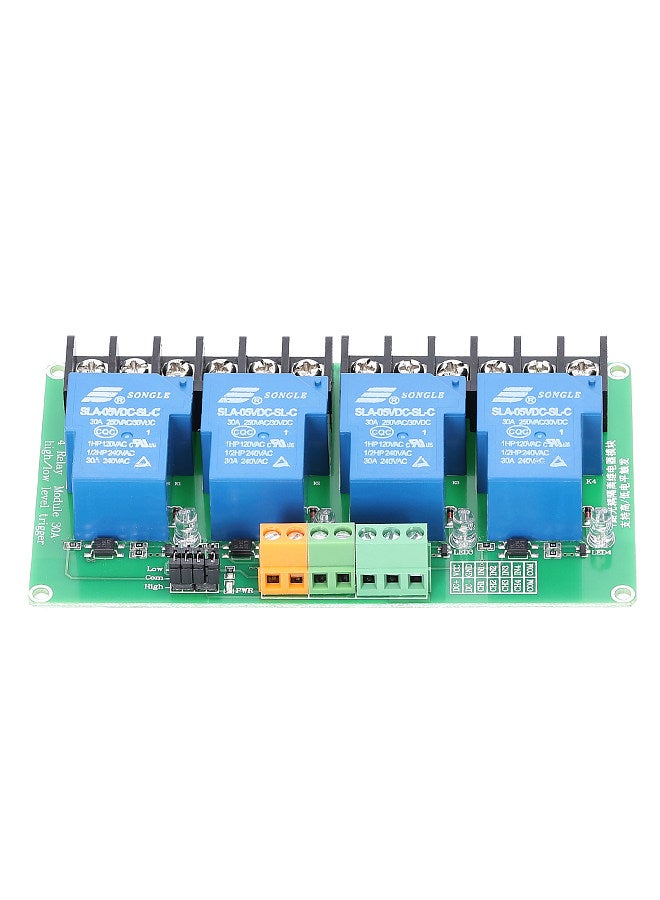

Highlights- This module uses a double-sided printed circuit board, and the layout of the entire module is reasonable and beautiful.

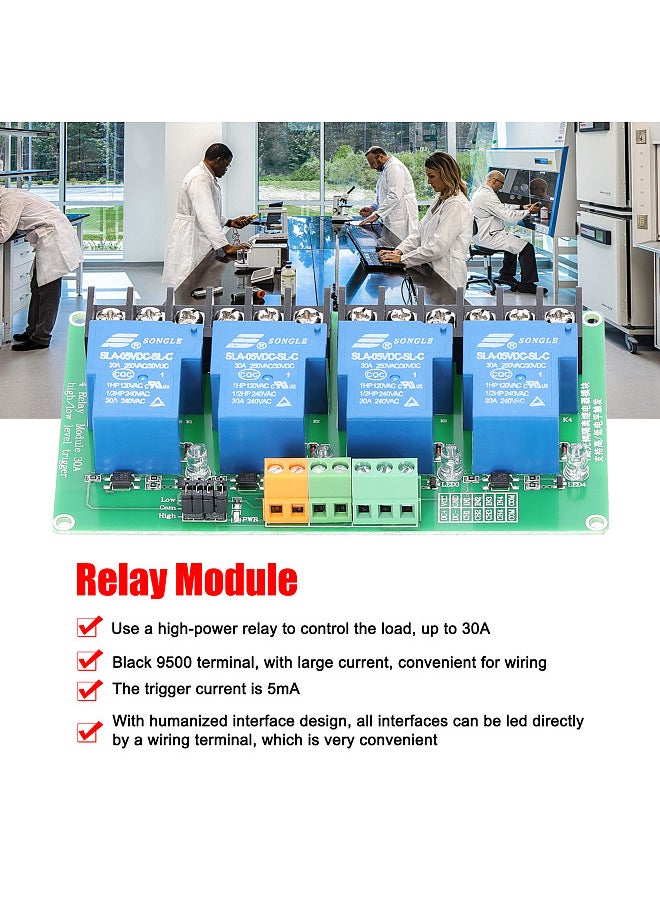

- Use a high-power relay to control the load, up to 30A.
- In the 4-channel design, each channel has light coupling isolation, with the strong ability to resist interference.
- Black 9500 terminal, with large current, convenient for wiring.
- Each channel is equipped with a relay switch LED indicator light, visible on and off.
OverviewSpecifications:
Name: Relay Module
Material: plastics

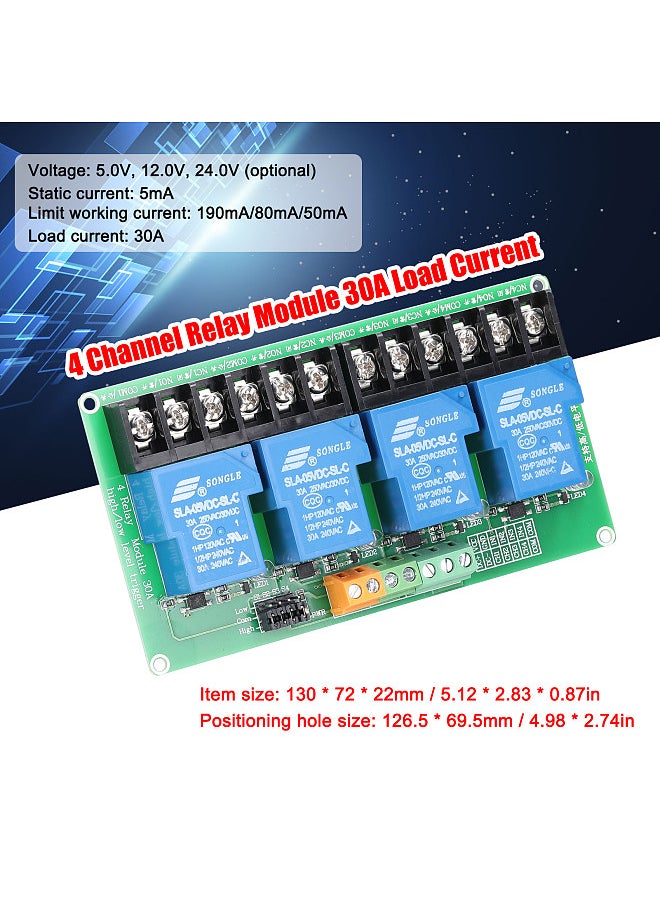

Voltage: 5.0V, 12.0V, 24.0V (optional)
Static current: 5mA
Limit working current: 190mA/80mA/50mA
Triggered: Low level trigger; High level trigger; Trigger voltage ranges
Refer to the following
Load voltage: DC30V or AC250V
Load current: 30A
Relay lifespan: More than 100,000 times
Positioning hole size: 126.5 * 69.5mm / 4.98 * 2.74in
Item size: 130 * 72 * 22mm / 5.12 * 2.83 * 0.87in
Item weight: 165g / 5.82ounce
Package size: 180 * 140 * 30mm / 7.09 * 5.51 * 1.18in
Package weight: 170g / 6.00ounce
