Highlights- 2. {High Resolution}: Supports HDMI 2.0 and HDCP 2.2. With resolution up to 4K@60Hz (RGB/YUV 4:4:4) you can enjoy a wonderful visual viewing.
- 3. {Multiple Switching Methods}: Control the matrix converter with RS232 or IR remote control to suit different usage scenarios.

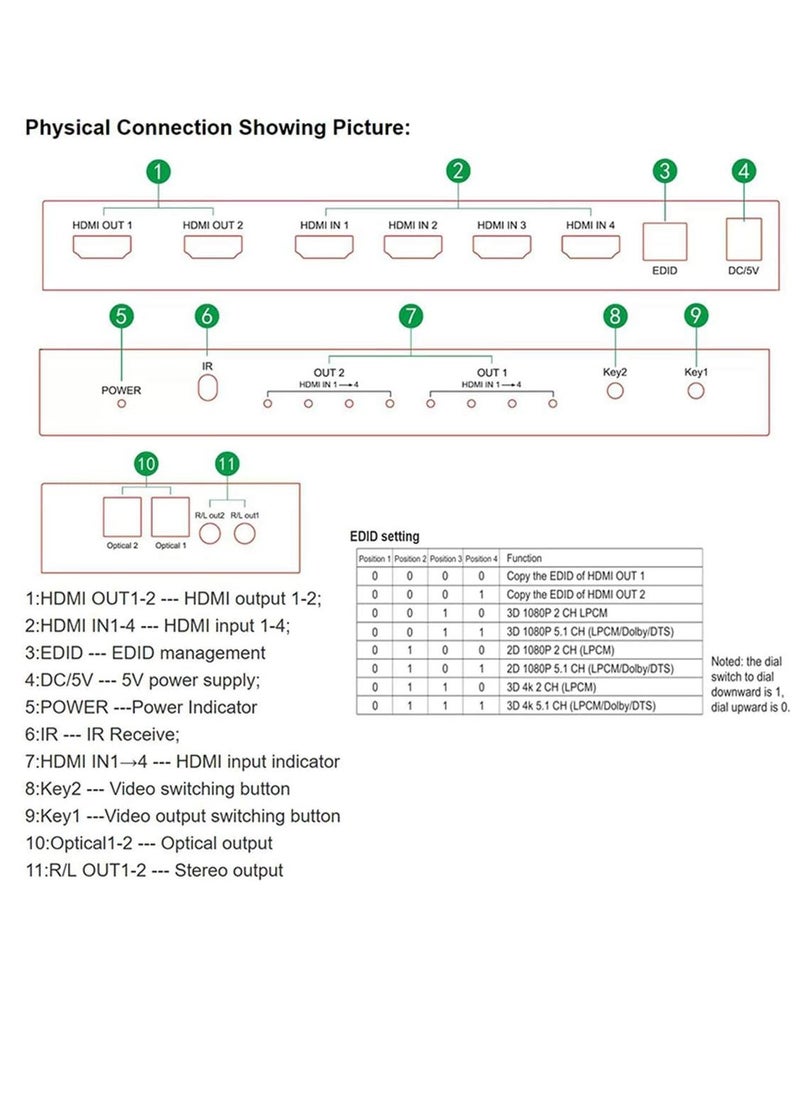

- 4. {Widely Compatible}: Compatible with most HDMI sources and receivers through smart EDID management.
OverviewFeatures:

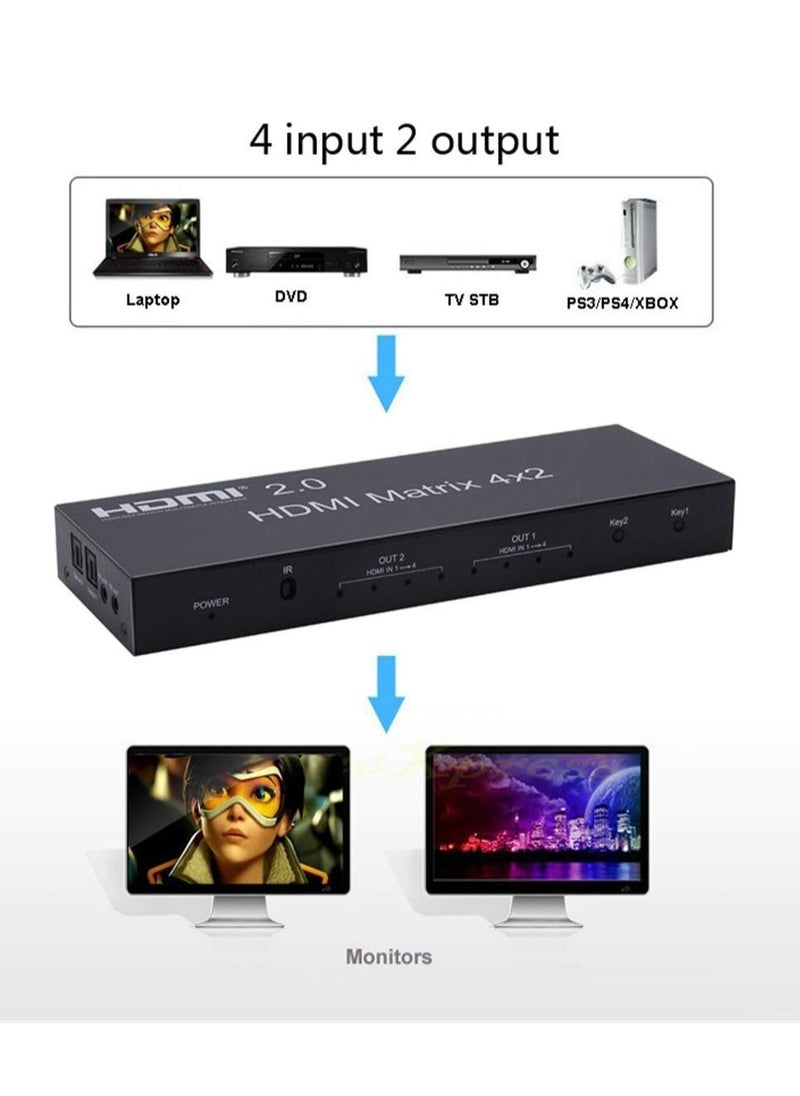

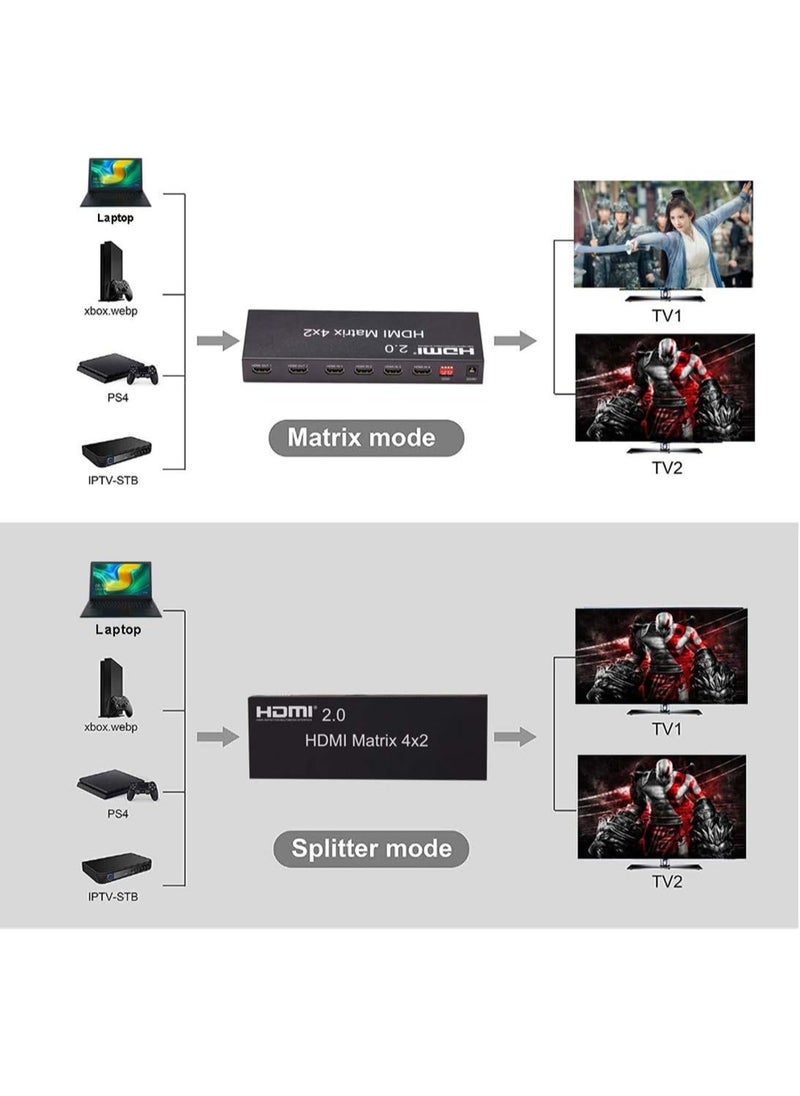

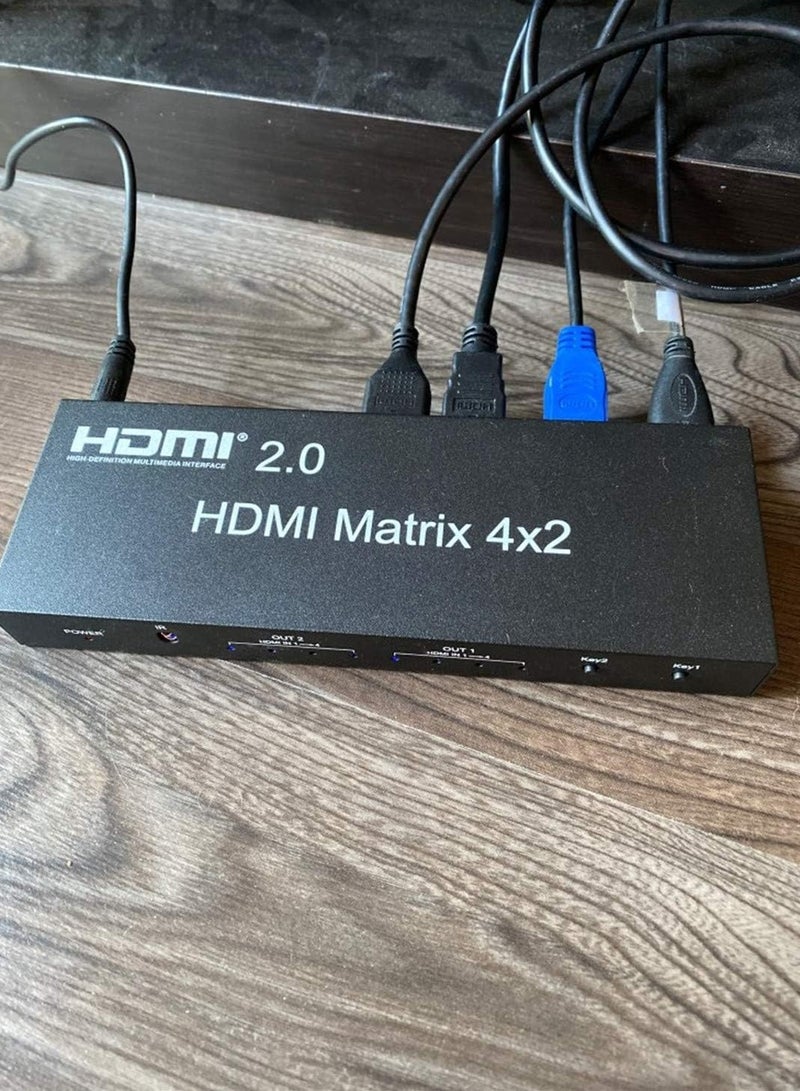

The HDMI 2.0 4x4 matrix can connect four HDMI signal sources with four displays at the same time. It can split or switch four HDMI signals easily and freely on four HDMI compatible displays or projectors. Additional connection for IR receiver, IR emitter, RS232 for remote control is provided.
The HDMI 4x4 matrix has the ability of equalization and amplification to ensure that the HDMI signal can be transmitted through a long cable without quality loss. This HDMI matrix provides solutions for digital entertainment center, HD TV, retail location, displays, HD TV, STB, DVD factory, projector, noise, space concerns, security, data center control, information distribution, school and corporate training environments.
* Ultra-small structure
* Stable and reliable
* Economical and cost-effective
* Support 3D technology;

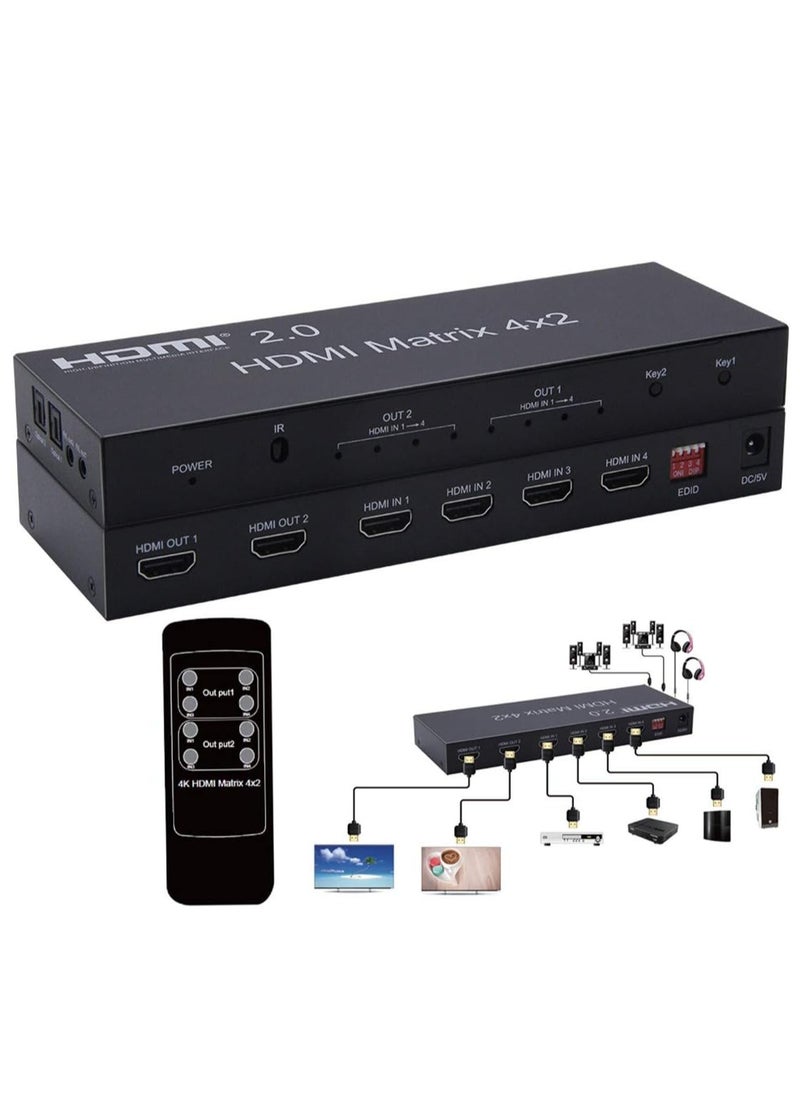

* Support IR remote control;
* Support RS232 control;
* The four outputs can show the same source or different source simultaneously;
* Support 4K (input) 2K (output) (downscale);

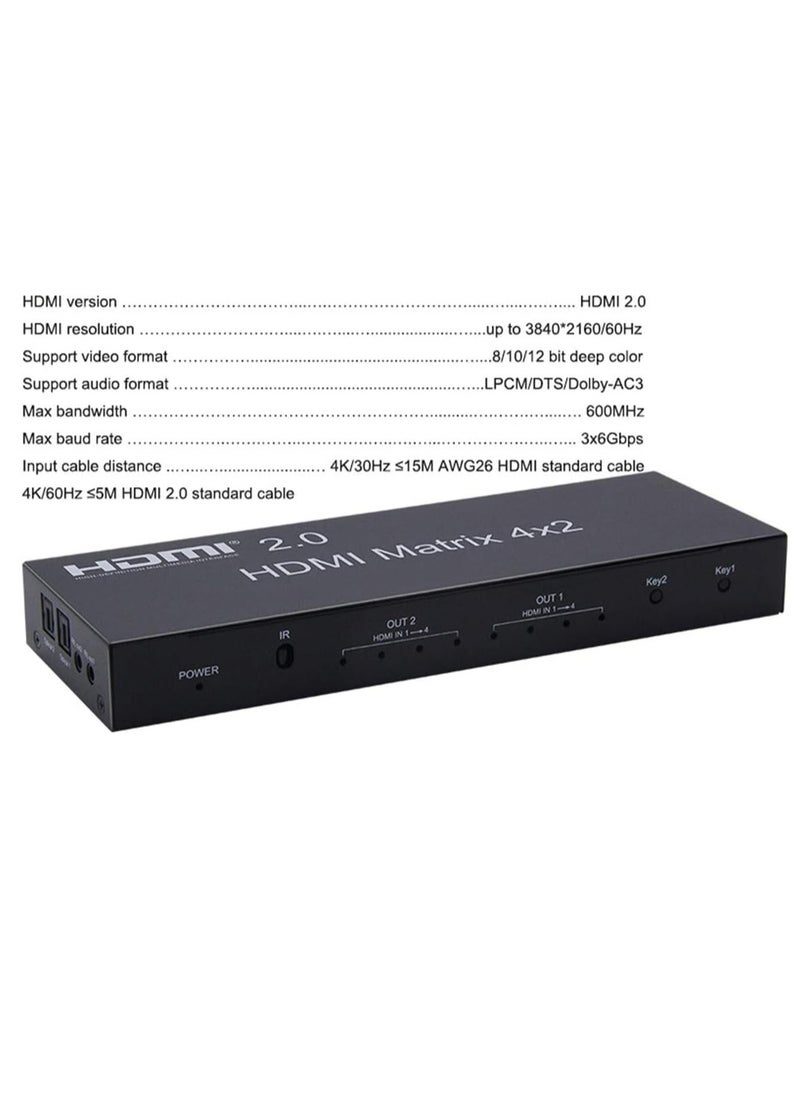

Specifications:
Interface Function:
HDMI Version: HDMI 2.0/HDCP2.0
HDMI Resolution: Up to 4K/60Hz
Video Format Supported: 8/10/12bit Deep Color
Audio Format Supported: DTS-HD/Dby-trueHD/LPCM7.1/DTS/Dby-AC3/DSD
Maximum Baud Rate: 18Gbps
Input Cable Distance: ≤10m AWG24
Output Cable Distance: ≤10m AWG24
HDMI Input: 4
HDMI Output: 4
Maximum Operating Current: 1.6A
Power Adapter Form: Input: AC (50HZ, 60HZ) 100V-240V;
Output: DC 12V/2A
Operating temperature range: (-15 to +45°C)
Operating humidity range: 5 to 90% RH (non-condensing)
Dimensions (L x W x H): 276 x 143 x 26 (mm)
