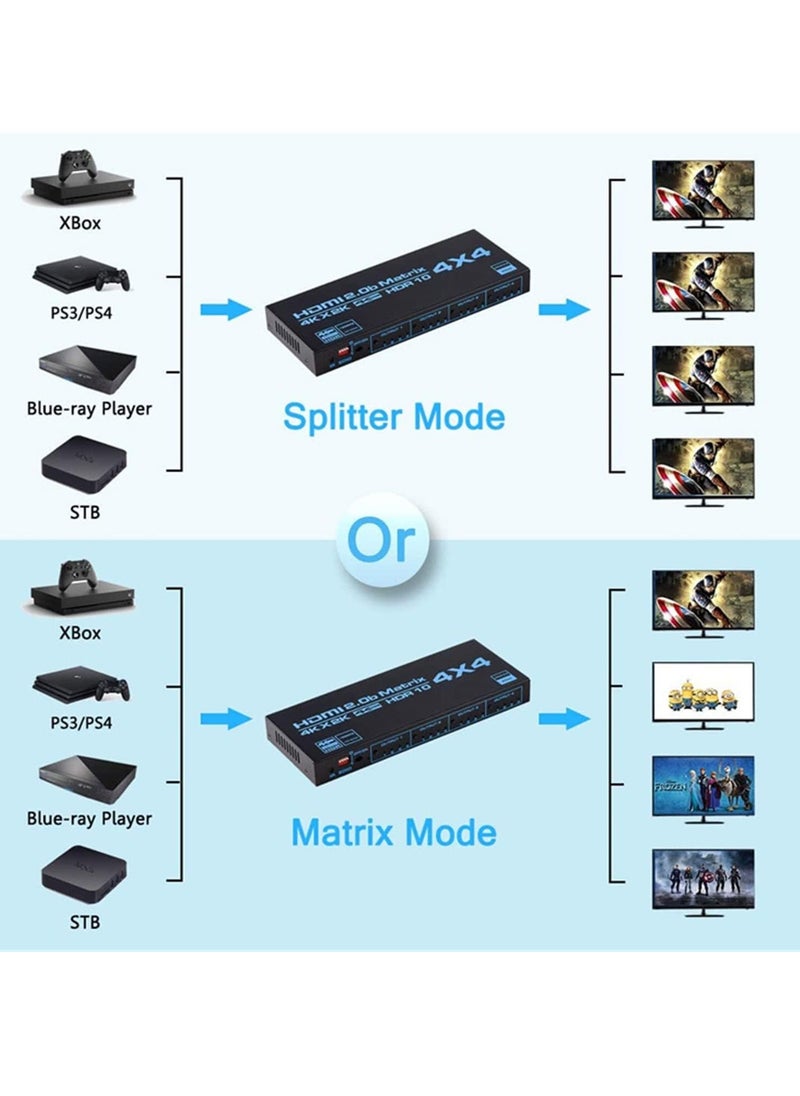

Highlights- Distribution function: Map any HDMI input to 1/2/3/4 HDMI signal output simultaneously to get the same screen.
- Matrix function: Four HDMI output ports independently select one of four HDMI inputs to achieve different display.
- HDMI version support: Support HDMI2.0b, backward compatible with HDMI 1.0, HDMI1.3, HDMI1.4; HDCP version support: HDCP2.2 backward compatible with HDCP1.4; Audio support: Support PCM, DTS, AC-3, Dolby Panorama (only support HDMI port) and HD Audio.
- * Support lossless output, that is, the separate audio does not affect the HDMI output, the input and output are exactly the same,>Support video resolution 480/576/720/1080/4Kx2K@24/25/30/60Hz..

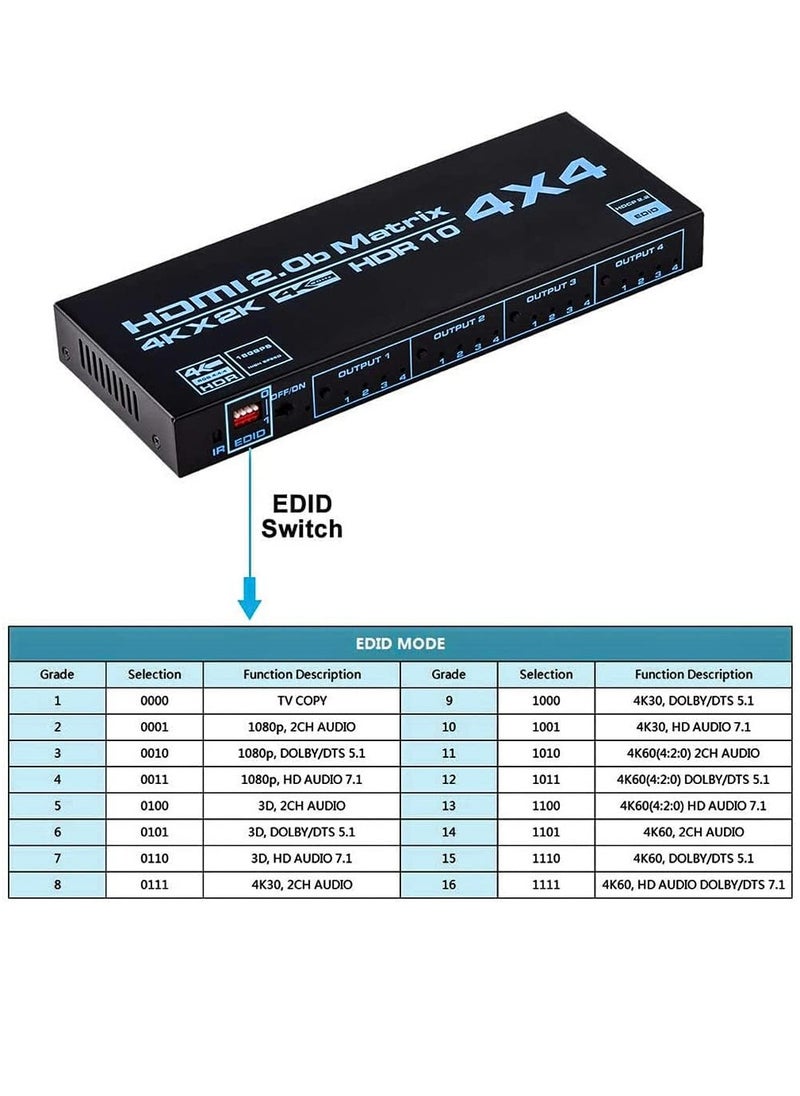

- * Support ultra-high definition 4K*2K@60Hz (YUV444/RGB888), not only 4Kx2k@24/25/30Hz; Support 3D, according to actual needs, rotate the EDID switch to select the corresponding 3D video and audio format. Automatically identify the highest resolution of the output device, effectively reduce the resolution, perfectly compatible with 1080P power amplifier and projector.

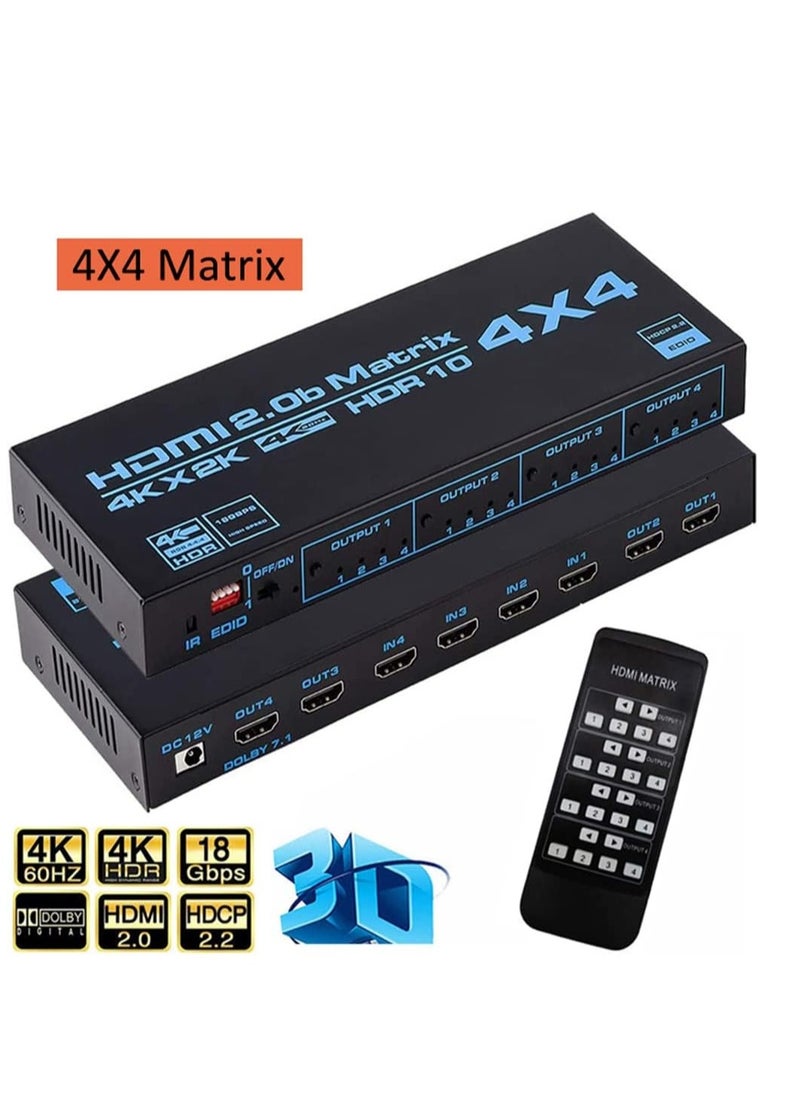

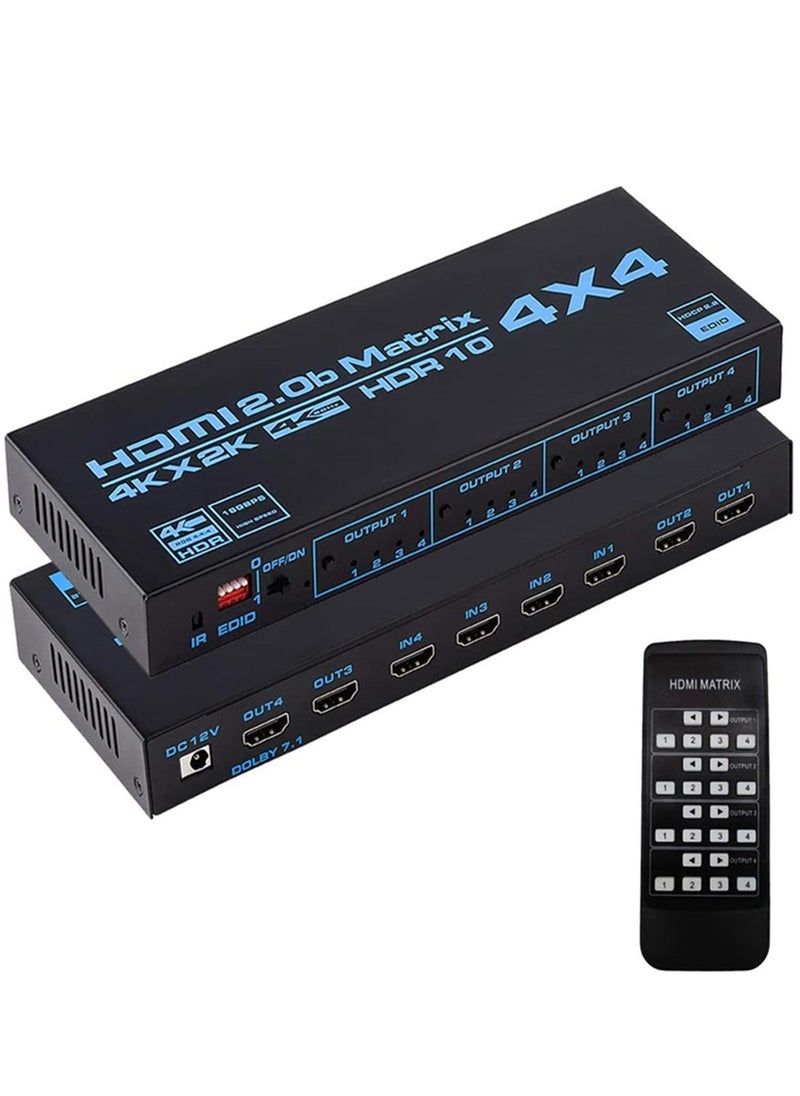

Overview4x4 HDMI Matrix Switch, 4K HDMI Matrix Switcher 4 Inputs 4 Outputs
Box with EDID Extractor and IR Remote Control. The 4x4 HDMI Matrix Switch makes it easy to switch or split four HDMI devices to four HDMI-enabled displays or projectors. Suitable for home theater, villa, conference room, shopping mall, video wall, school, corporate training environments, etc.
Specifications

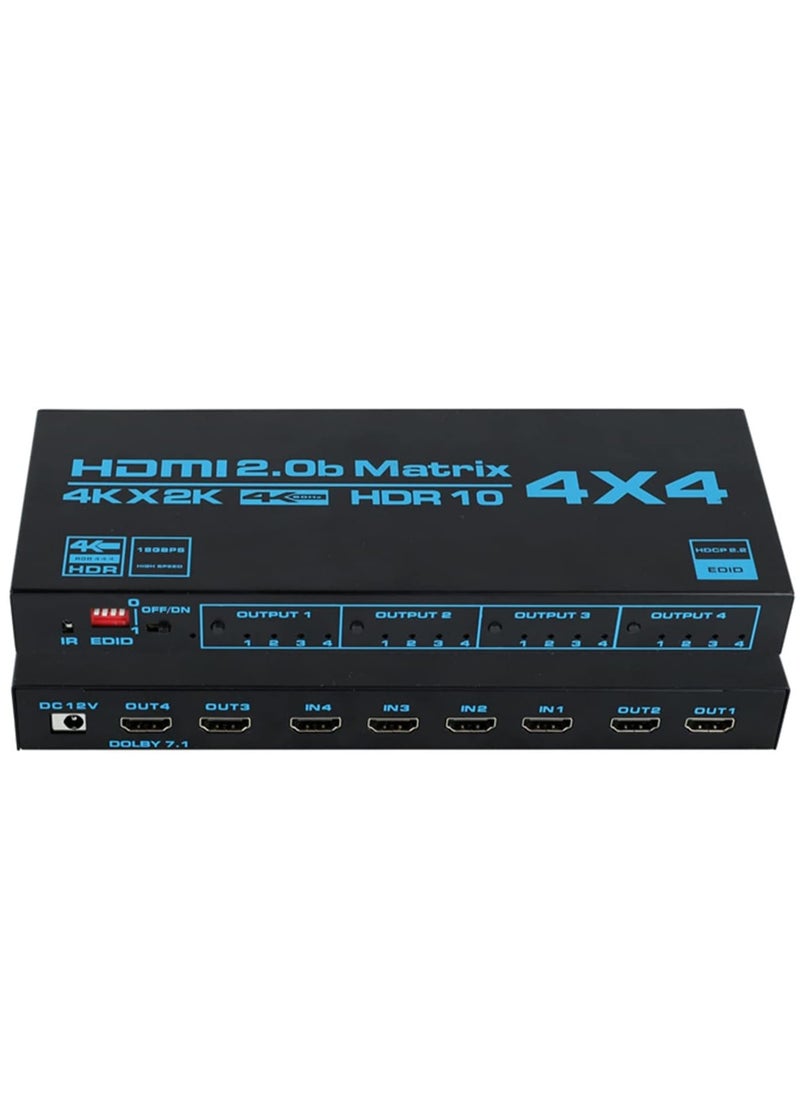

- Product Type: 4x4 HDMI Matrix
- Interface Type: 4 HDMI Inputs, 4 HDMI Outputs
- Color: Black.
- Power Supply: DC 12V
- Dimensions (L x W x H): 230 x 90 x 25mm.
Features
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support the highest resolution up to 3840*2160/60Hz YUV4:4:4
- Support 18Gbps data rate and TMDS clock up to 600MHz
- Support 8/10/12/24bit deep color

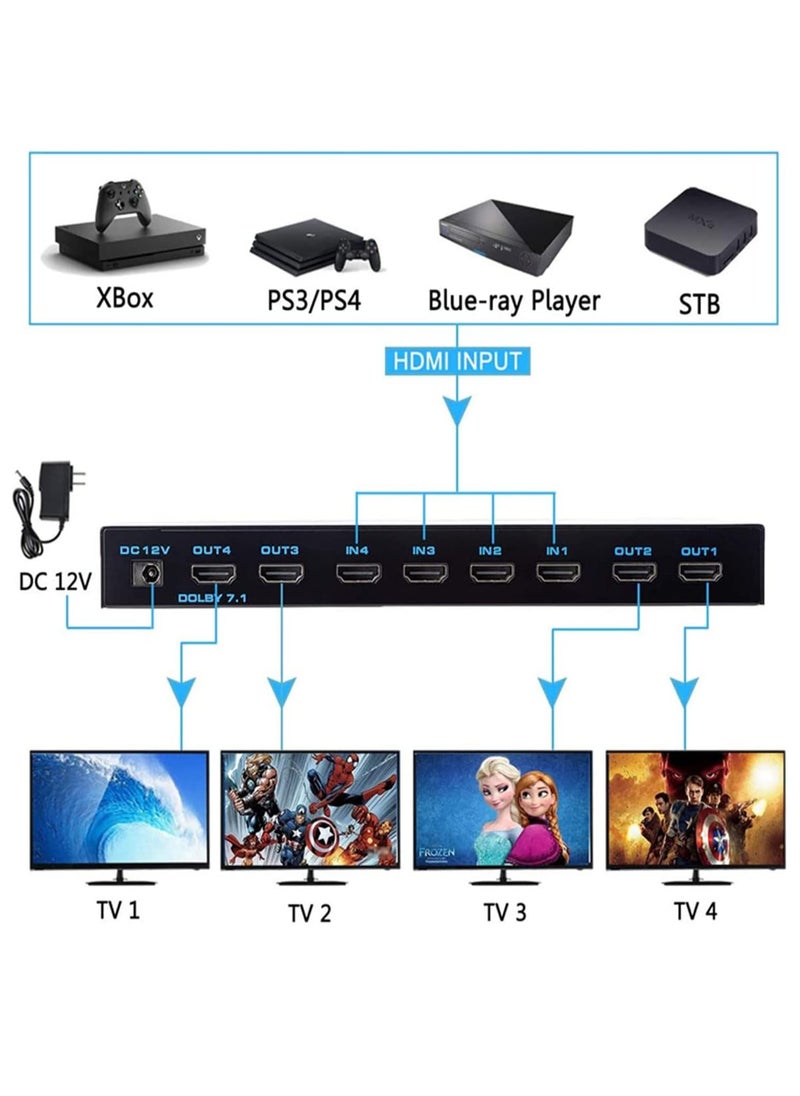

- 4 HDMI inputs divided into 4 HDMI displays
- Input cable distance: <8m AWG26 HDMI 2.0b standard cable
- Output cable distance: <8m AWG26 HDMI 2.0b standard cable
Package Contents:
1 x HDMI 4X4 Matrix.
1 x 12V Power Adapter.
1 x IR Remote Control
1 x User Manual.
Note:

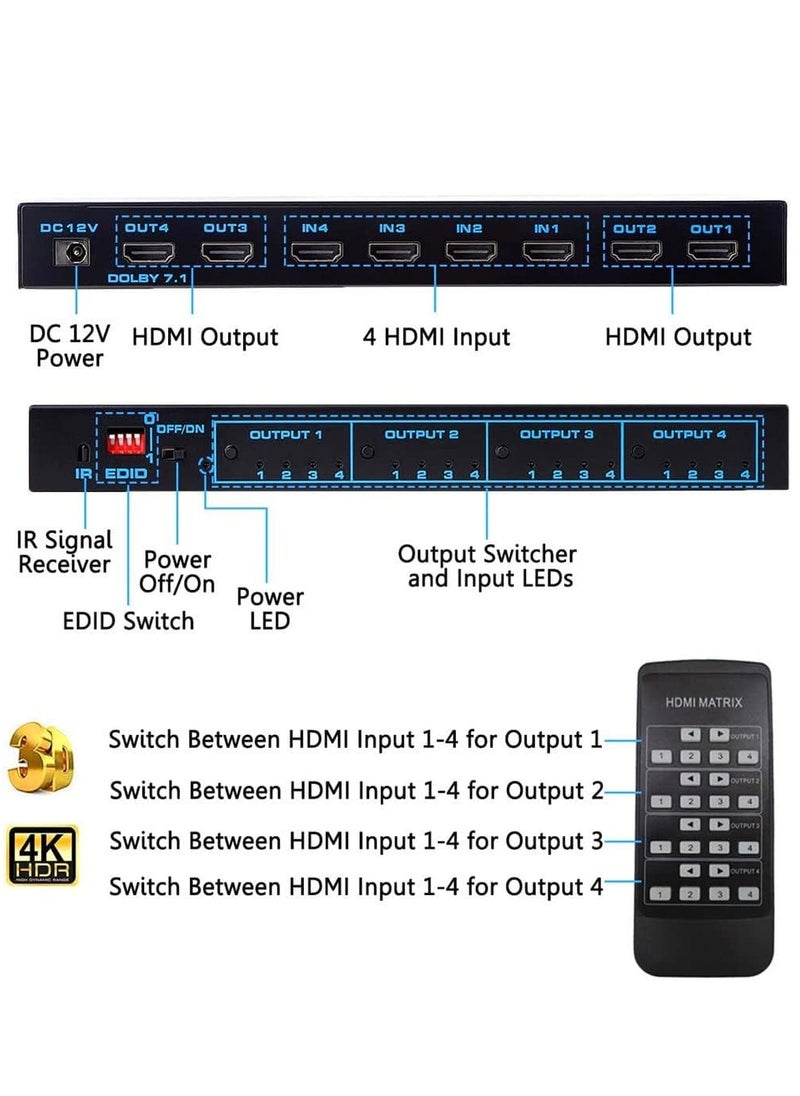

Button and LED:
1. LED instruction: IN1-IN2 IN3-IN4 indicator is the corresponding input sources of OUT1, OUT2, OUT3 or OUT4.
2. Button operation: OUT1, OUT2, OUT3 or OUT4 is used to output the corresponding input source of OUT1, OUT2, OUT3 or OUT4
