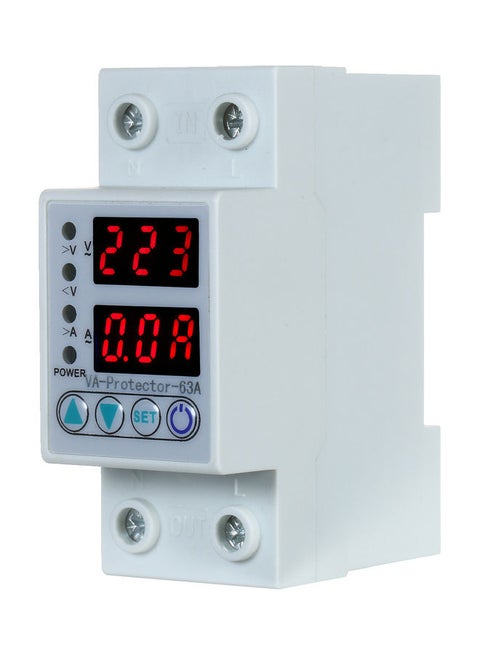

Adjustable Voltage Current Protector White

The double LED display adjustable voltage current protector is suitable for single-phase AC 220V, 50/60Hz, rated working current 63A. It is mainly used for residential household box entry or over-voltage, under-voltage or over-current protection of distribution lines for single-phase electrical equipment. Its main feature is when the circuit has over-voltage or under-voltage, over-current problems, the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged, besides,the protector can automatically turn on the power supply when the circuit voltage returns to the normal. The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.
Features:
Voltage & Current Protection -- Cut off the power when the circuit has over-voltage,under-voltage or over-current. Protect your home electrical equipment from being damaged.
Automatic Reconnect -- Turn on the power supply when the circuit voltage and current returns to the normal.
Adjustable -- Over voltage value range 230V-300V, under voltage value range 140V-210V, over current value 1-63A. Fault recovery delay time adjustable from 1-600 seconds
Double LED Display -- Two seleprate digital LED display can display the real voltage, current independently for easier and clearer reading, can be used as a voltmeter and ammeter.
Customizable -- The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.
Specification:
Rated Supply Voltage: AC 220V
Operation Voltage Range: AC 80V-400V (Single Phase)
Rated Frequency: 50/60 Hz
Electric Current (>A)Setting Range: 1-63A
Over Voltage (>U) Setting Range: 230-300V
Under Voltage (<U) Setting Range: 140-210V
Error: 2
>U and <U Trip Delay: 0.5S
Reset / Start Delay: 1s-600s
Voltage Measurement Accuracy: 1%
Rated Insulation Voltage: 400V
Output Contact: 1NO
Electrical Life: 10^5
Mechanical Lift: 10^6
Protection Degree: IP20
Installation: Din Rail
Item Size: 85*65*37mm/3.35*2.56*1.46in
Packing List:
1 * Voltage and AMP Protector
1 * User Manual
