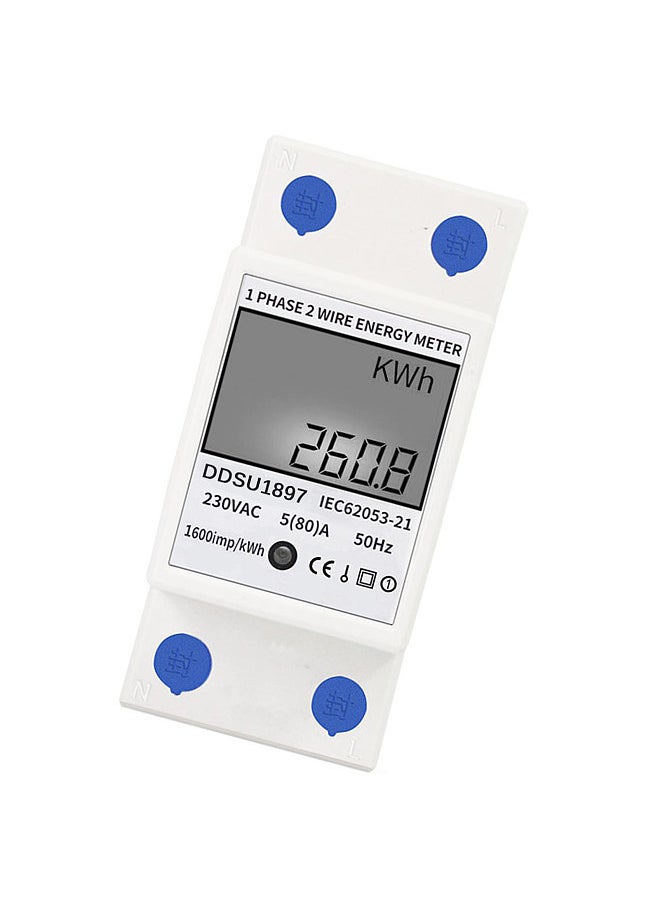

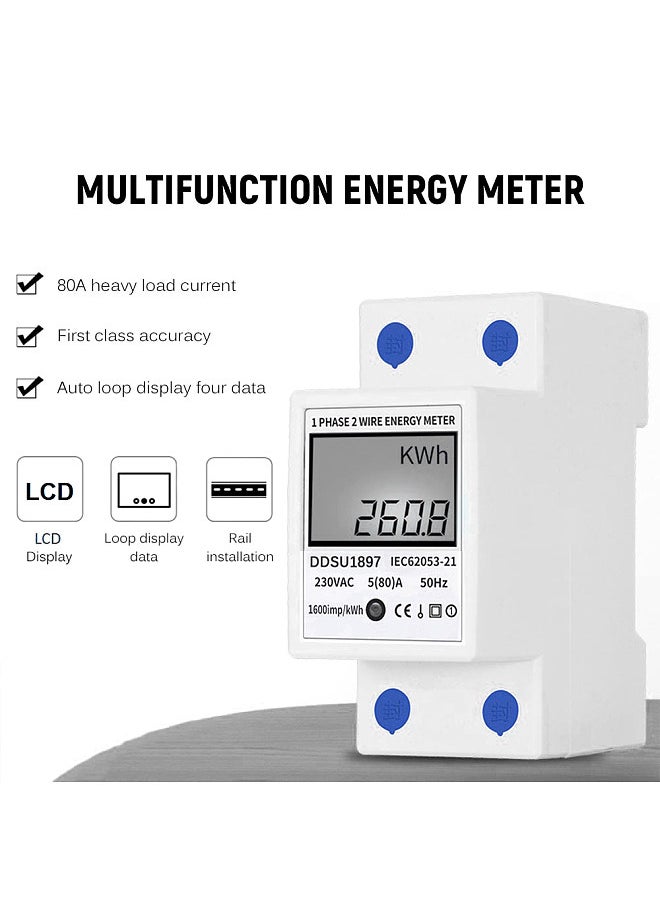

Highlights- LCD display: equipped with a LCD screen displaying digital readings, which is easy to read.

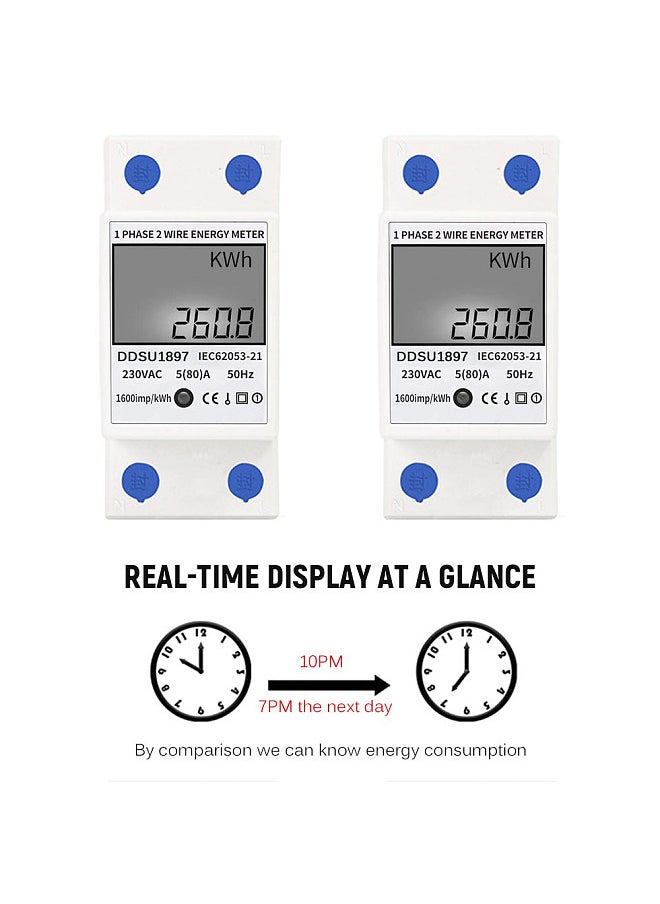

- Auto loop display four data: the readings of energy consumption, voltage, current and power will be automatically switched in the screen, each one stays for 6 seconds.

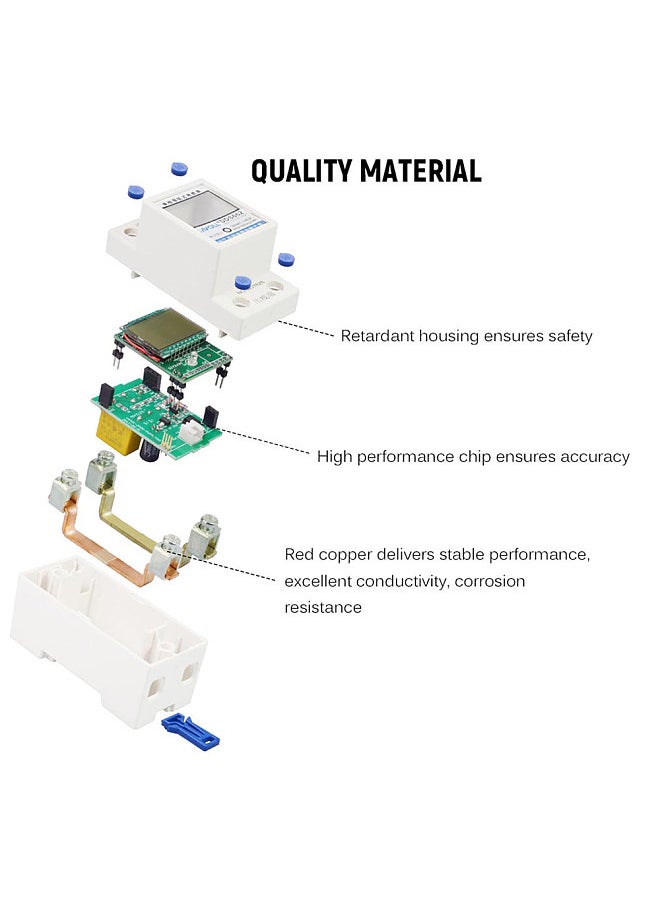

- Quality material and high accuracy: retardant housing to ensure safety, SMT chip technology integrated circuit provides accurate measurement, excellent conductivity, corrosion resistance, and stable performance.

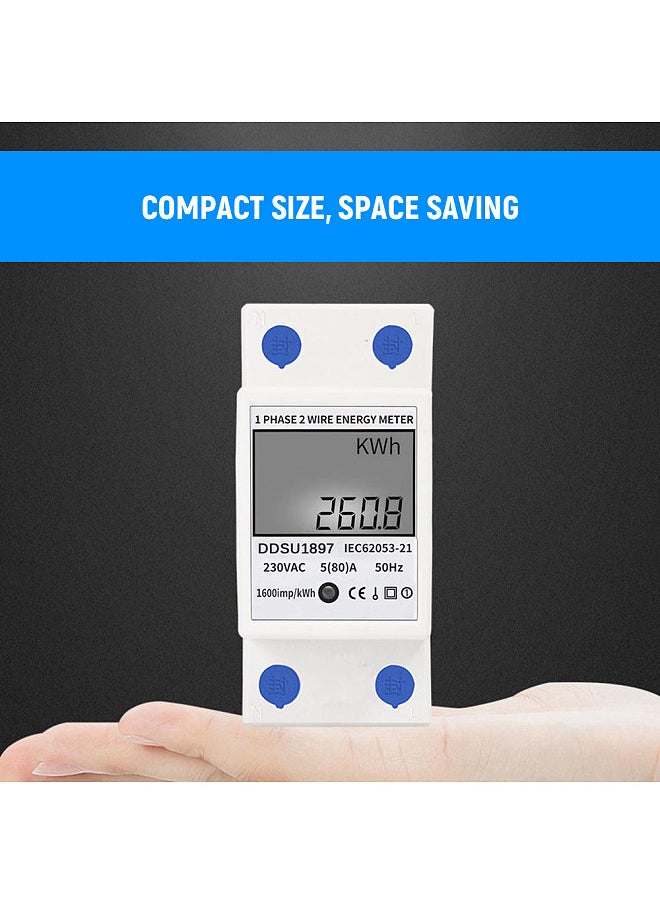

- Compact and user-friendly: 35mm rail for installation, and can be directly installed in the electric box, occupying only 2P position.

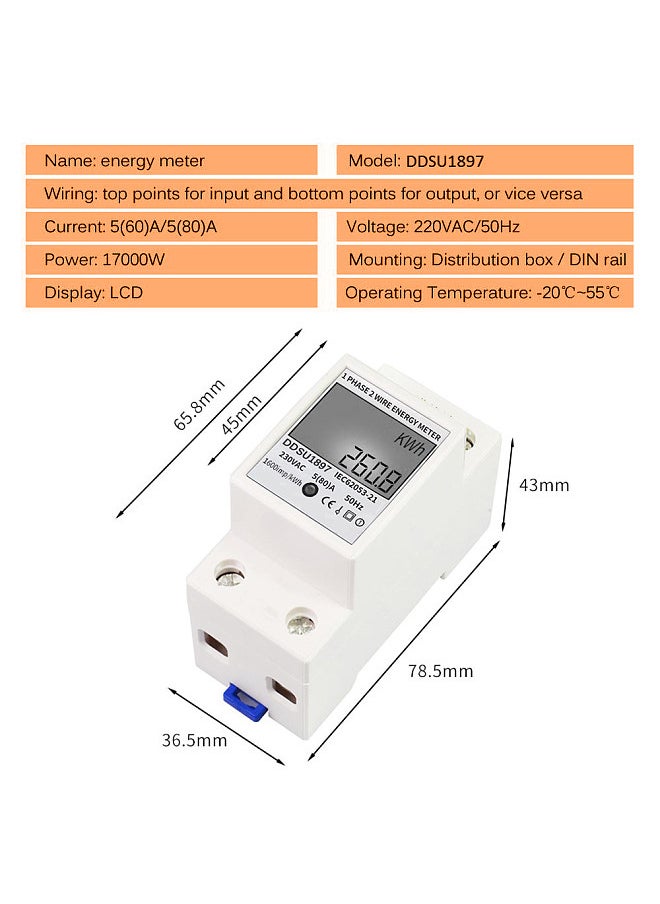

OverviewSpecifications:
Material: ABS
Model: DDSU1897
Display: LCD Backlight / LCD without Backlight (Optional)
Wiring: top points for input and bottom points for output, or vice versa
Current: 5(60)A/5(80)A
Voltage: 220VAC/50Hz
Power: 17000W
Mounting: Distribution box / DIN rail
Display: LCD
Operating Temperature: -20℃~55℃
Item Size: 7.85 * 3.65 * 4.3cm / 3.09 * 1.43 * 1.69in
Item Weight: 100g / 3.52oz
Package Weight: 135g / 4.76oz
Package Size: 8 * 5 * 5cm / 3.14 * 1.96 * 1.96in
