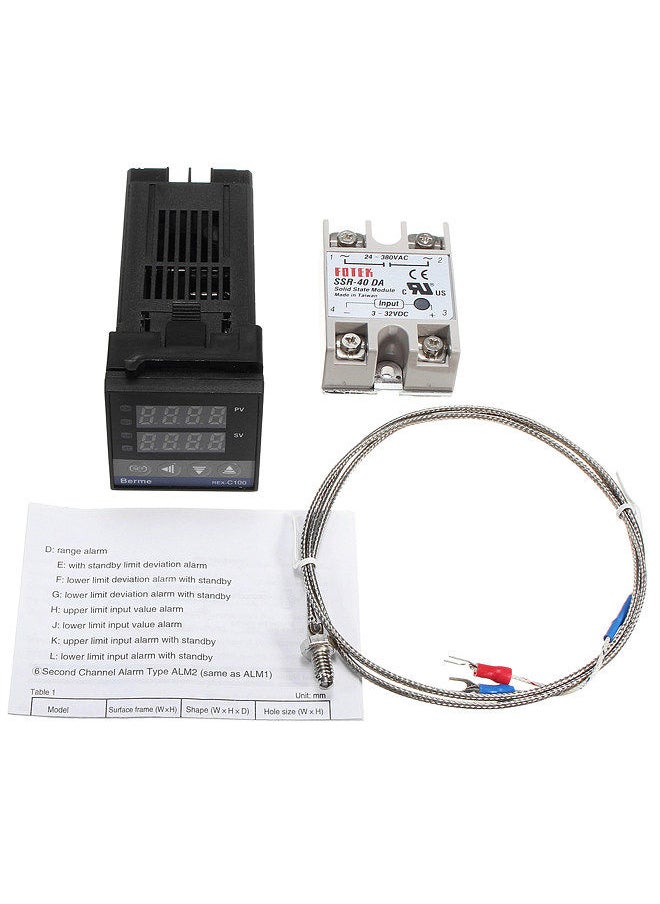

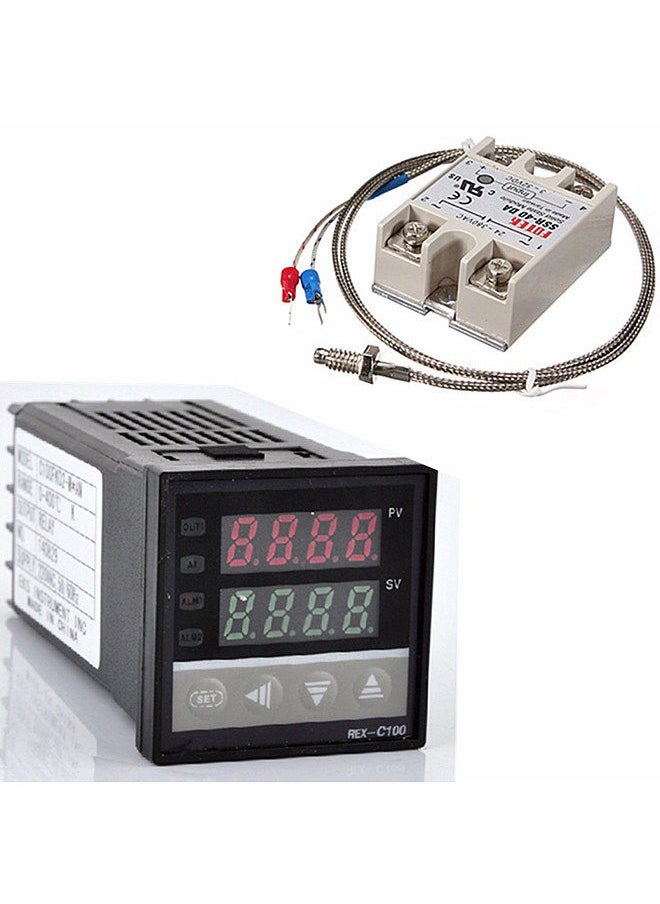

Highlights- PID controller set comes with digital PID REX-C100 temperature controller + max.40A SSR + K Thermocouple for your use.

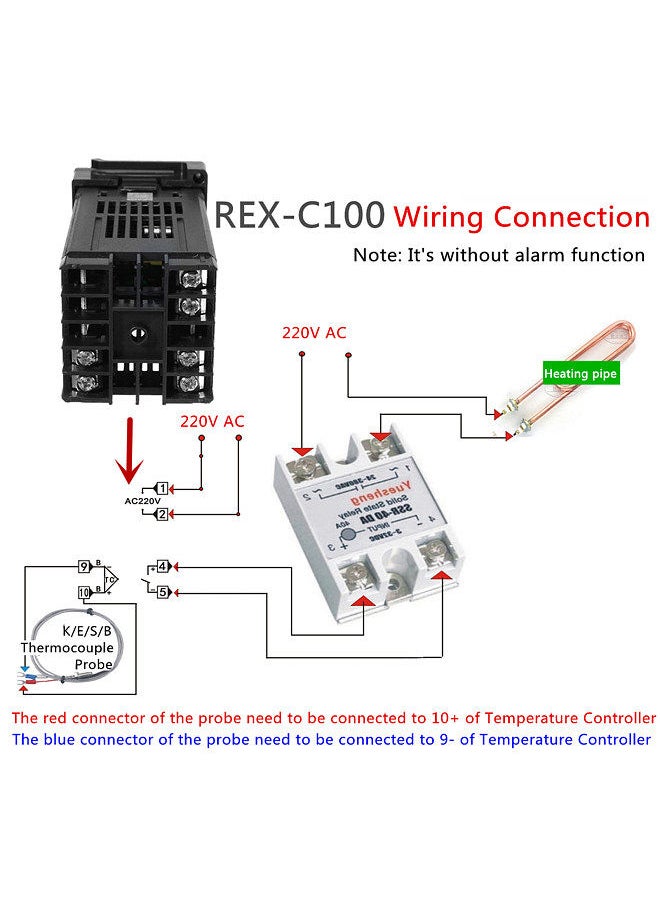

- This PID temp control is specially designed for one phase solid state relay.
- Proportional Band (P): 0～full range (ON/OFF control when set to 0).
- Integral time (I): 0～3600 sec (no integral action when set to 0), derivative time (D): 0～3600 sec (no derivative action when set to 0).
- Setting value (SV) is identical to measuring range (PV).
OverviewSpecifications:

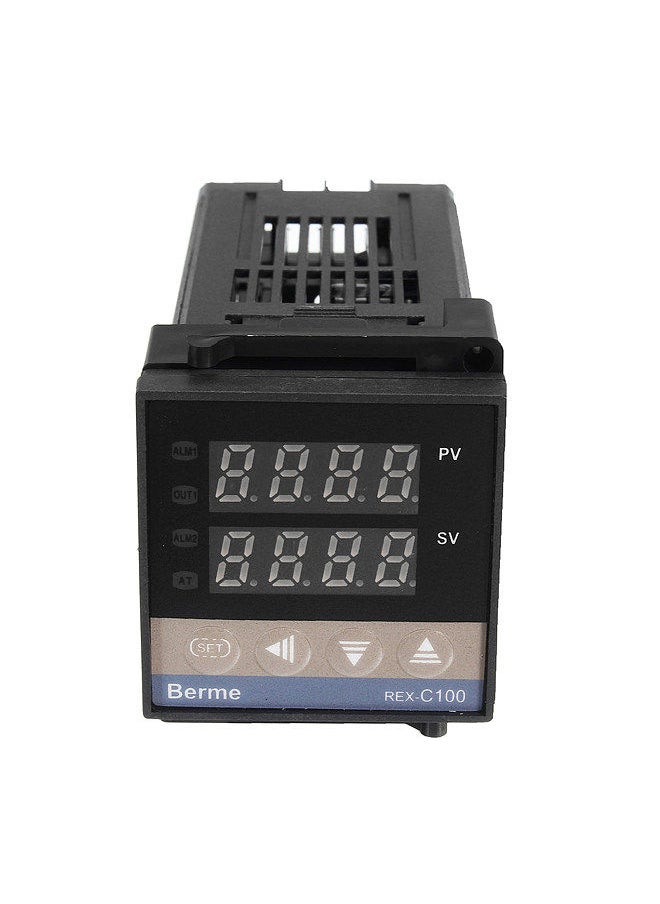

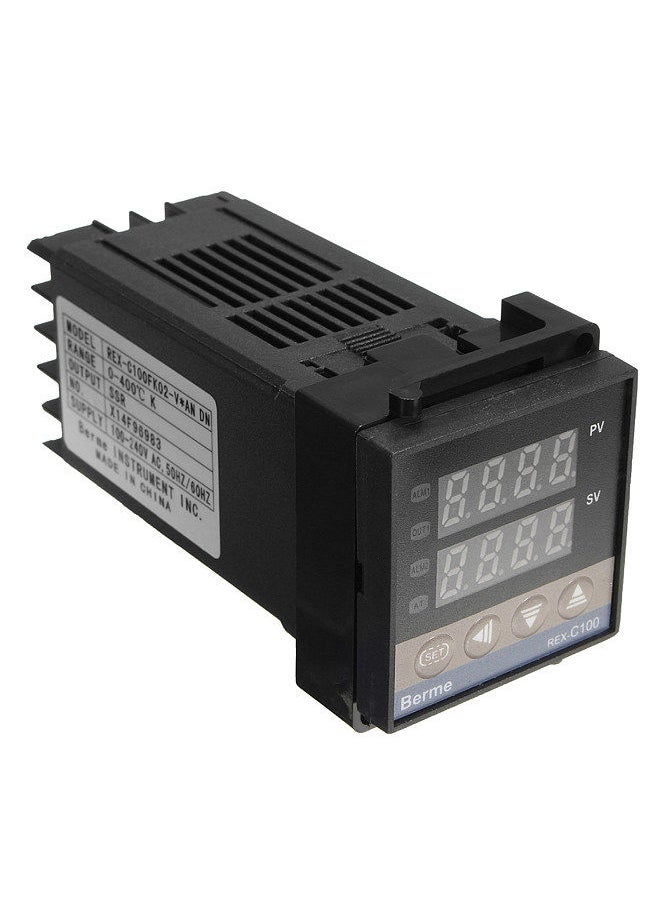

REX-C100 Temperature Controller
1.3 Digit setup values
2.Measuring accuracy: ±0.5%
3.Cold-end compensation tolerance: ±2℃(can be modified by software in 0～50℃)
4.Resolution: 14 bit
5.Sampling cycle: 0.5 Sec
6.Power: AC 100-240V 50/60HZ
7.Process value (PV), Setting value (SV)
8.Output, and self-tuning can be indicated by: LED
9.PIN control (including ON/OFF, step-type PID and continuous PID)
10.Self-tuning control
11.Relay output: contact capacity 250V AC 3A (resistive load)
12.Proportional band (P): 0～full range (ON/OFF control when set to 0)
13.Detective temperature range: 0 to 400℃
14.Insulation resistance: >50M ohm(500V DC)
15.Insulation resistance: 1500V AC/min
16.Insulation resistance: Power Consumption ＜ 10 VA
17.Service environment: 0～50℃
18.Environment with no corrosive gas 30～85% RH

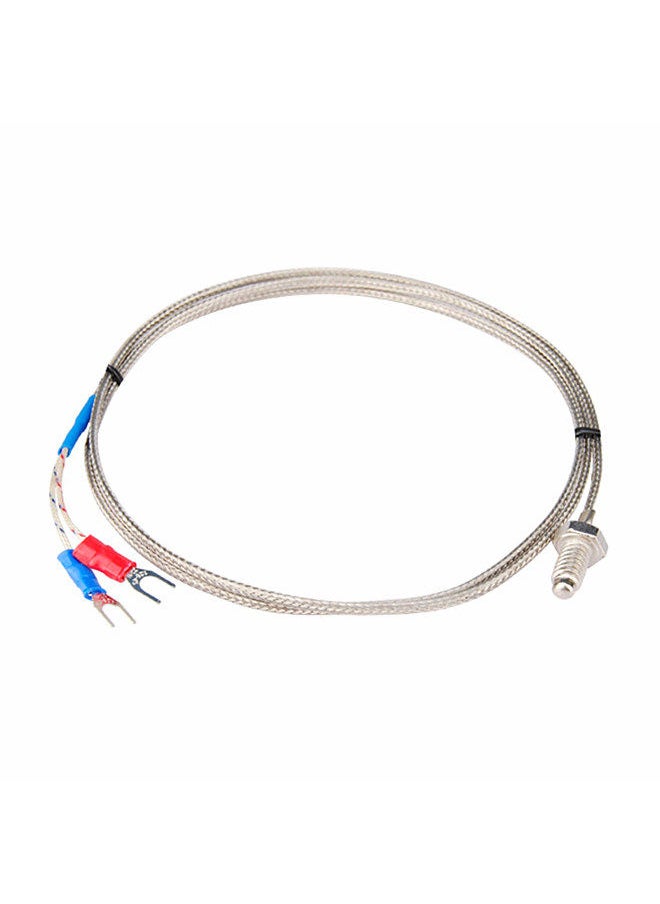

K Thermocouple Probe Cable
1.Length: 1M
2.Sensor diameter: 4.5mm
3.Temperature rang :0～400℃
4.Internal Insulation: Fiberglass
5.External Shielding: Insulated Shielding

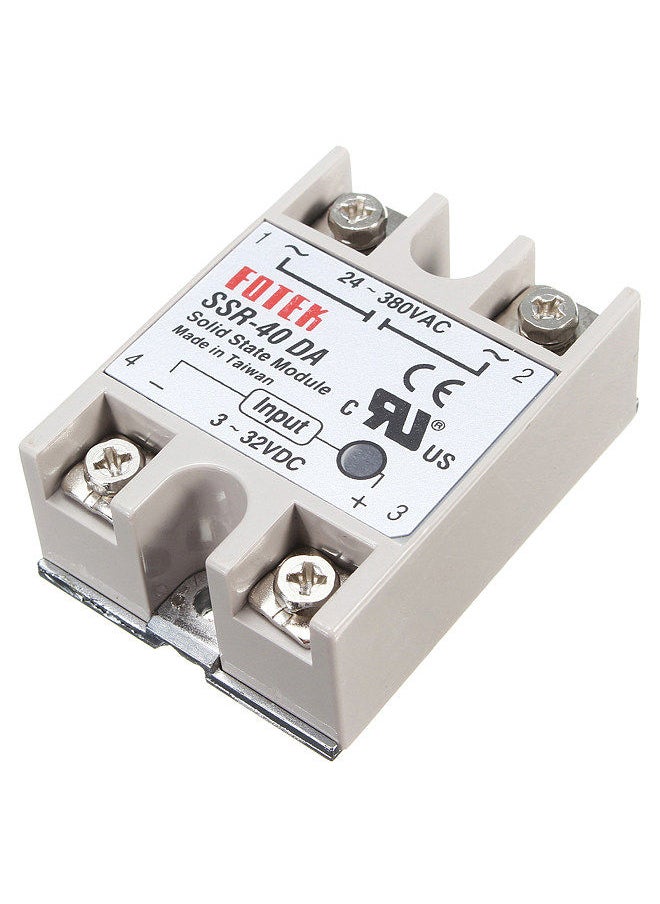

Max.40A SSR
1.Output Current: 40A
2.Input Voltage: DC 3-32V
3.Output Voltage: 24-380V AC
4.Output Voltage Range: Standard Type
Item Size: 48 * 12 * 12mm / 1.89 * 0.47 * 0.47in
Package Weight: 276g / 9.74ounces
Package Size: 80 * 62 * 40mm / 3.15 * 2.44 * 1.57in
