Highlights- PID controller set comes with digital PID REX-C100 temperature controller + max.40A SSR + K Thermocouple for your use.
- This PID temp control is specially designed for one phase solid state relay.
- Proportional Band (P): 0～full range (ON/OFF control when set to 0).
- Integral time (I): 0～3600 sec (no integral action when set to 0), derivative time (D): 0～3600 sec (no derivative action when set to 0).
- Setting value (SV) is identical to measuring range (PV).

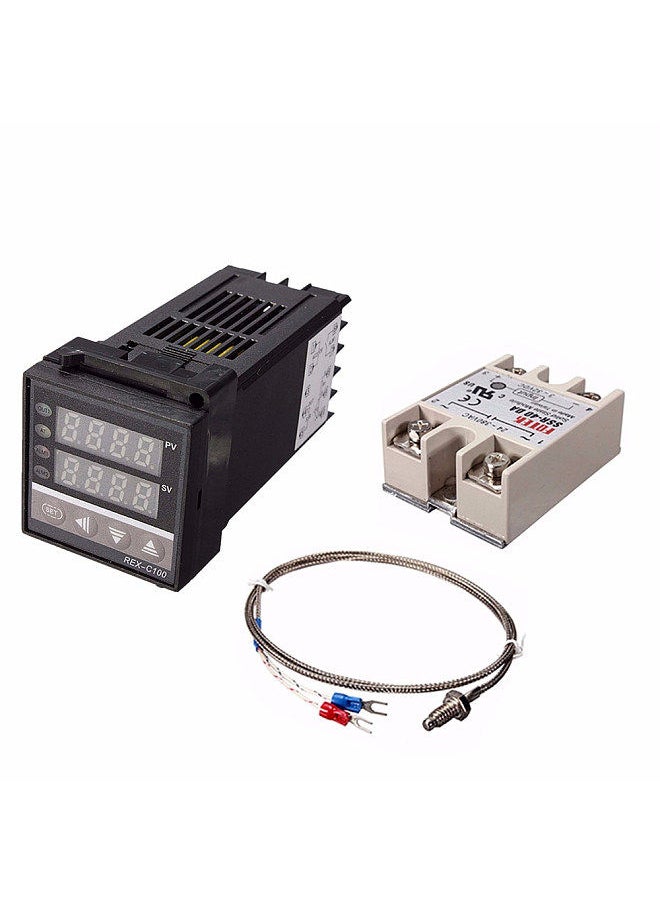

OverviewThe PID temperature controller kit is for variety of industries or home projects heating or cooling applications. It comes with dual digital PID REX-C100 Temperature Controller + max.40A SSR + K Thermocouple for your use.
Features:
PID controller set comes with digital PID REX-C100 temperature controller + max.40A SSR + K Thermocouple for your use.
This PID temp control is specially designed for one phase solid state relay.
Proportional Band (P): 0～full r-ange (ON/OFF control when set to 0).
Integral t-ime (I): 0～3600 sec (no integral action when set to 0), derivative t-ime (D): 0～3600 sec (no derivative action when set to 0).
Setting value (SV) is identical to measuring r-ange (PV).
Specifications:

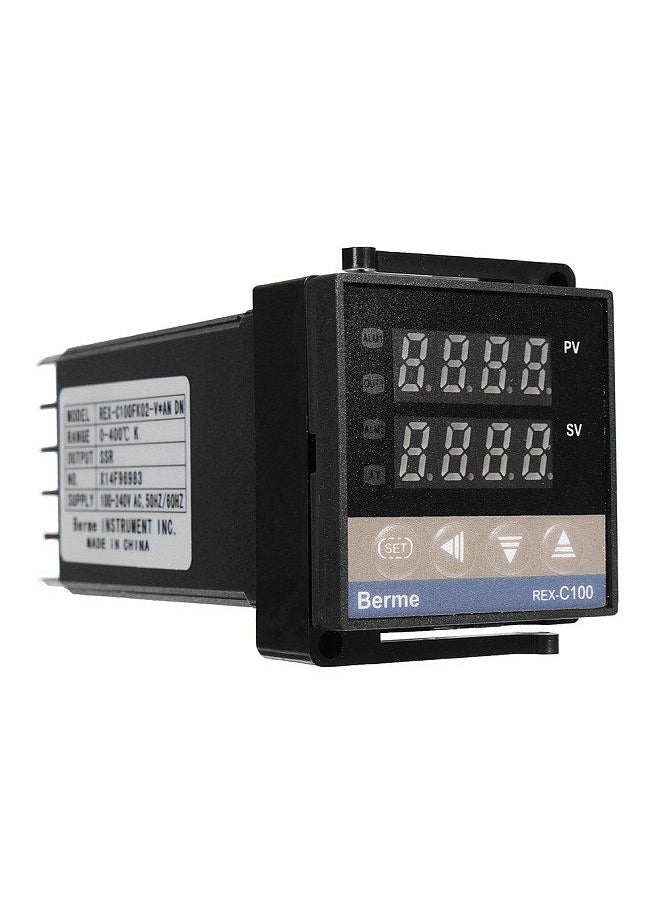

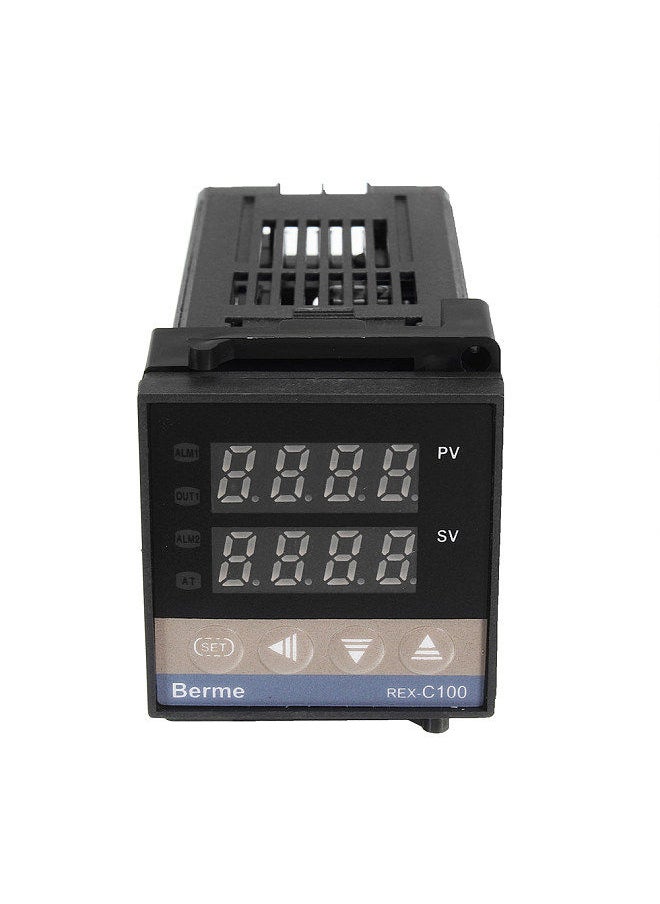

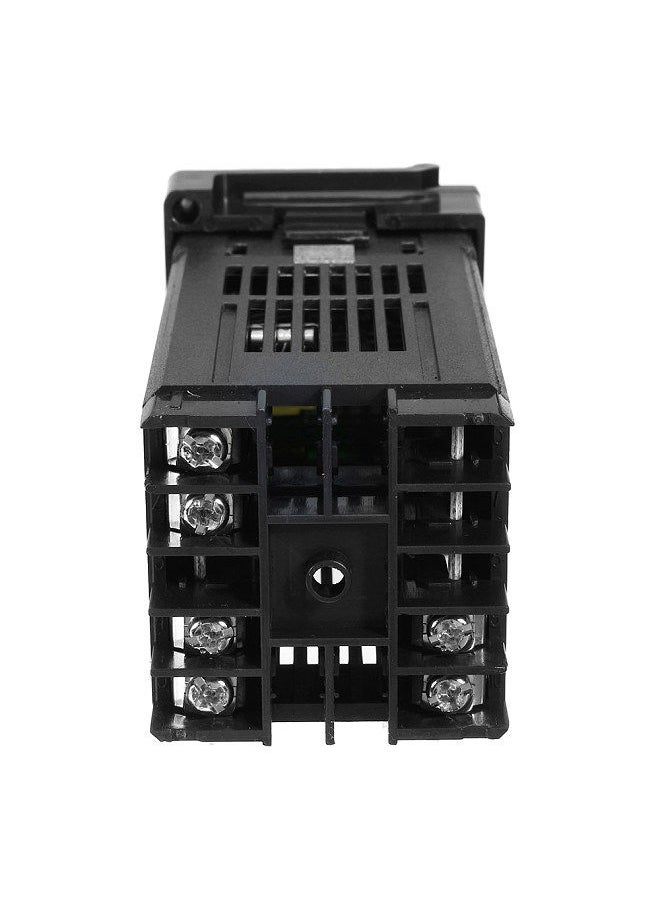

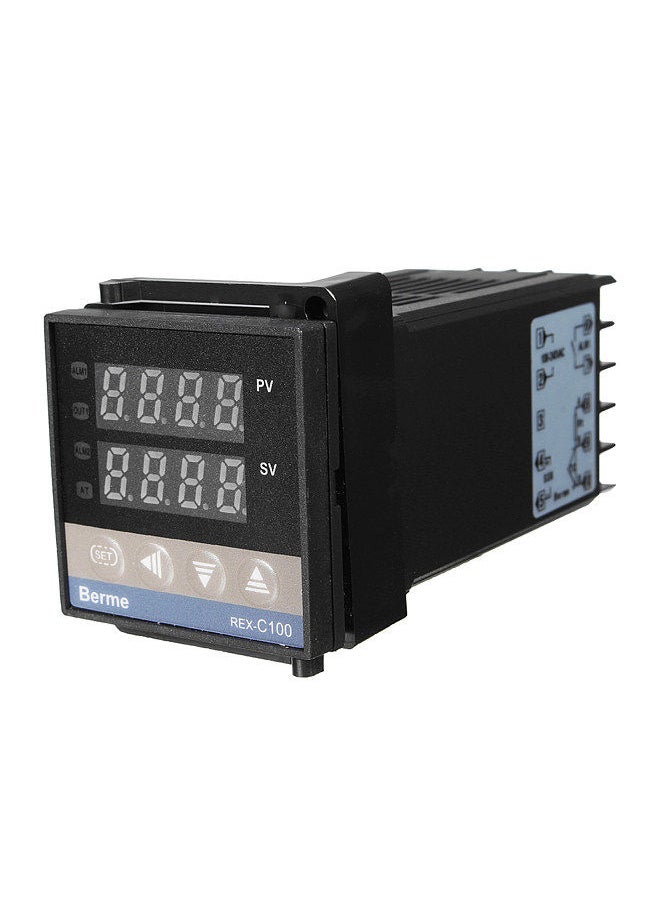

REX-C100 Temperature Controller
1.3 Digit setup values
2.Measuring accuracy: ±0.5%
3.Cold-end compensation tolerance: ±2℃（can be modified by software in 0～50℃）
4.Resolution: 14 bit
5.Sampling cycle: 0.5 Sec
6.P-ower: AC 100-240-V 50/60HZ
7.Process value (PV), Setting value (SV)
8.Output, and self-tuning can be indicated by: L-ED
9.PIN control (including ON/OFF, step-type PID and continuous PID)
10.Self-tuning control
11.Relay output: contact capacity 250-V AC 3A (resistive load)
12.Proportional band (P): 0～full r-ange (ON/OFF control when set to 0)
13.Detective temperature r-ange: 0 to 400℃
14.Insulation resistance: >50M ohm(500V D-C)
15.Insulation resistance: 1500V AC/min
16.Insulation resistance: P-ower Consumption < 10 VA
17.Service environment: 0～50℃
18.Environment with no corrosive g-as 30～85% RH
K Thermocouple Probe Cable
1.Length: 1M
2.Sensor diameter: 4.5mm
3.Temperature r-ang :0～400℃
4.Internal Insulation: Fiberglass
5.External Shielding: Insulated Shielding

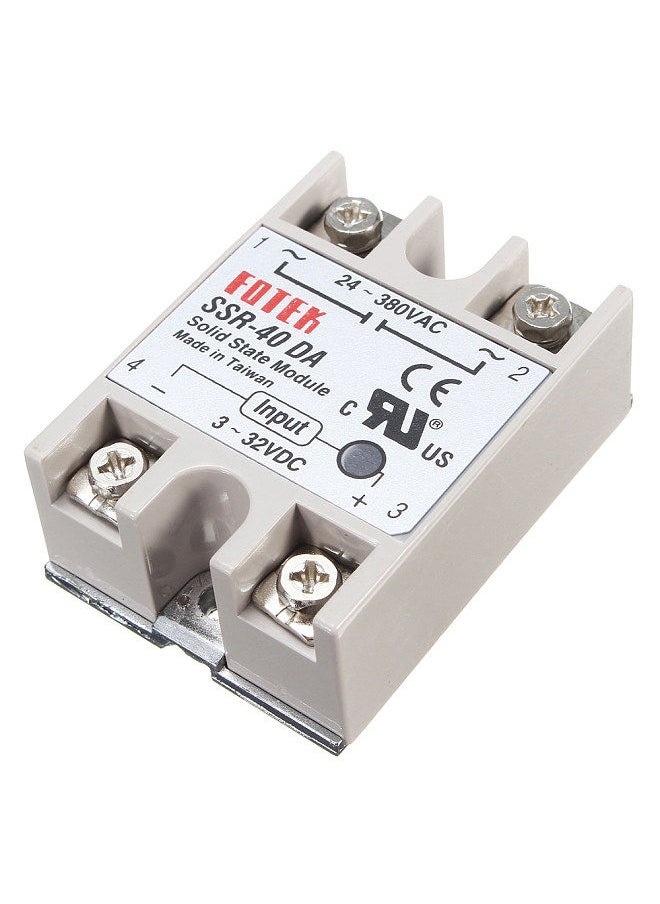

Max.40A SSR
1.Output Current: 40A
2.Input Voltage: D-C 3-32V
3.Output Voltage: 24-380V AC
4.Output Voltage R-ange: Standard Type
Item Size: 48 * 12 * 12mm / 1.89 * 0.47 * 0.47in
Package Weight: 276g / 9.74ounces
Package Size: 80 * 62 * 40mm / 3.15 * 2.44 * 1.57in
Packing List:
1 * PID Temperature Controller
1 * K Type Probe Sensor
1 * Max.40A SSR
