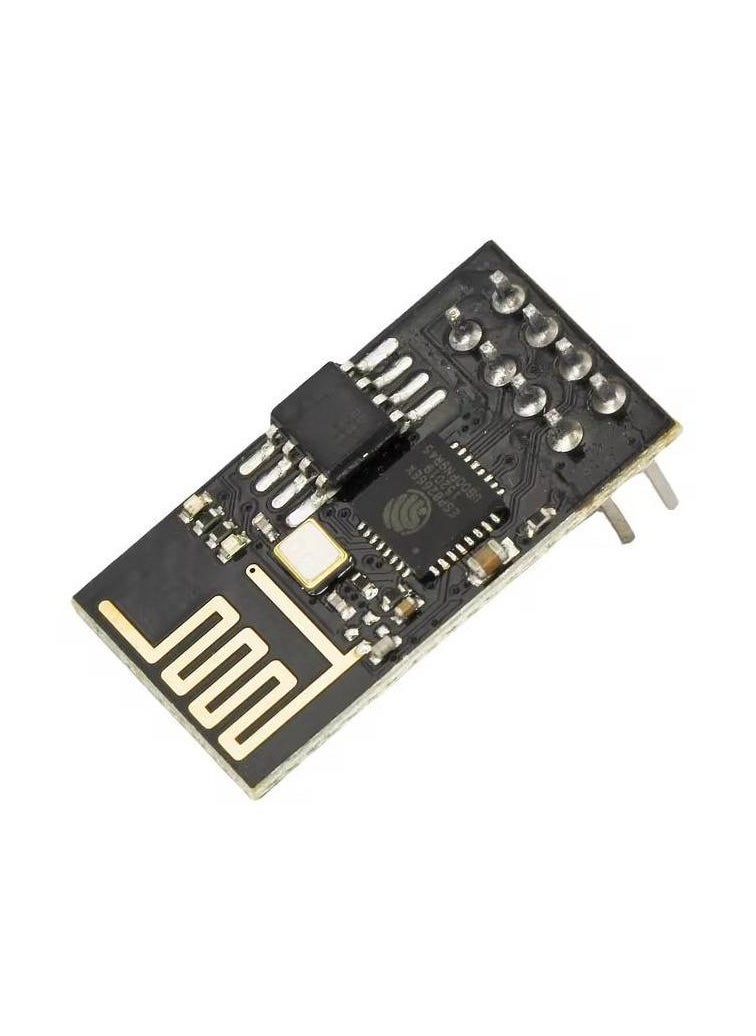

ESP-01 WiFi Serial TTL Module (ESP8266)

EGP200.00
Inclusive of VAT
nudge icon
Only 3 left in stock
nudge icon
Only 3 left in stock
noon-marketplace
Get it by 26 June
Order in 23 h 20 m
Valu logo
Pay 3 monthly payments of EGP 66.67.
placeholder
/cib-noon-credit-card
Product Overview
Highlights
  • Wireless standard: 802.11 b/g/n; Frequency range: 2.4GHz~2.5GHz(2400M ~ 2483.5M)
  • Data interface: UART / HSPI / I2C / I2S / IR Remote Control / GPIO / PWM
  • Operating voltage: 3.0 ~ 3.6v (Suggest 3.3v); Working current: average 80mA
  • Operating temperature: - 40 degrees to 125 degrees
  • External interface: N/A
  • Wireless network mode: station / softAP / SoftAP + station
  • Security mechanisms: WPA / WPA2; Encryption type: WEP / TKIP / AES
  • Upgrade firmware: local serial port burn, cloud upgrade, host download burn
  • Software development: support customer custom server, provide SDK to customer secondary development
  • Network protocols: IPV4, TCP / UDP / HTTP / FTP
  • User Configuration: AT + instruction set, cloud server, Android / IOS APP
OverviewESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area. Now the Arduino can get on WiFI without breaking the bank. Use this module for your next Internet of Things project, home automation, Or remote sensor project. This module adapts the ESP8266 IC for use over a serial connection using simple AT commands.
