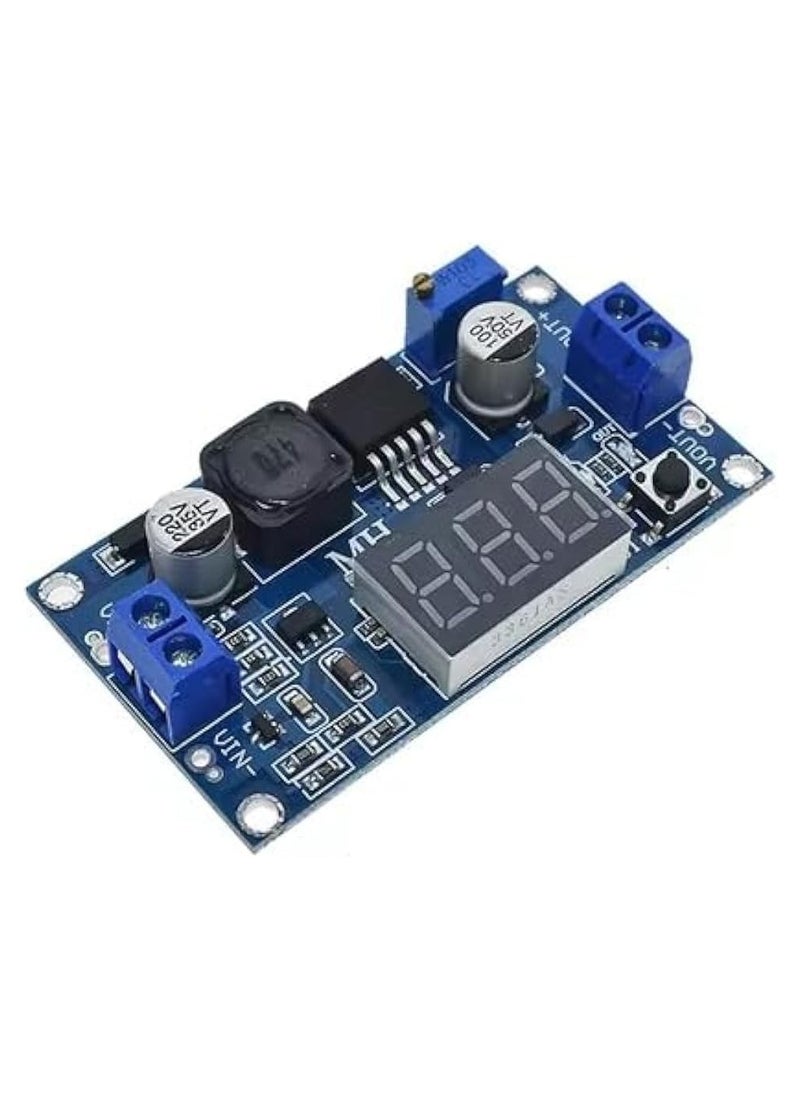

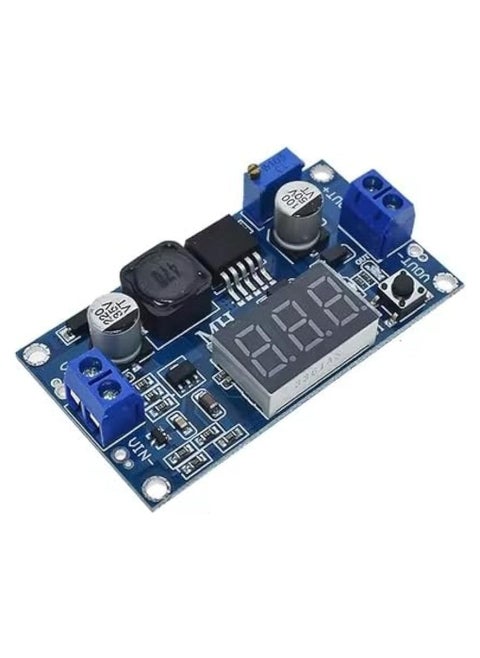

Generic XL6009S DC-DC 4A LED Display Voltage Boost Module, 32V-3V Higher Input/Outlet 35V, 4V to 38V Output, 96% Efficiency

32V-3V higher input/output 35V Output voltage range:5V to 35V DC continuously adjustable, high efficiency (96%) of the maximum output current of 4A. Feature:Using high quality double thickness PCBs, all use imported SMD aluminum electrolytic capacitors, high Q value power inductors. And each piece of the board goes through strict technical testing, and is fully tested with a separate anti-static protection package. Note:Are these modules relative to the LM2577 triode mode conversion efficiency higher Is this module an adjustable booster module, can by adjusting the accuracy of the units above the adjustable potentiometer further to change the output voltage. The highest output voltage is 38V. Time booster, reverse time reduction. Is the above unit marked GND (Input), IN + (Input), GND (Output), OUT + (Output) Working Temperature::Industrial Grade 40 to +85(-) (ambient temperature more than 40 degrees, please reduce power usage, or enhance heat dissipation) Model:XL6009 Size:43mm * 21mm * 14mm Input:3V~32V Output:5V~35V Output Current:4A(Max) Conversion Efficiency::<94% On and Off Level:400KHz Operating Temperature:-40℃~+85℃ Load Capacity:0.5% Voltage Regulation:0.5% Type: Other power units Purpose:LCD TV Voltage Converter Voltage Converter Module Type:LCD Module
