Highlights- Two Alarm Ways: This nuclear radiation detector has sound and light indication function, the results will alert you in time.
- Multifunction Tool: It has the functions of real-time dose rate, average dose rate, cumulative dose rate, trend chart, etc.
- OLED Display Screen: A small OLED screen is adopted to clearly display the measurement results, you can see the data more clearly.
- ARM processor is adopted, which has quick operation speed and powerful processing function.

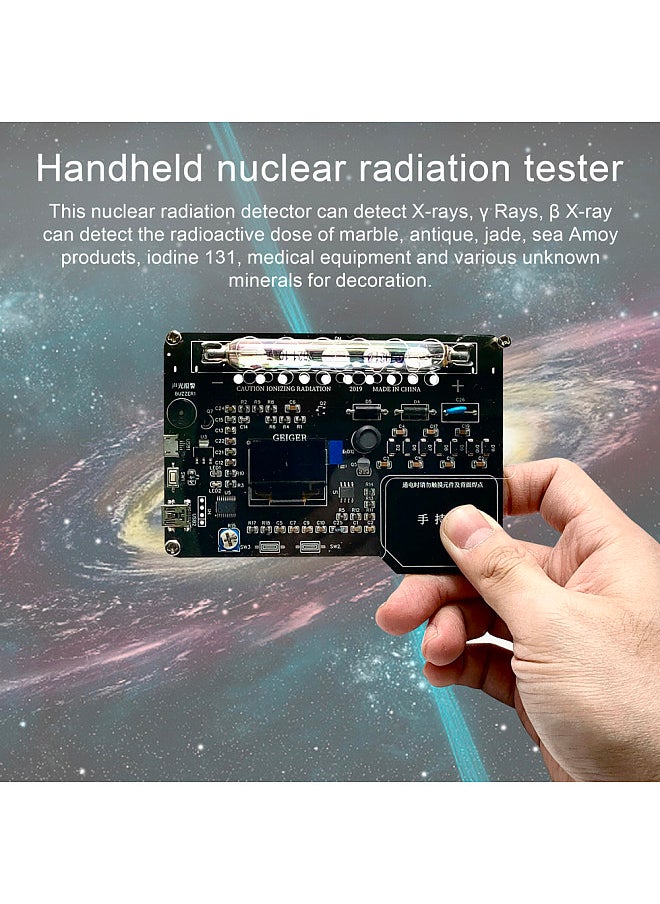

- Wide Applications: This nuclear radiation detector can detect X-rays, γ Rays, β X-ray can detect the radioactive dose of marble, jade, sea Amoy products, iodine 131, various unknown minerals for decoration.
OverviewSpecifications:
Material: printed circuit board
Geiger tube: j321 (compatible with M4011)
Screen resolution: 128 * 64
MCU: ARM
Display accuracy: 0.001usv/h
Detection display ranges: 0-9999usv / h
Power supplys: USB, 5V, ≥500mA
Item weight: 91g / 3.2ounce
Package size: 120 * 90 * 20mm / 4.7 * 3.5 * 0.8in
Package weight: 148g / 5.2ounce
J321 Pipes Specification:
Diameter: Φ 10±0.5mm
Total length: 90 ± 2mm
Starting voltage: < 350V
Recommended working voltage: 380V
Minimum Pings length: 80V
Maximum Pings slope: 10% / 80V
Working voltage: 550V
Maximum background count rate: 25 times / minute
Service time: > 1 × 109 pulse
Test: X βγ radial

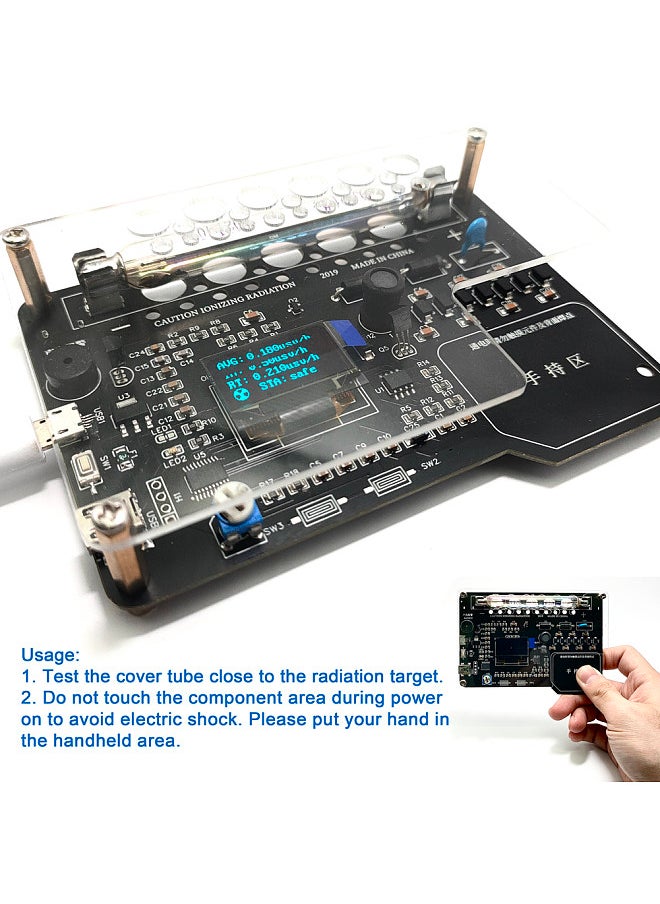

Note:
Test the cover tube close to the radiation target.
Do not touching the component area during power on to avert electric shock. Please put your hand in the handheld area.
