HDMI 2.0 Matrix Switch 4x2 4K 60Hz HDMI EDID Support Dual Audio Output by Optical and Stereo HDMI 2.0/3D/4K 4K 60Hz HDMI 2.0 Matrix 4 in 2 Output Splitter HDCP2.2 -

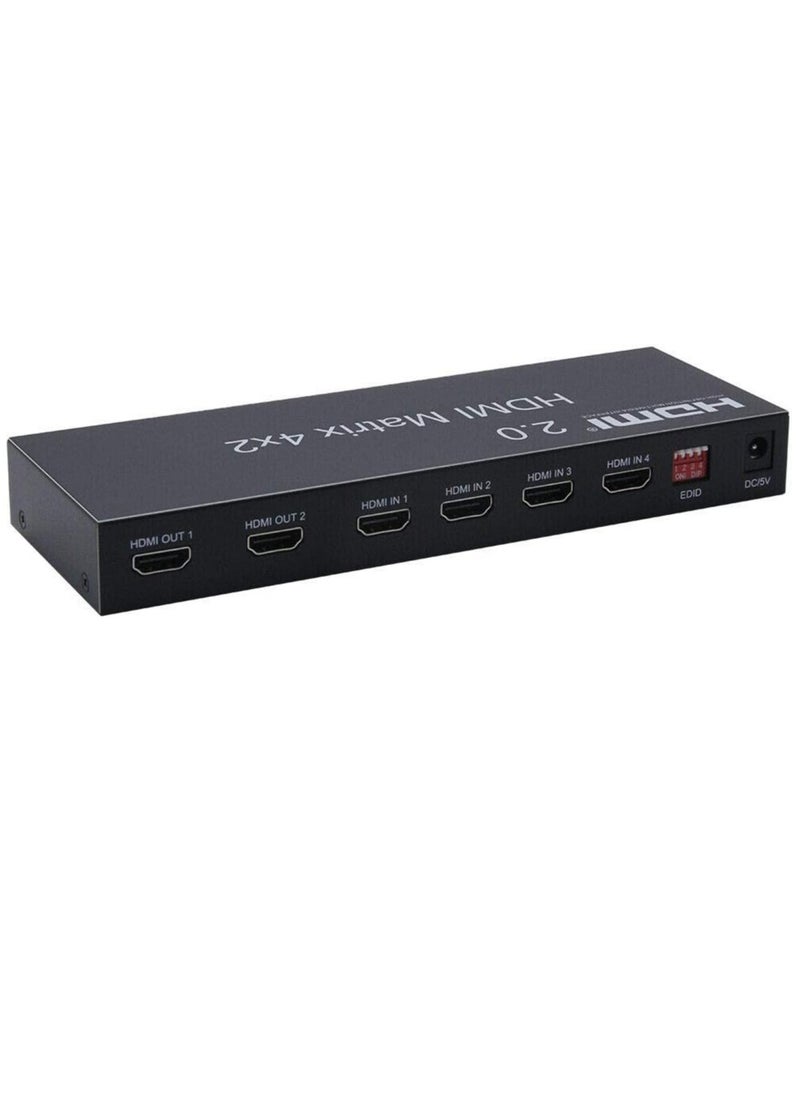

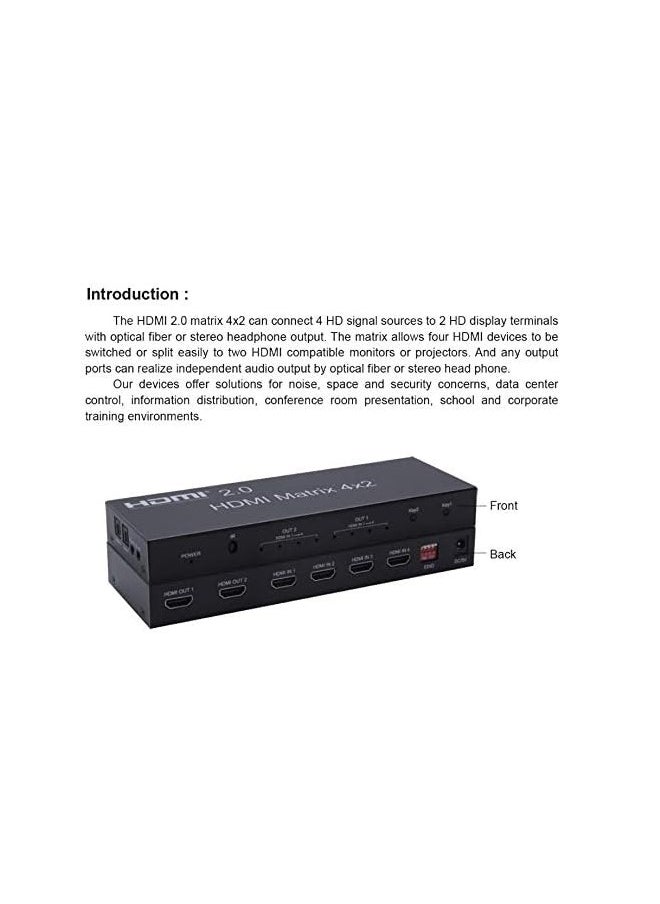

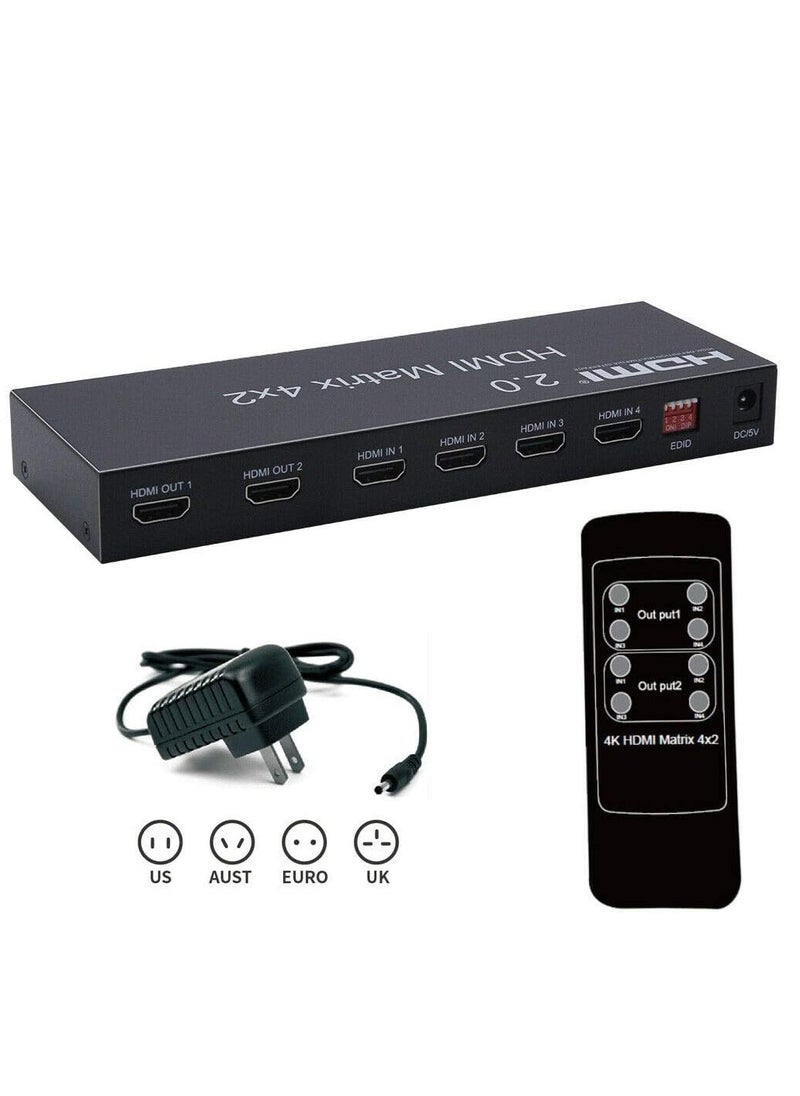

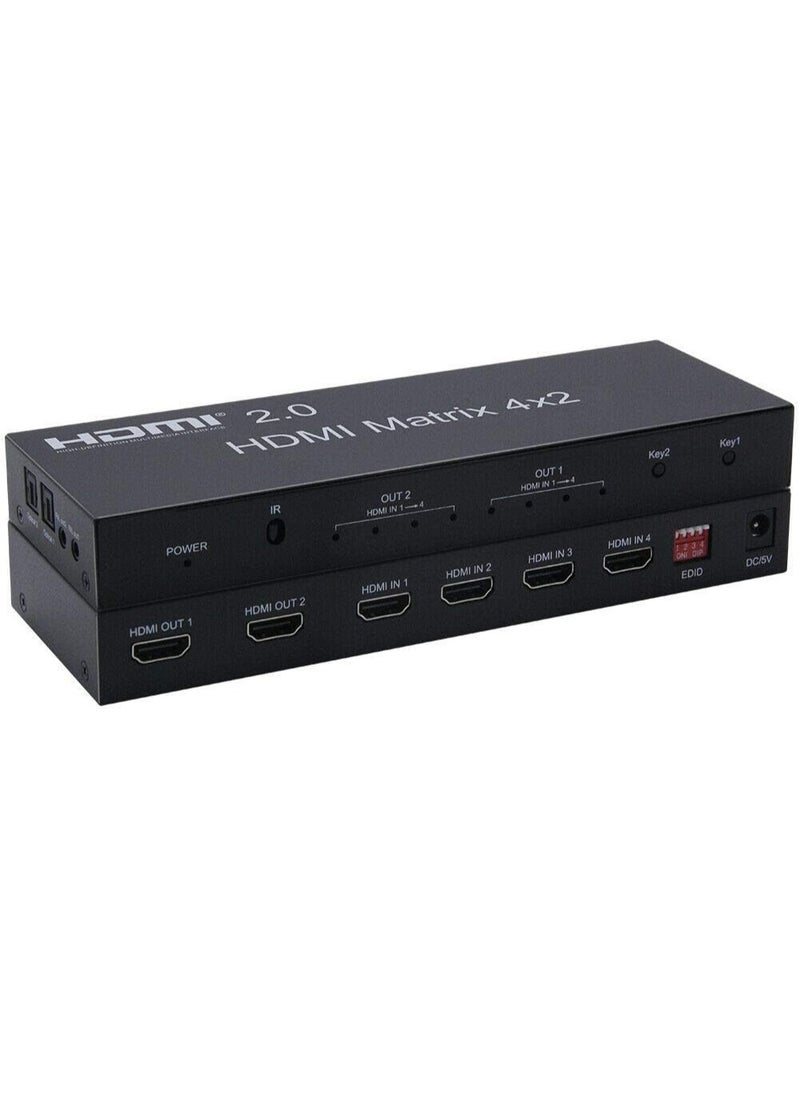

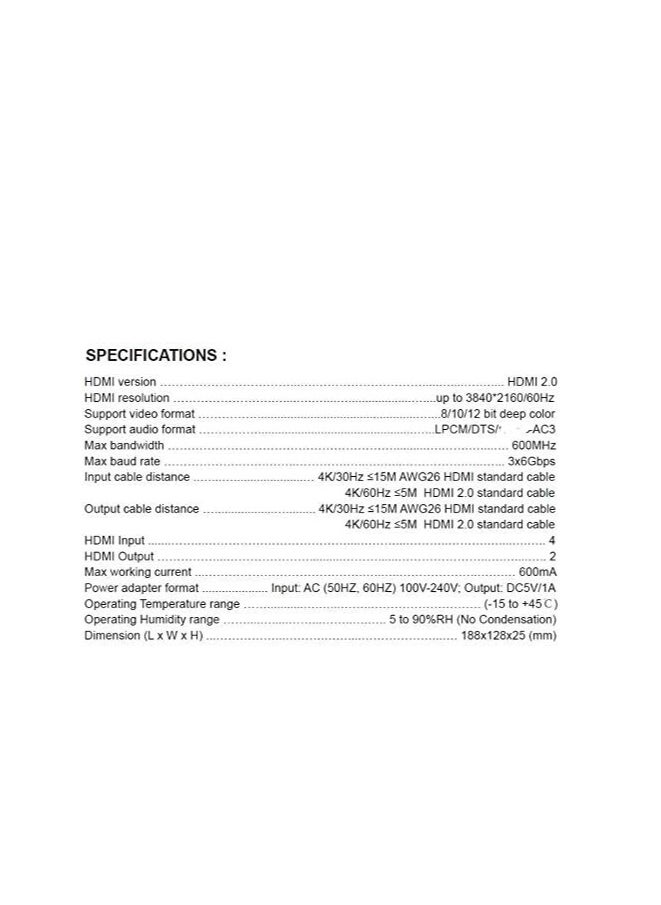

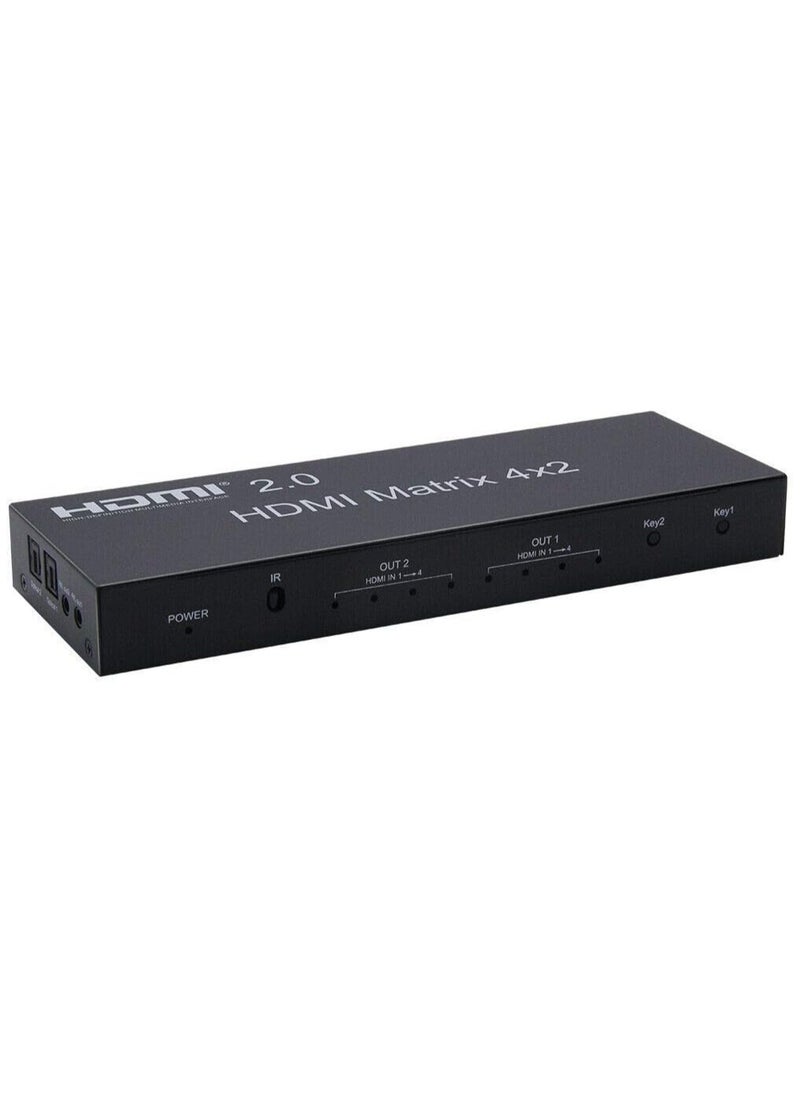

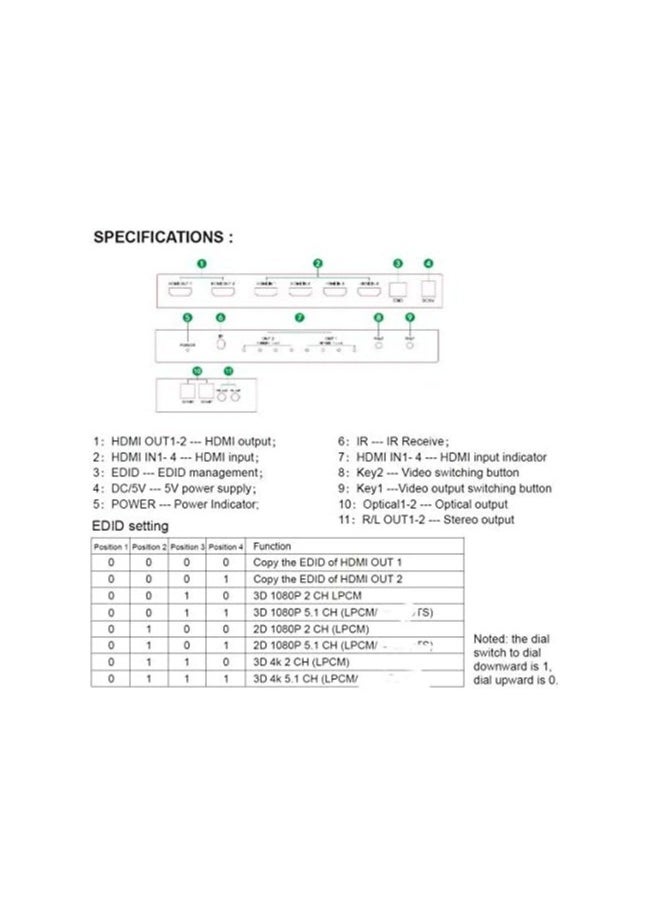

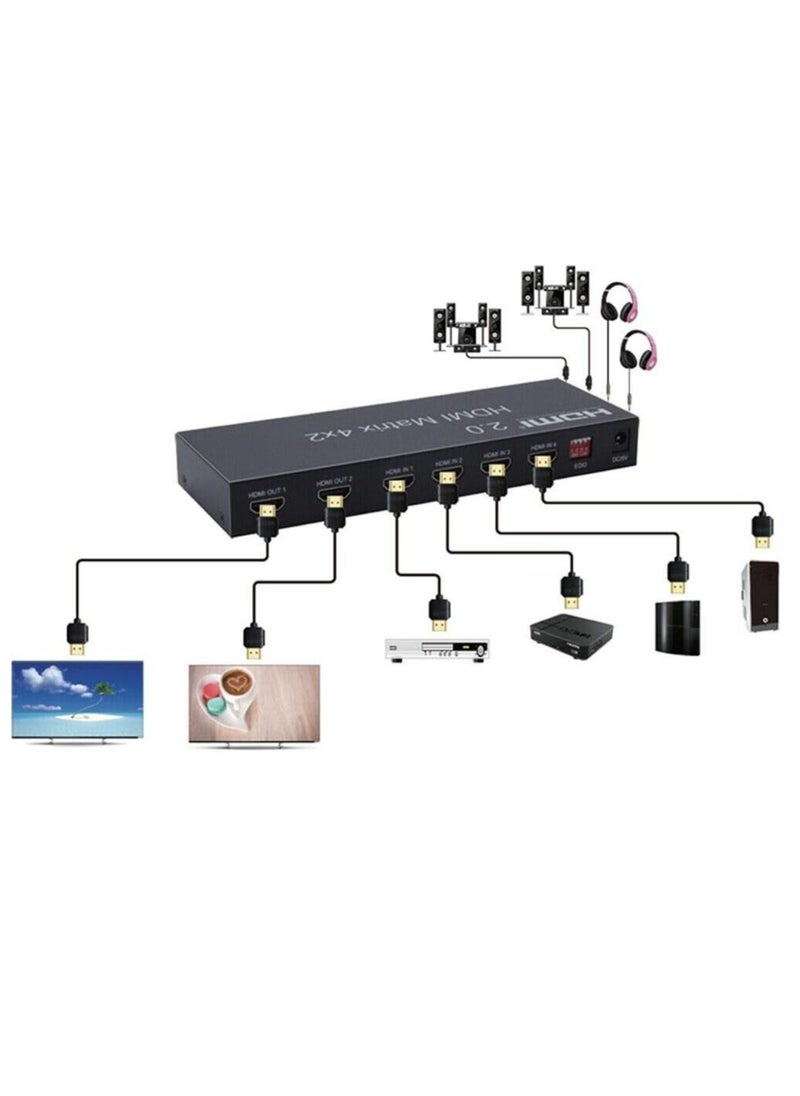

OverviewHDMI 2.0 Matrix Scaler 4x2 4K 60Hz HDMI EDID Switch Splitter Matrix Support Dual Audio Output by Optical HDMI and Stereo HDMI 2.0/3D/4K Topo 4X2 HDMI Matrix can switch between 4 input source devices and distribute signals to 2 displays (two displays can display the same image or different images), and any output. The ports can be independently output with audio via optical SPDIF port or 3.5mm audio jack. Features & Specifications: HDMI Version: HDMI2.0 (downward compatible) HDCP Version: HDCP 2.2 (downward compatible) Resolution: Up to 3840x2160/60Hz (RGB/YUV 4:4:4) (downward compatible) Audio Format Supported: LPCM/DTS/Dolby-AC3 Video Format Supported: 8/10/12 Color Depth Maximum Transmission Bandwidth: 600MHz Maximum Transmission Rate: 3x6Gbps HDMI Input Port: 4 HDMI Output Port: 2 SPDIF Optical: 2 3.5mm Jack: 2 Input Cable Length: 1080P ≤ 15m; 4K@30Hz ≤ 10m, Standard HDMI cable, 4k@60Hz ≤ 5m AWG26 Standard HDMI 2.0 cable Output cable length: 1080P ≤ 15m; 4k@30Hz ≤ 10m Standard HDMI cable, 4k@60Hz ≤ 5m AWG26 Standard HDMI 2.0 cable Operation and connection 1. Connect each HDMI source device and HDMI matrix input with an HDMI cable. 2. Connect the display devices and HDMI matrix output with an HDMI cable. 3. Connect the audio output and stereo amplifier to a stereo headphone or fiber. 4. Connect the 5V power supply to the 4x2 HDMI matrix. 5. Use the infrared remote control or control button to switch the signal source freely. Note: The HDMI port and audio ports are connected according to user needs, not all of them are connected; but not reversed. Package Contents: HDMI 2.0 Matrix 4X2 x 1pcs IR Remote Control x 1 (Battery not included) 5V Power Adapter
