Load Cell 40Kg Weight Sensor - Strain Gauge

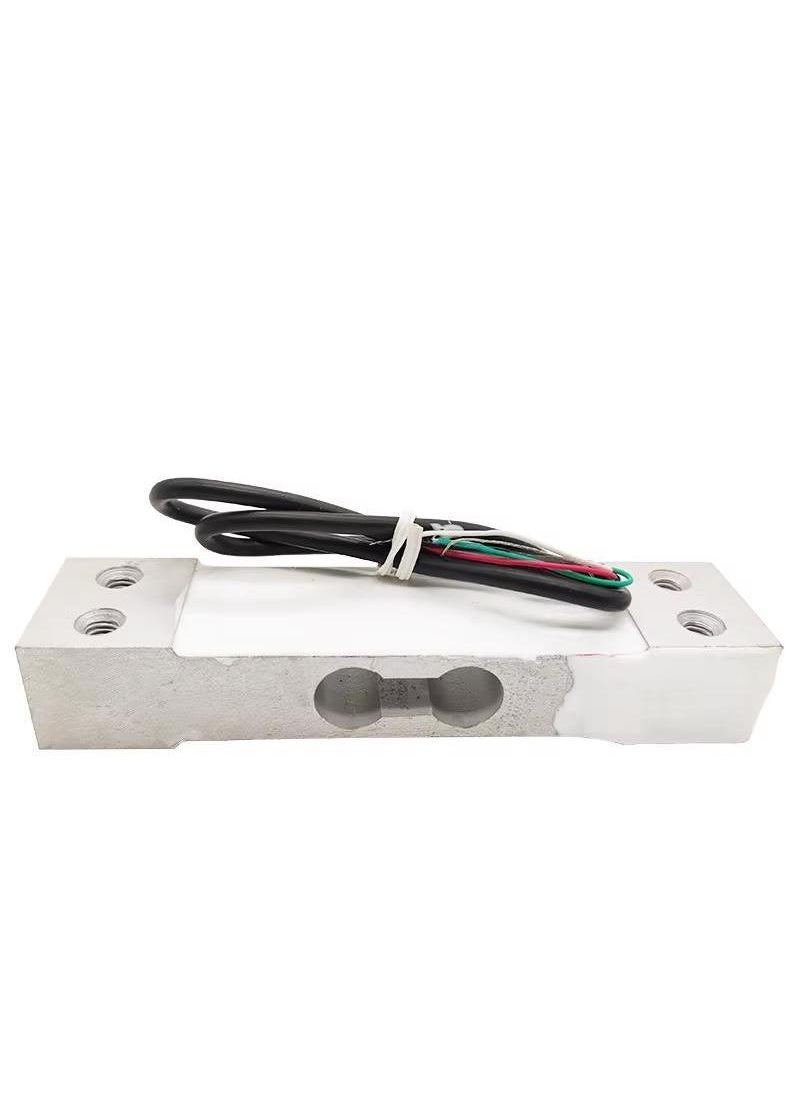

Each straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 40kg. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation.

The load cell acts like a bridge, it has 4 colored wires as follows

• VCC: Red wire
• GND: Black wire
• Signal +: Green wire
• Signal -: White wire

Specifications:

• Capacity: 40kg
• Output: mV/V
• Excitation voltage: 5-15V DC
• Operating temperature: -10°C to 40°C
• Protection class: IP65
