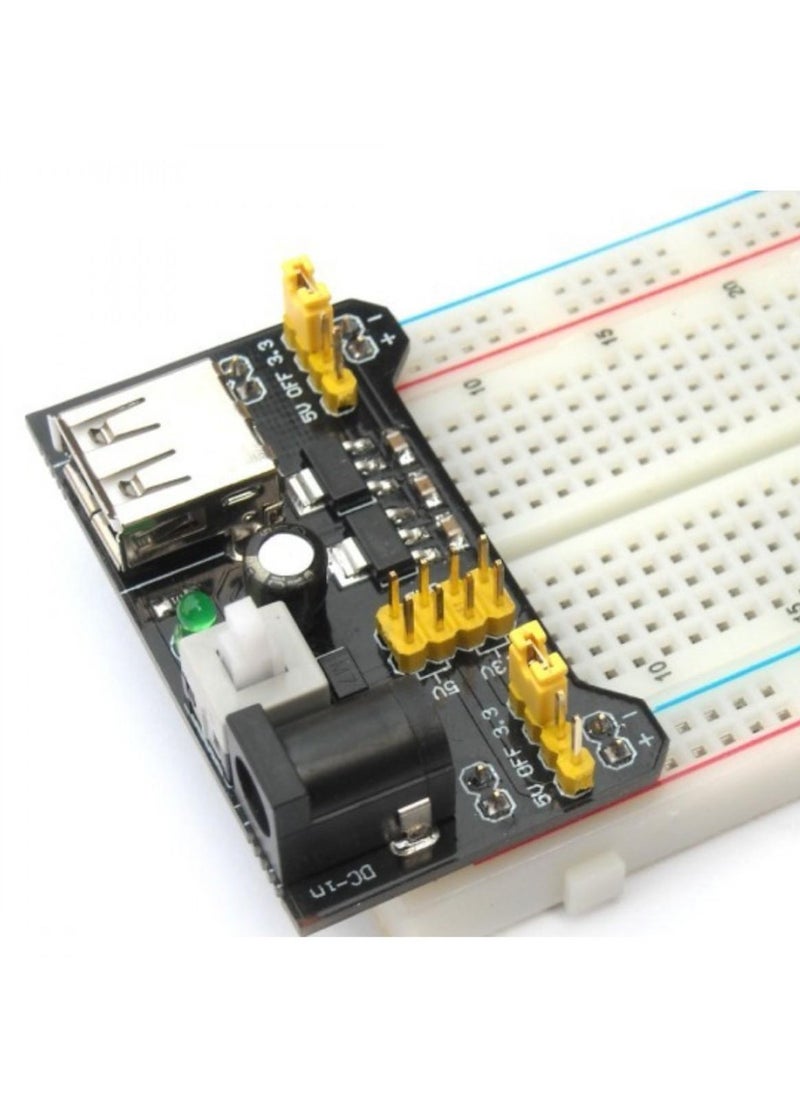

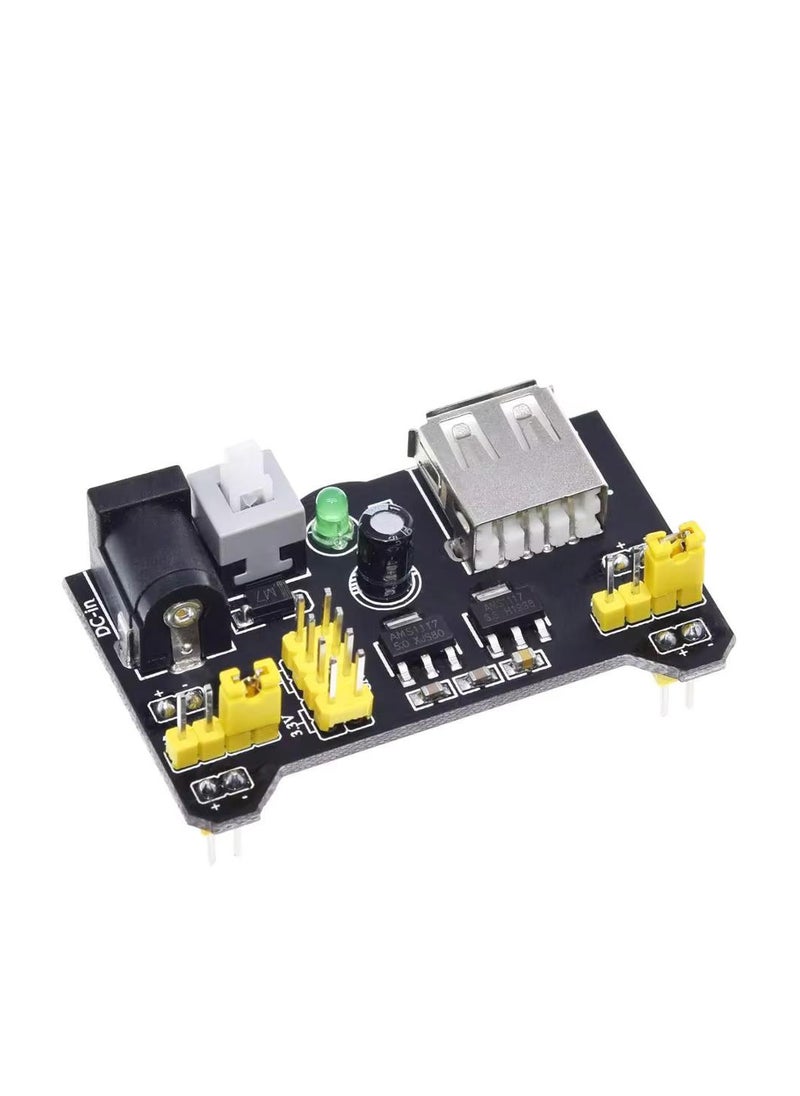

Highlights- Breadboard power supply module, with 5 V, 3.3 V output voltages
- Apply to any Standard breadboard
- Input voltage: 6.5-12 V (DC) or 5V USB power supply
- Output voltage: 3.3V and 5V can switch over
- Maximum output current: <700 mA
- Input voltage ON/OFF switch
- Independent control of upper and Lower Bread Board Power Rails. Can switch over to 0 V, 3.3 V, and 5 V using jumpers on any rail
- On-board two groups of 3.3V, 5V DC output plug pin, convenient external lead use
OverviewConnectors:
1x Barrel 5mm Connector (center +ve) for Input Power
1x USB connector for 5V input or 5V output
4x 2Pin Headers pointing downward for 3.3V or 5V output (to get output using flying wires)
1x 2×4 Header for 3.3V and 5V output
2x 1×4 selection jumper for 3.3V/OFF/5V
Please note:
The board is not protected against short circuit of output - short circuit damage the module.
This item only comes with a Power Supply Module, The Breadboard is not included.
