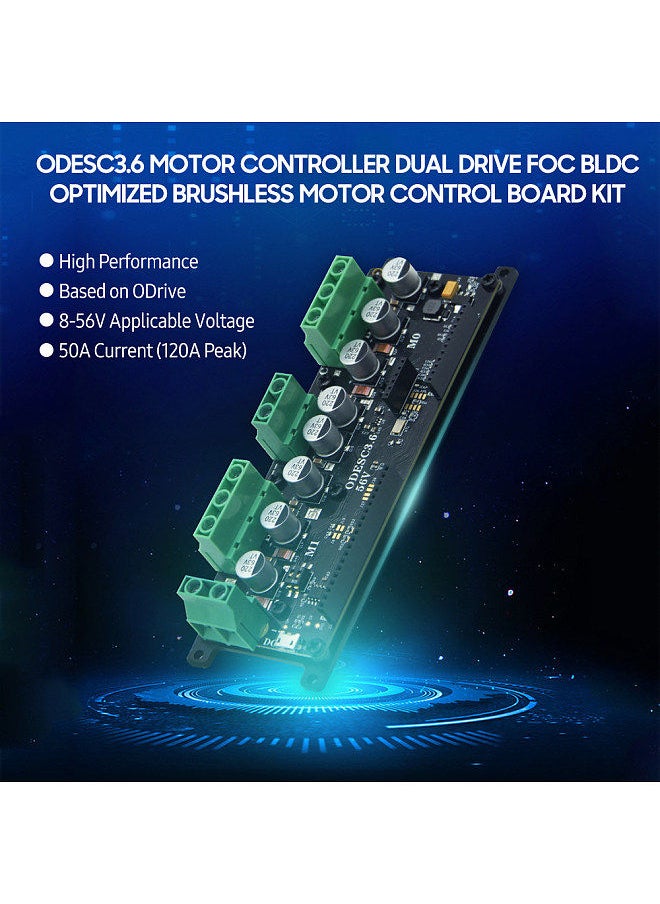

Highlights- This dual-drive brushless motor controller is based on ODrive, it features 8-56V applicable voltage and optimized high performance.
- Mainly used for smart robot, large robotic arm, precision 3D printer, printing machine, electric surfboard, electric skateboard and so on.
- Safe to use, with programmable voltage protection to prevent excessive battery discharge.
- Multiple modes satisfy different needs-- speed mode, torque mode, current mode, position mode, trajectory mode, etc..

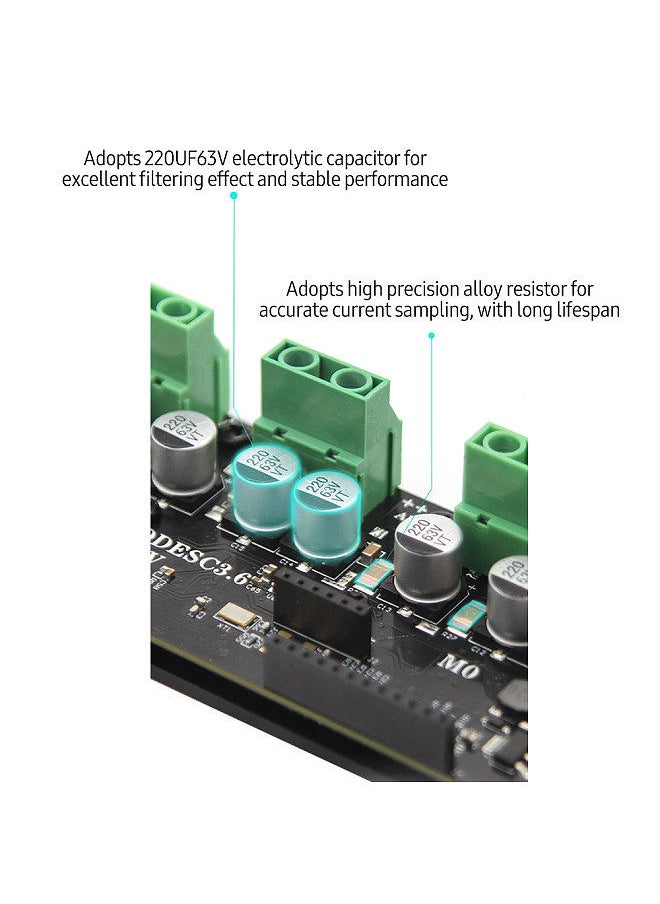

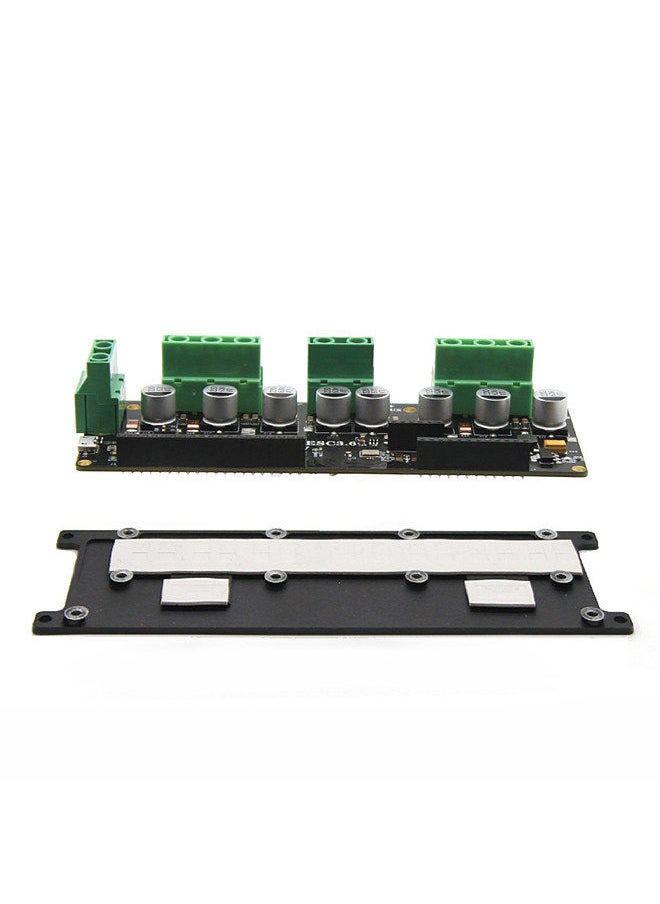

- PCB integrated high current skylight, tin column, CNC customized heat sink, continuous and stable current, rapid heat dissipation to prolong service life.
OverviewSpecifications:
Main Color: Black & Green
Main Material: ABS + PCB
Hardware Version: ODESC3.6 Dual Drive
PCB: 4 Layers (4 x 2oz)
Applicable Voltage: 8-56V
Current: 50A Continuous (120A Peak)
Support Encoder: Compatible with Incremental Encoder, Absolute Encoder, Hall Sensor, AMT102, AMT103, TLB5012, AS5047
Communication Interface: Compatible with USB -- Open Source Protocol (PC, Raspberry Pi, ROS), UART (Embedded Device), PWM (RC Remote Controller), STEP/DIRECTION (PLC), GPIO, CAN, ANALOG INPUT
Item Size: 155 * 50 * 30mm / 6.10 * 1.97 * 1.18in
Item Weight: 164g / 5.76oz
Package Size: 19.5 * 12.5 * 3cm / 7.68 * 4.92 * 1.18in
Package Weight: 264g / 9.29oz
