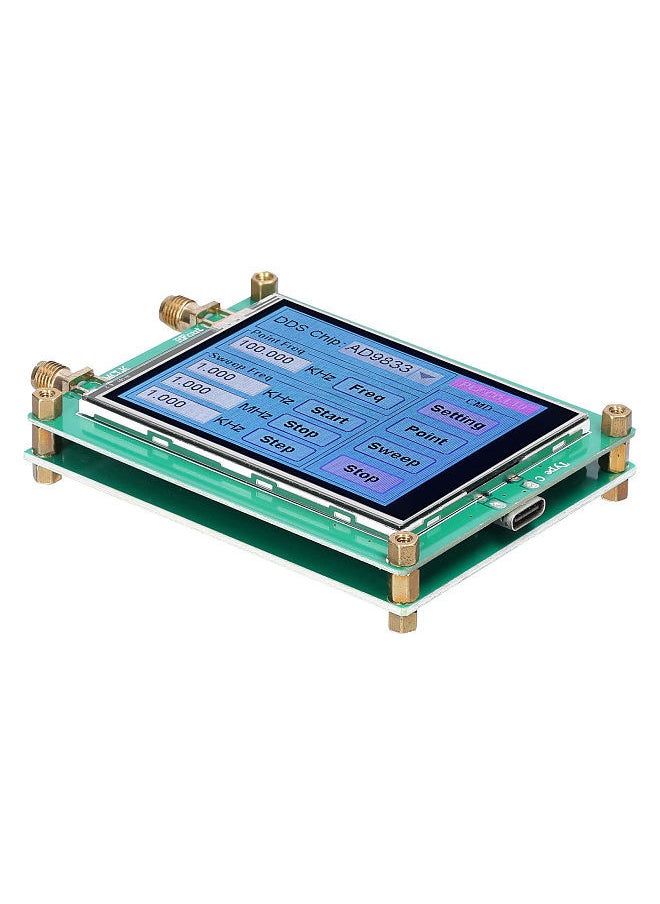

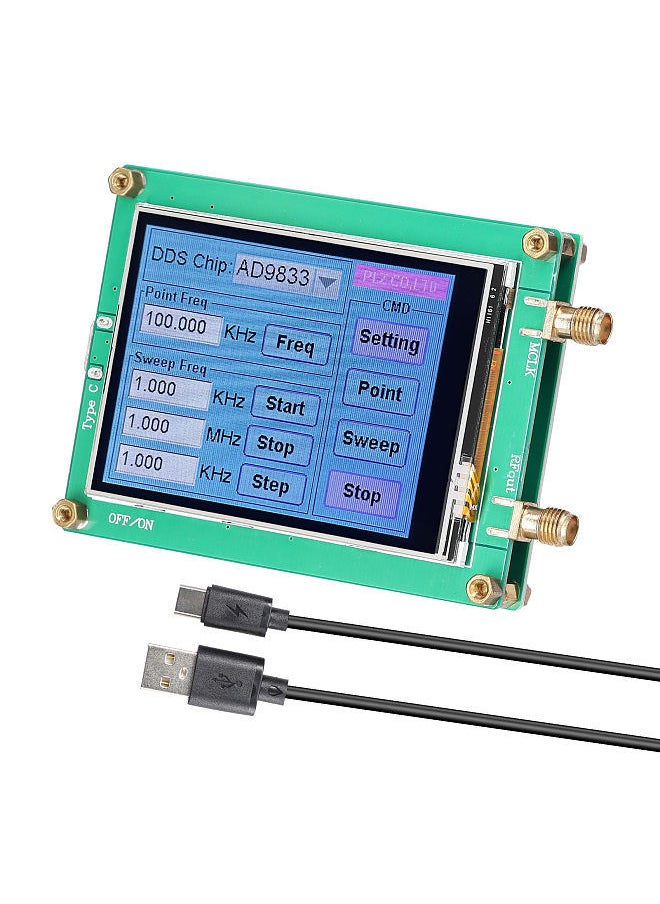

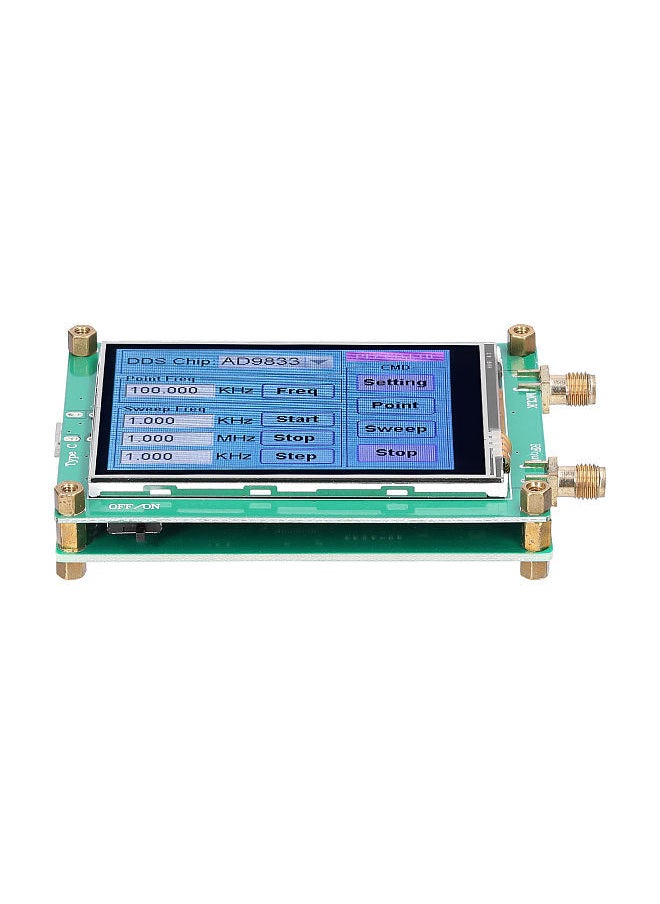

Touching Screen DDS Module Signal-Generator 10Bit DAC Sinewave Squarewave Triangularwave Signal Generator Module

Highlights

• The module is powered by 5V Type-C, the user can select the desired chip, set the desired point frequency, sweeping starts frequency, sweeping stop frequency, and the sweeping-step frequency.
• You can set the clock reference frequency and change the output waveform signal. When connecting to an external clock, you need to input the corresponding external clock frequency.
• In Waveform, you can output Sine (sinewave) signal, Square (squarewave) signal, Triangular (triangularwave) Signal.

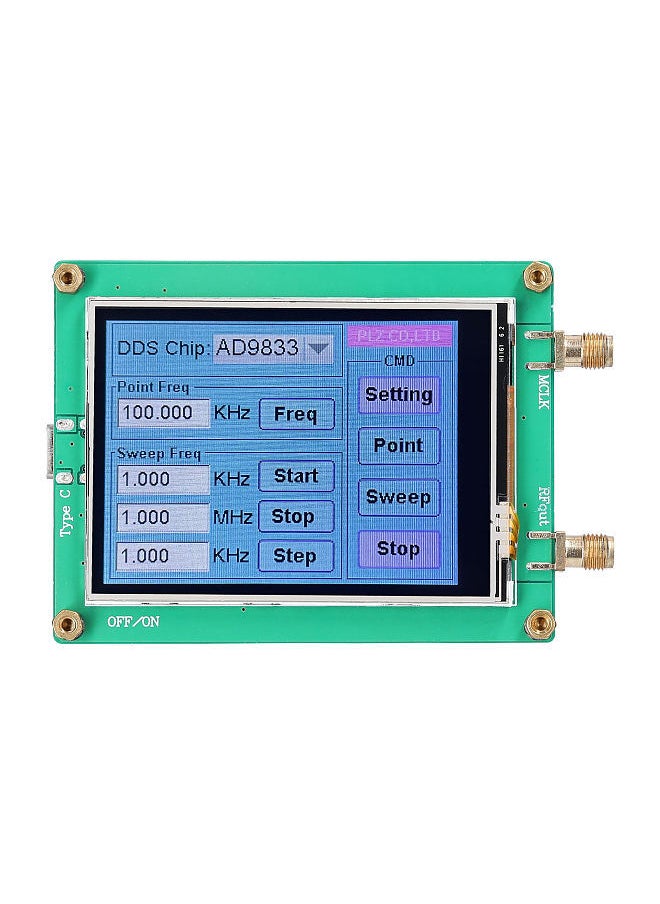

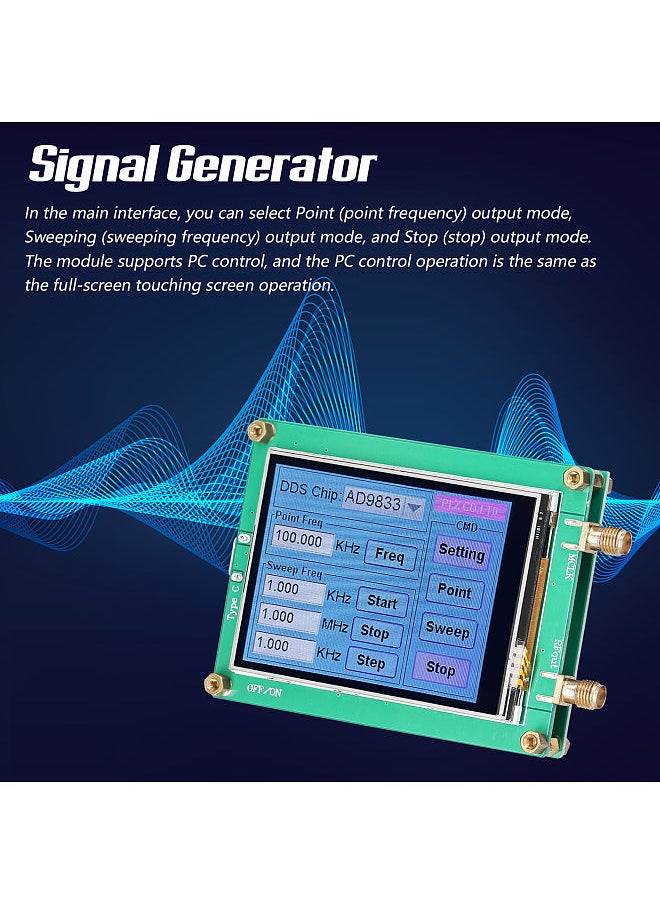

• In the main interface, you can select Point (point frequency) output mode, Sweeping (sweeping frequency) output mode, and Stop (stop) output mode.
• The module supports PC control, and the PC control operation is the same as the full-screen touching screen operation.
