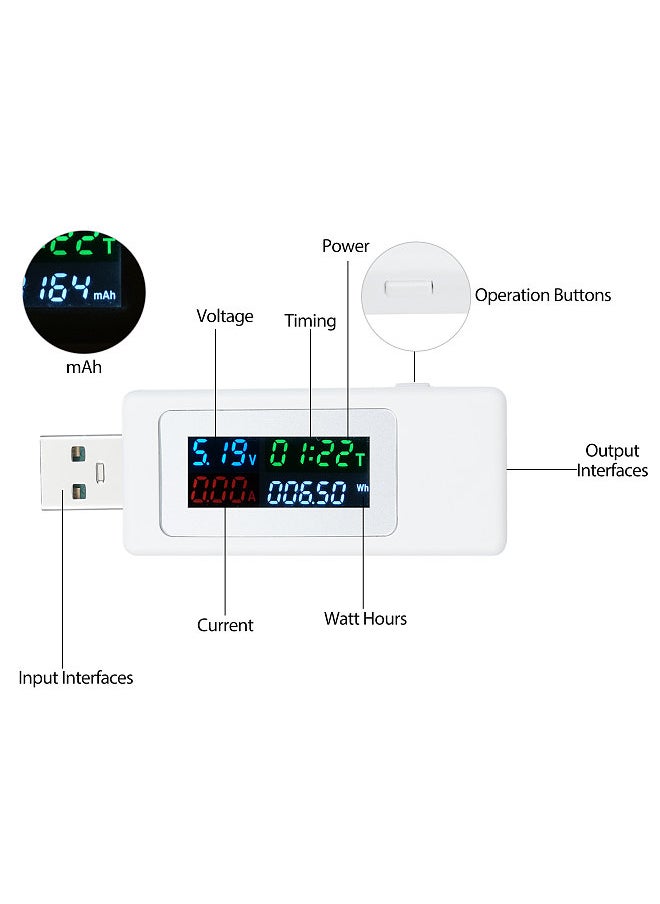

Highlights- Size: 60*26mm; USB:QC fast charging; Voltage range: 4-30V; Current range: 0~6.5A; Whether to support timing test: 0~990H; Battery capacity test: 0~99999mAH; Power: 0-195W; Other functions: automatically save data when power off.
- 1. Safe charging, real-time control of charging data. 2. Accurate range, high precision, stable and reliable performance, strong anti-interference ability. 3. 4. The USB power meter has a power-off storage function, which is convenient for viewing.
- Instruction 1. The input end is connected to the USB output port of the charger; 2. The output end is connected to the USB port of the data cable; 3. Press and hold the reset button on the side for 3 seconds and the screen will be cleared.

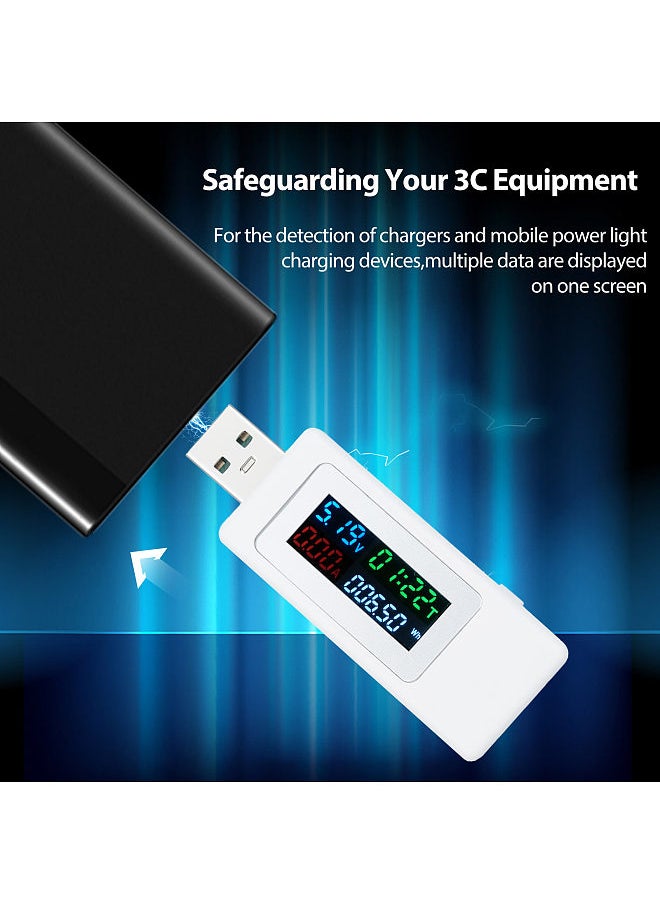

- The USB tester is small in size and can detect USB charger output voltage and current just by plugging it in
- NOTE: Please pay attention to its screen orientation when plugging in the USB tester. If the display will be at an invisible angle when plugged into a charging source, you can use a USB extension cable.
OverviewSpecifications:
Model: KWS-V30
Material: ABS
Color: White
Voltage: DC4-30V
Current: 0-6.5A
Minimum Test Current: 0.02A
Timing: 0-990 hours
Power: 0-195W
Milliampere-Hour: 0-99999Mah
Watt-Hour: 0-195W
Item Size: 60 * 26 * 13mm / 2.36 * 1.02 * 0.51in
Item Weight: 18g / 0.63oz
Package Weight: 20g / 0.71oz
Package Size: 11.5 * 7 * 2cm / 4.53 * 2.75 * 0.78in
