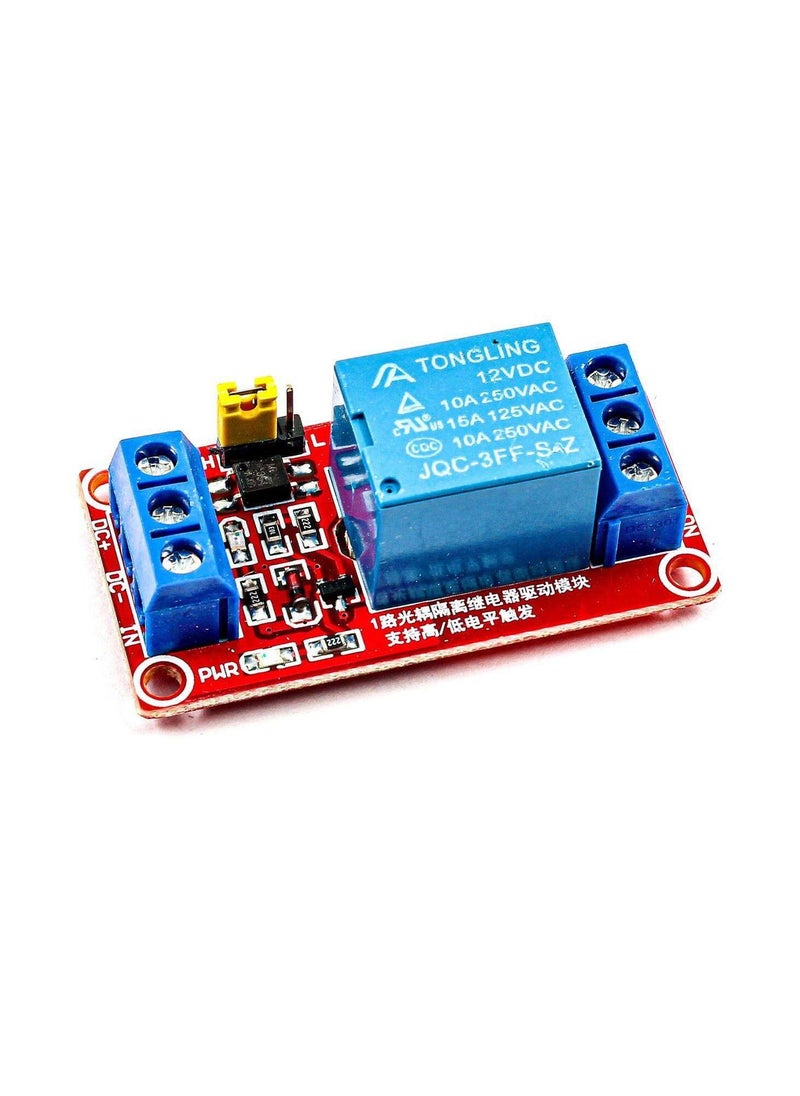

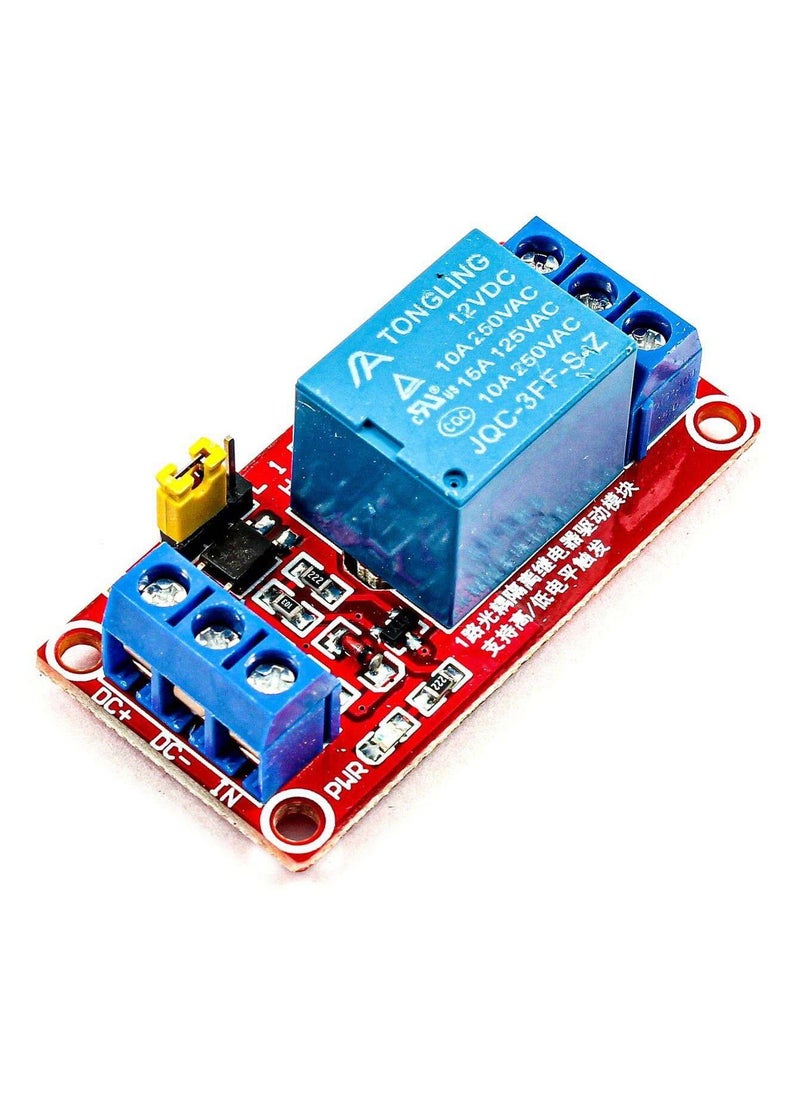

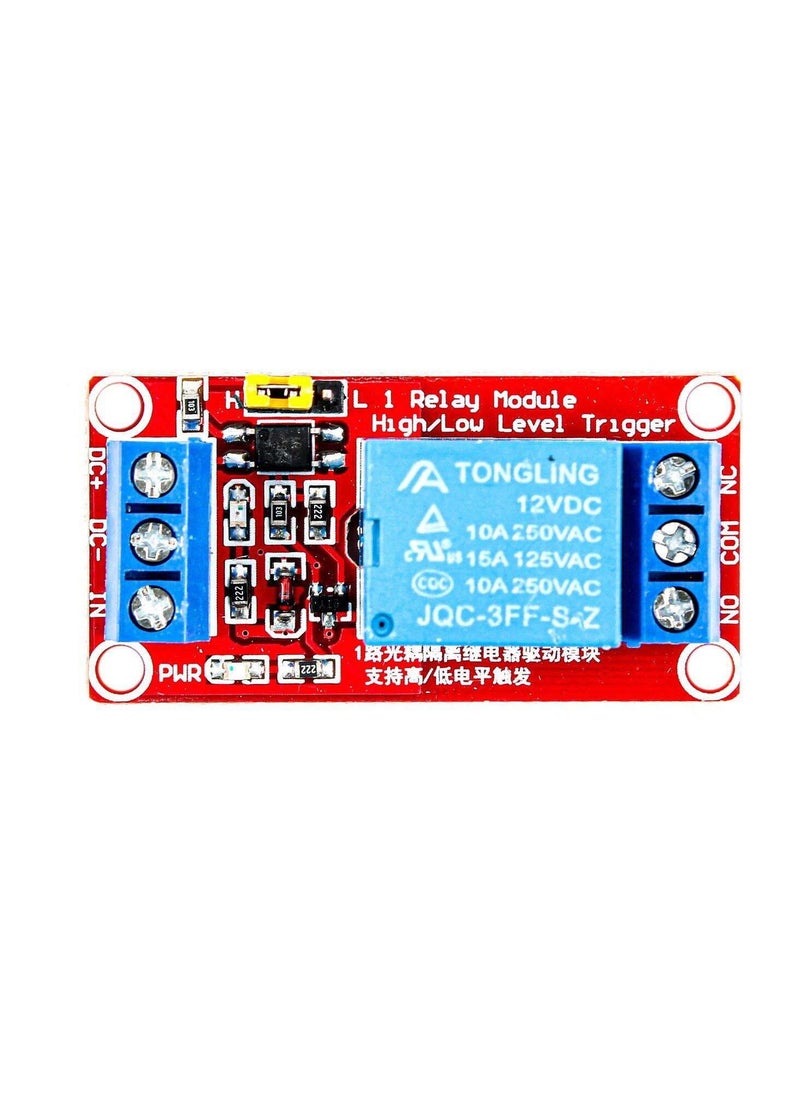

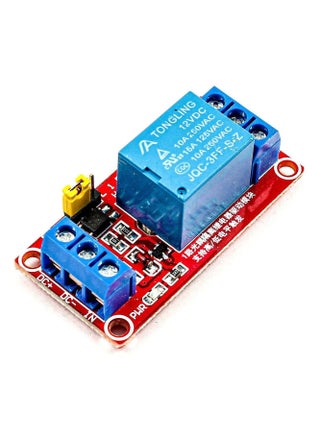

Relay Module (1 Channel) 12V with High/Low Level Trigger Selector

Highlights

• Normally open and Normally closed.

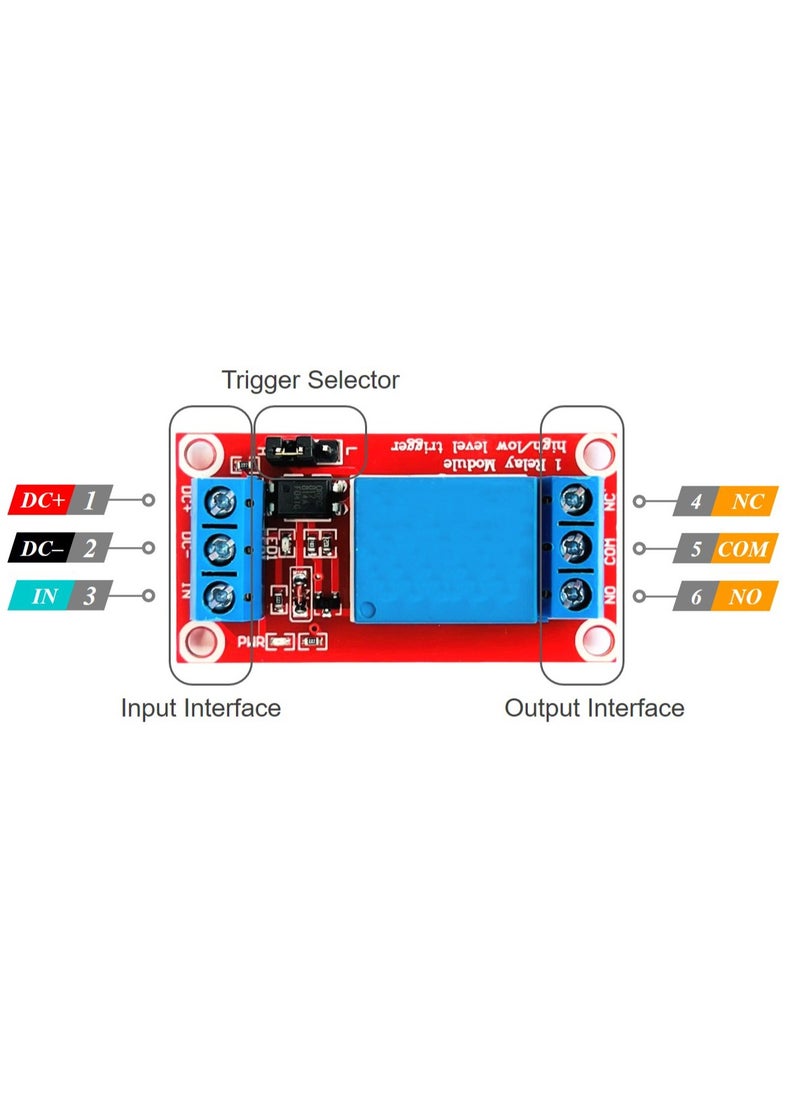

• High-level trigger or low-Level trigger selection by a jumper.
• Optocoupler isolation.
• Terminal blocks for both input and output.
• Two LED indicators: power (green LED), the relay status (red LED).
• Fault-tolerant design, even if the control line is broken, the relay will not operate.
• Low-Level Trigger Voltage: 0V ~ 1.5V /// Control voltage : 12V.
• High-Level Trigger Voltage: 3V ~ 5V /// Trigger current: 3mA ~ 5mA.
• Maximum load: AC 250V/10A, DC 30V/10A
• Dimension: 50mm x 26mm x 18.5mm (Lx Wx H).
