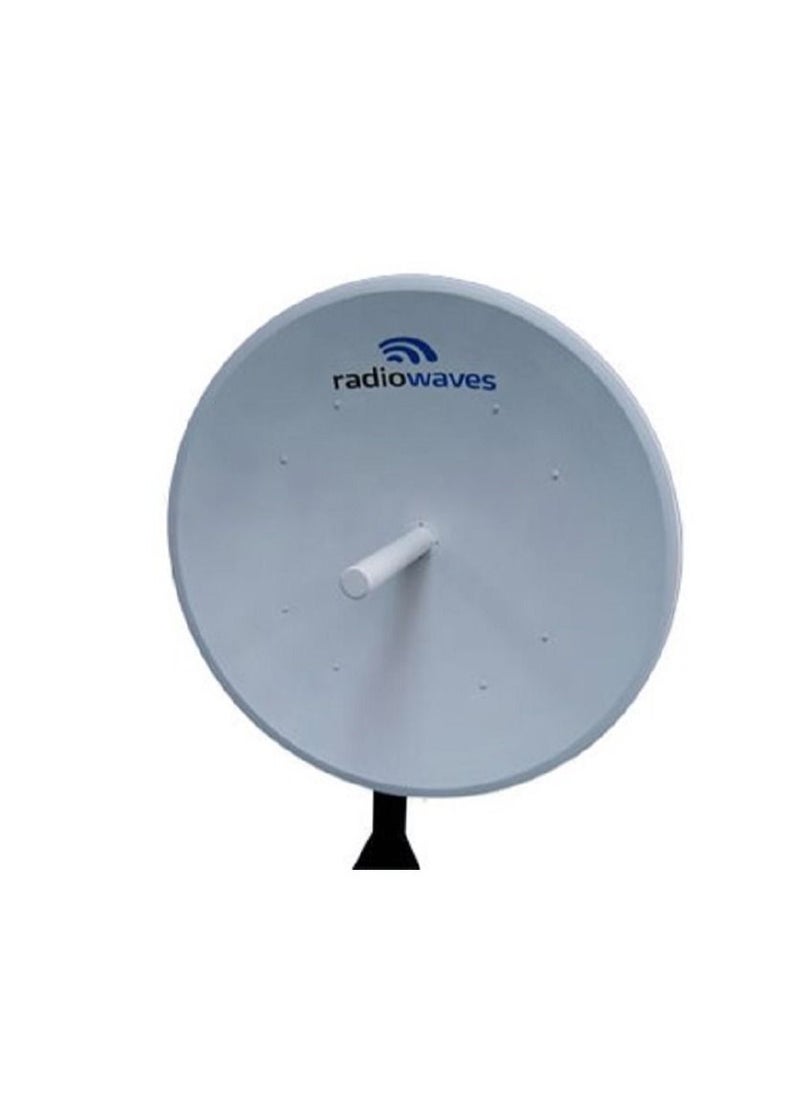

1.2 m | 4 ft Standard Performance Parabolic Reflector Antenna, Dual-polarized, 5.25-5.85GHz

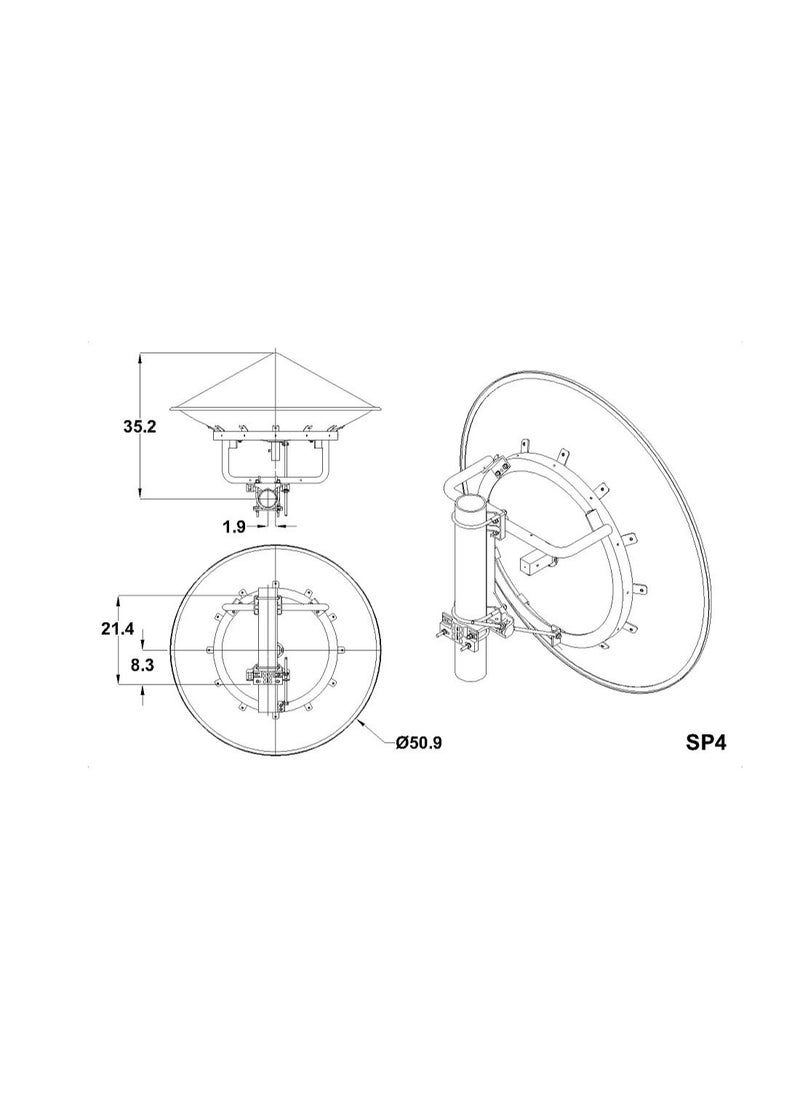

OverviewThe SP Standard Performance Series by RadioWaves offers a full line of cost effective standard performance parabolic antennas engineered to deliver reliable radio links. Designed for both unlicensed and licensed band applications, RadioWaves field-proven pre-assembled SP antennas and robust pole-mounts ensure “set and forget” installation with minimal post-installation maintenance. If it’s rugged, it must be RadioWaves! FEATURES AND BENEFITS • Standard Performance Parabolic Antennas – Excellent performance for a wide range of licensed and unlicensed applications • Fully Preassembled at the Factory – Simplifies installation on site and guarantees “factory-tested” quality • Antenna Type Standard Performance Parabolic Reflector Antenna • Size, nominal 4 ft | 1.2 m • Polarization Dual Electrical Specifications • Operating Frequency Band 5.25 - 5.85 GHz • Half Power Beamwidth, Horizontal 3.1 degrees • Half Power Beamwidth, Vertical 3.1 degrees • Cross-Polarization Discrimination 30 dB • Front to Back Ratio (F/B) 44 dB • Gain, Low Frequency 34.4 dBi • Gain, Mid Frequency 34.9 dBi • Gain, High Frequency 35.4 dBi • VSWR 1.5:1 • Return Loss -14 dB Mechanical Specifications • Fine Azimuth Adjustment +/- 10 degrees • Fine Elevation Adjustment +/- 25 degrees • Mounting Pipe Diameter, Min 4.5 inch | 11.4 cm • Mounting Pipe Diameter, Max 4.5 inch | 11.4 cm • Net Weight 60 lbs | 27 kg 80 lbs • Wind Velocity Operational 90 mph | 145 km/h • Wind Velocity Survival Rating 125 mph | 201 km/h • Mechanical Configuration SP4 • Axial Force (FA) 855 lbs | 3803 N 469 lbs | 2087 Nm with RD radome Side Force (FS) • 45 lbs | 200 N 93 lbs | 414 Nm with RD radome • Twisting Moment (MT) 1120 ft-lbs | 1518 Nm 784 lbs | 1063 Nm with RD radome • Operating Temperature Range-40 to +60 C • Max Pressure, PSIG, (if waveguide interface)5 Shipping Information • Package Type Wood Crate • Gross Weight 126 lbs | 57.15 kg • Dimensions, L x W x H • 59 x 19 x 60in | 150 x 48 x 152 cm • Shipping Volume • 38.92 cu ft | 1.1 cu m
